Center Console

Operation number: 88232-2

Center console

Removal

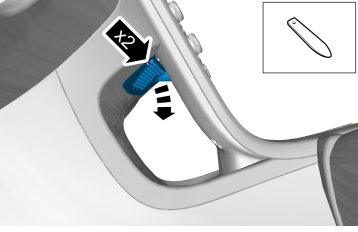

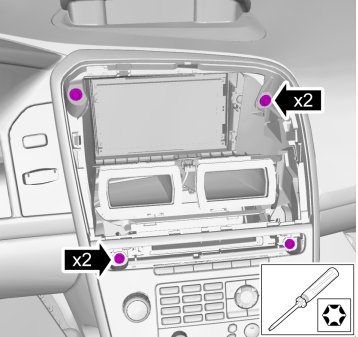

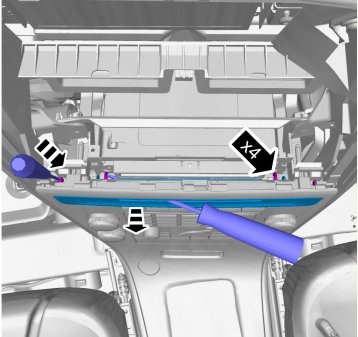

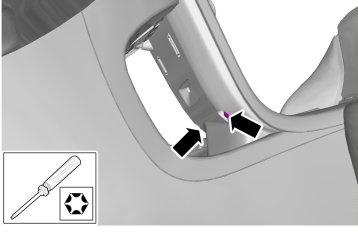

Vehicles early version





























Caution! Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

Caution! The number of connectors, cables and cable ties may vary depending on the vehicle specification.

Note! Make sure that the selector lever is in the neutral (N) position.

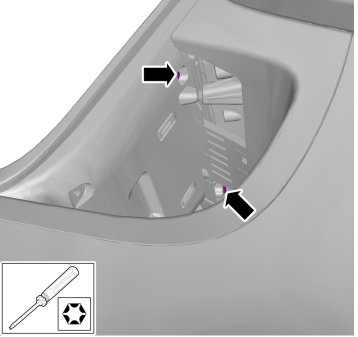

Remove the following items:
- Climate control module (CCM) Refer to: Climate control module (CCM) Service and Repair
- Temperature sensor passenger compartment Refer to: Temperature sensor passenger compartment Service and Repair

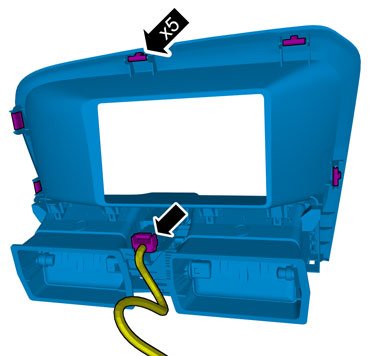

- Information and Entertainment Display

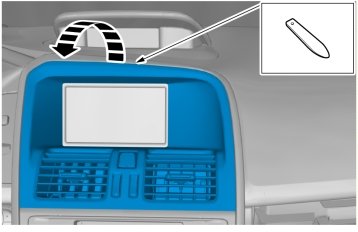

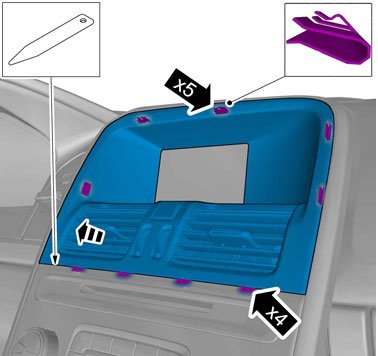

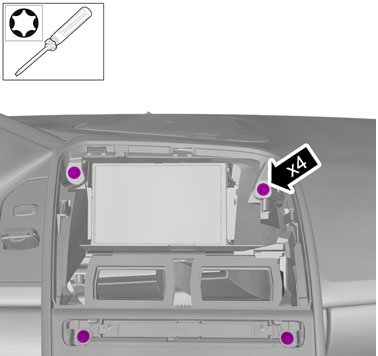

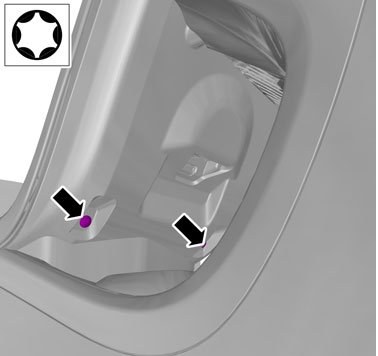

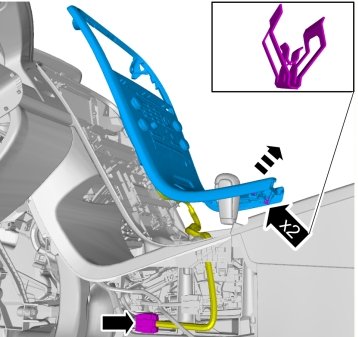

Vehicles late version

























Remove the following items:
- Climate control module (CCM) Refer to: Climate control module (CCM) Service and Repair
- Temperature sensor passenger compartment Refer to: Temperature sensor passenger compartment Service and Repair

Installation

To install, reverse the removal procedure.
