Rear Bushing Subframe Front

Operation number: 21824-2

Rear bushing subframe front

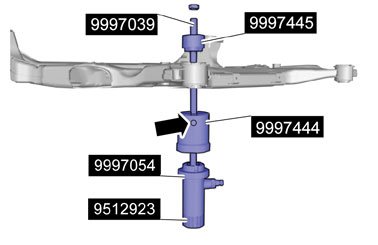

Removal

Remove the subframe front Refer to: Front subframe, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Service and Repair

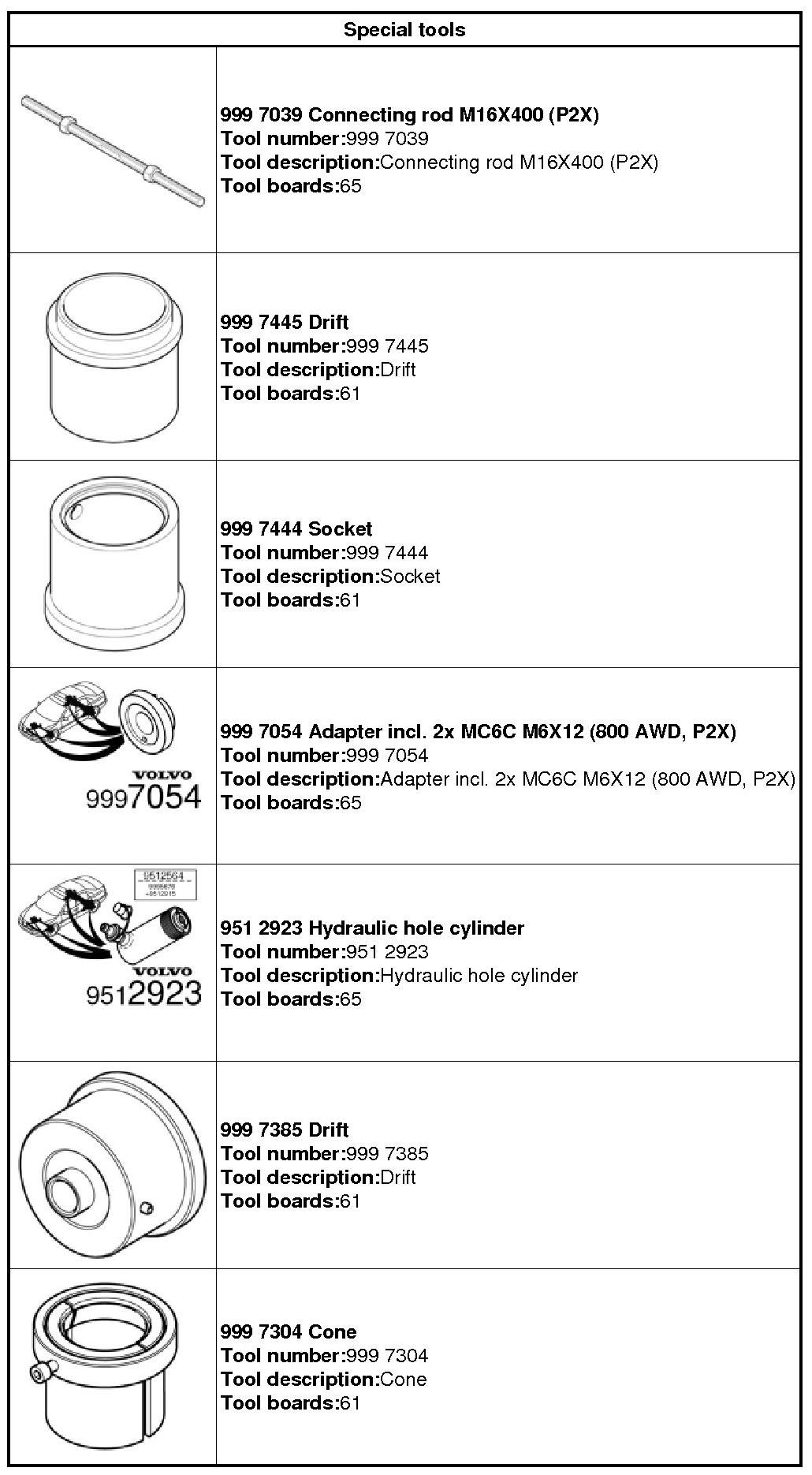

999 7039 Connecting rod M16X360 999 7039 Connecting rod M16X360 999 7445 Drift 999 7445 Drift 999 7444 Socket 999 7444 Socket 999 7054 Adapter incl. 2x MC6C M6X12 999 7054 Adapter incl. 2x MC6C M6X12 951 2923 Hydraulic hole cylinder 951 2923 Hydraulic hole cylinder

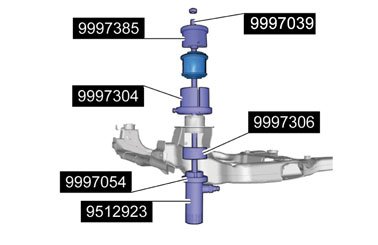

Installation

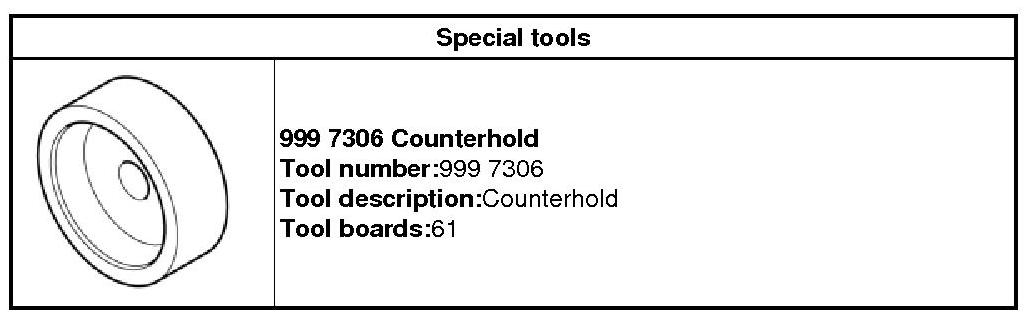

999 7385 Drift 999 7385 Drift 999 7039 Connecting rod M16X360 999 7039 Connecting rod M16X360 999 7304 Cone 999 7304 Cone 999 7306 Counterhold 999 7306 Counterhold 999 7054 Adapter incl. 2x MC6C M6X12 999 7054 Adapter incl. 2x MC6C M6X12 951 2923 Hydraulic hole cylinder 951 2923 Hydraulic hole cylinder













To install, reverse the removal procedure.
