Body - Noise When Closing Or Cleaning The Hood

Technical Journal

TITLE:
Noise may appear when closing or cleaning the engine
compartment hood

CAR MARKET:
United States and Canada

ISSUING DEPARTMENT:
Technical Service

REF NO:
TJ 26821

ISSUE DATE:

YEAR
2013

MONTH
01

DAY
09

PARTNER:
3 US 7510 Volvo Cars North America

FUNC DESC:
Bonnet; cover

FUNC GROUP:
8211

"Fixed Right - First Time"





Attachment

Vehicle Type

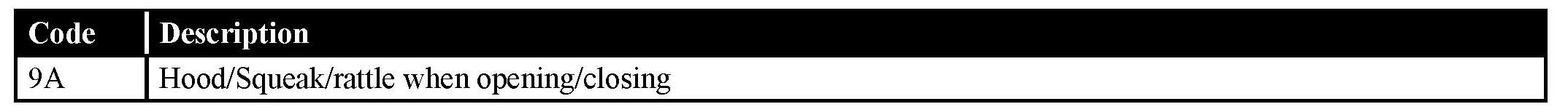

CSC Customer Symptom Codes

Text

CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code

Note! If using a printed copy of this Technical Journal, first check for the latest online version.

DESCRIPTION:

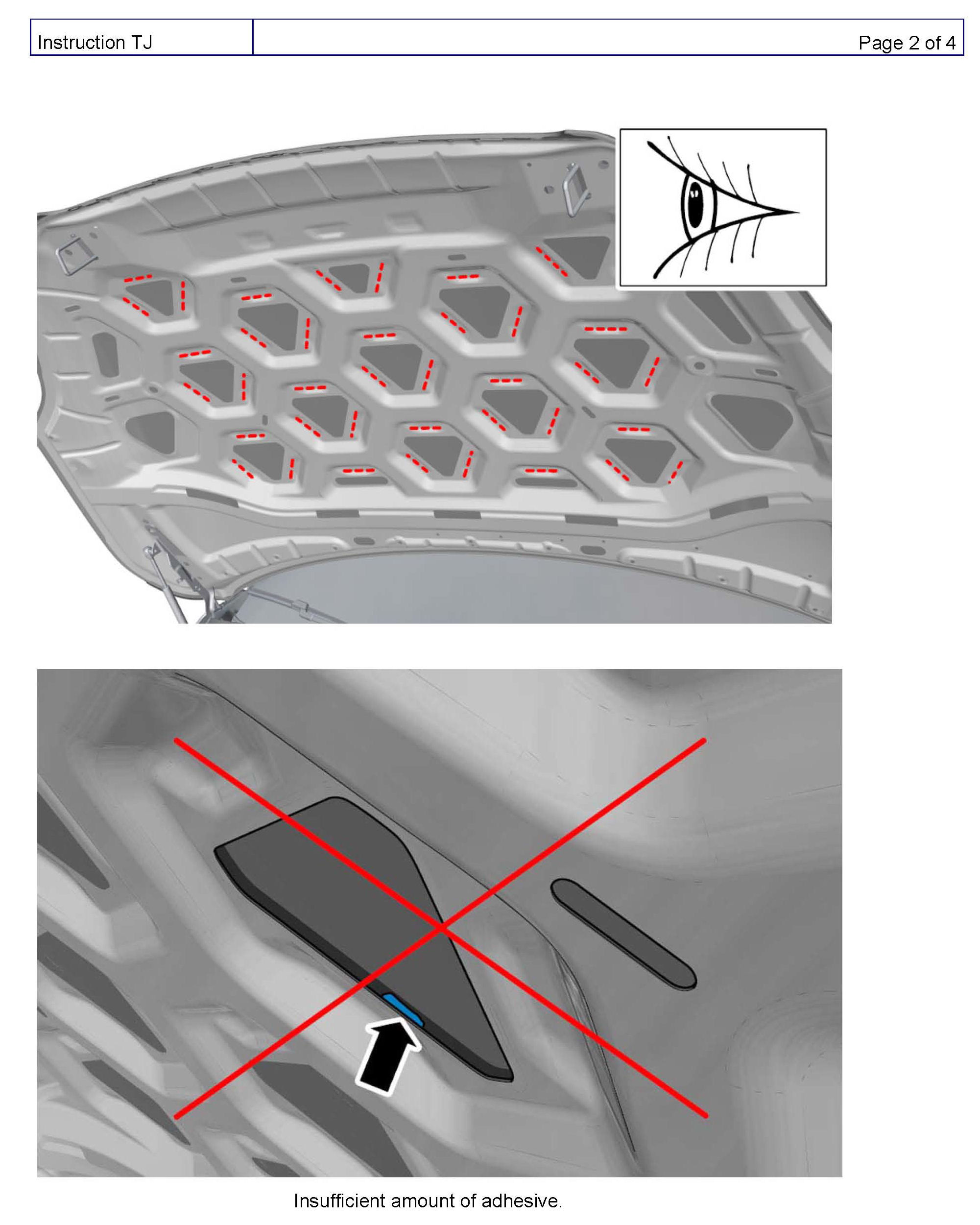

Because of an insufficient glue process of the hood inner support towards the hood outer sheet metal, a metallic noise may become audible when closing or cleaning the hood.

SERVICE:
In case of customer complaints, follow the attached repair instruction.

NOTE:

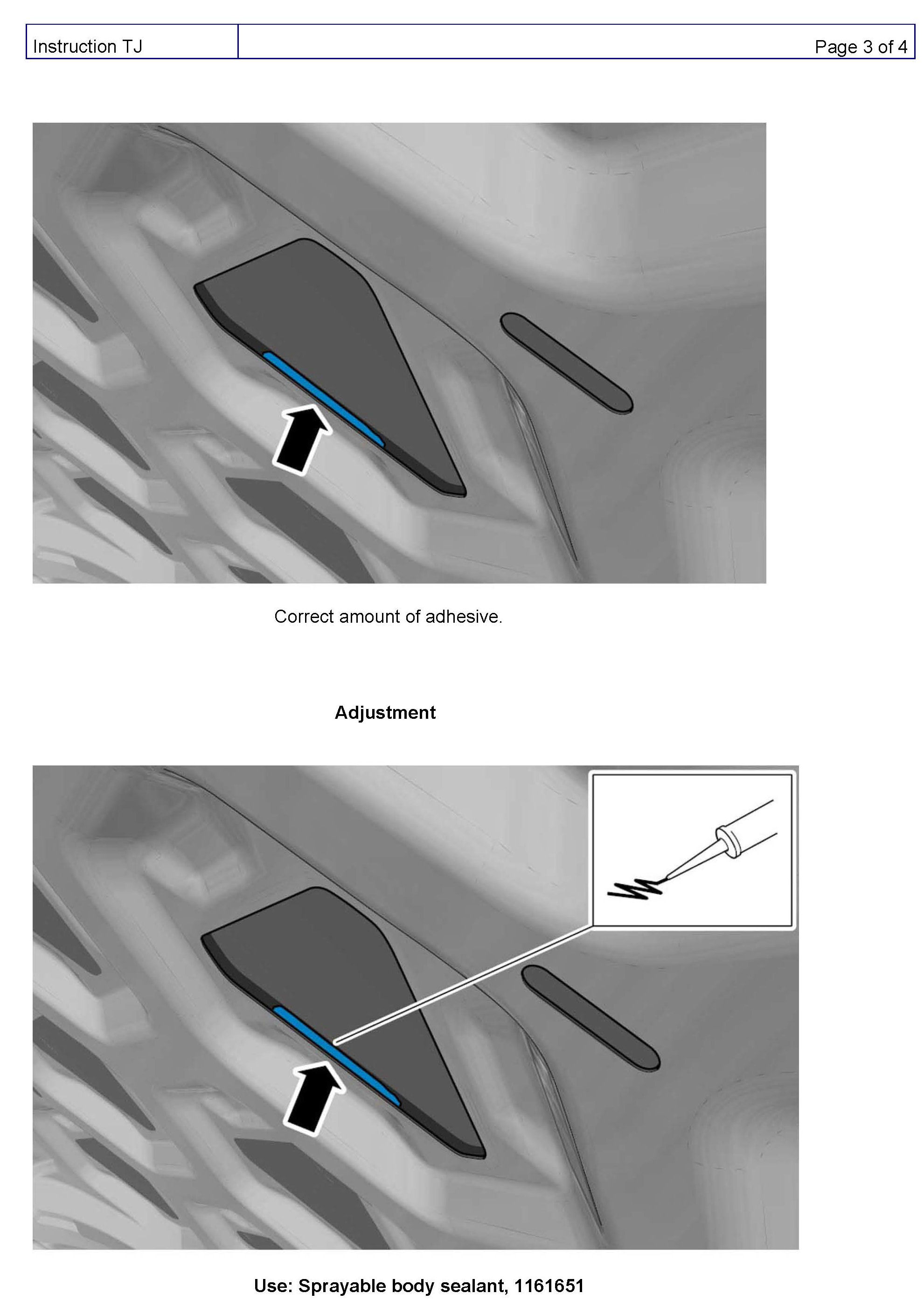

Be advised to use a handheld glue gun/pistol to apply the glue.

VOLVO STANDARD TIMES GUIDE (VSTG) INFO:
Operation number *98432-2* - **Check operation** - "0.3 hrs"
*98433-2* - **Glue operation** - "0.2 hrs"

- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01
- Labor times are valid at the time of release and are subject to change.

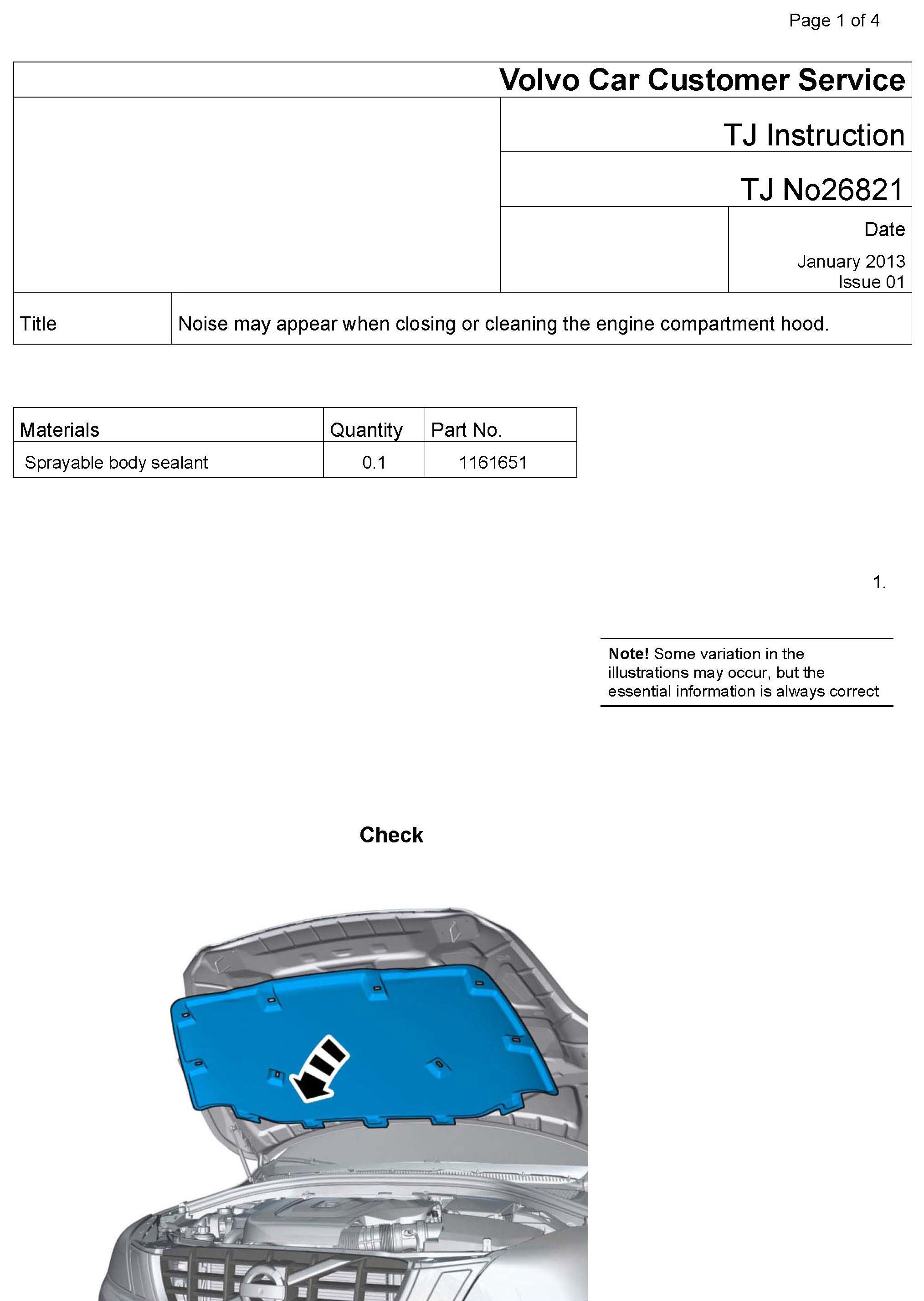

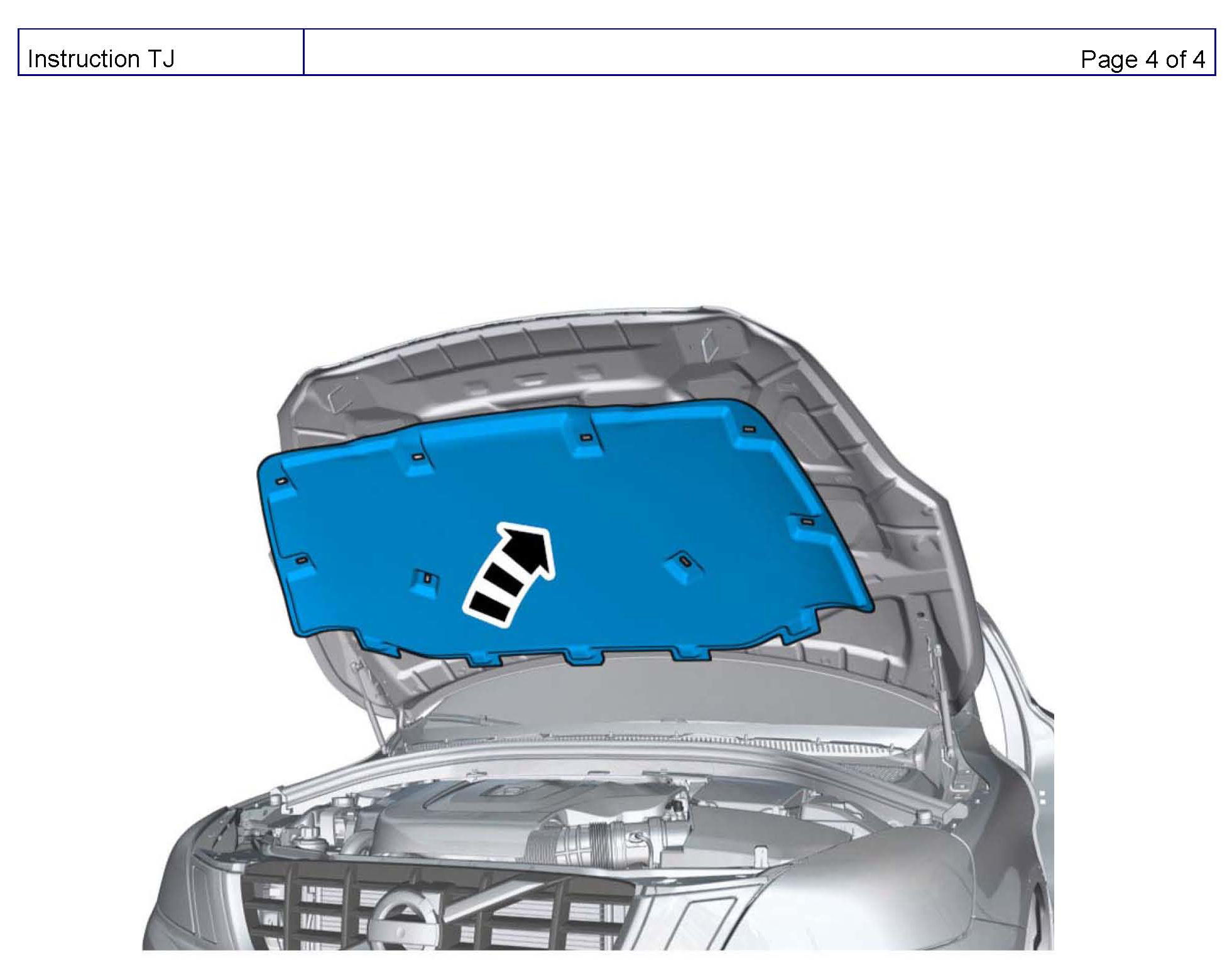

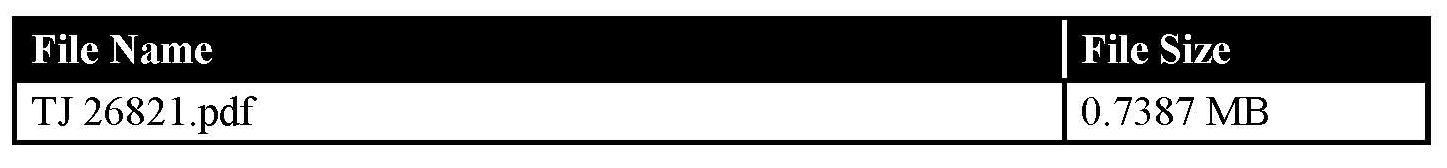

To view TJ attachment
