Hood Latch: Service and Repair

Operation number: 82115-2

Door latch hood

Removal

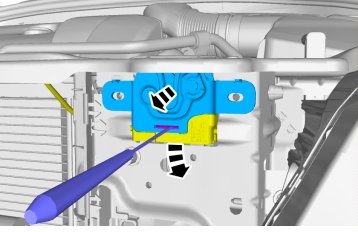

Note! Removal steps in this procedure may contain installation details.

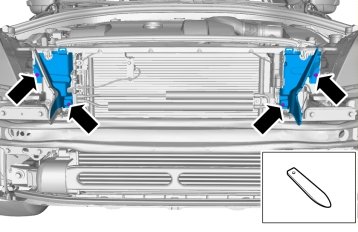

Remove casing bumper front Refer to: Cover bumper front, B6304T4, B6324S5, B6324S4 Service and Repair

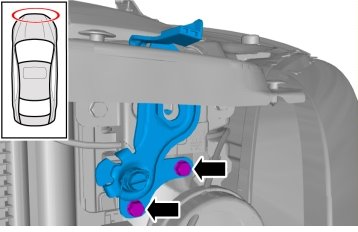

Torque: M6, 10 Nm





Note! Make sure that the bolts are not tightened until the hood is closed.

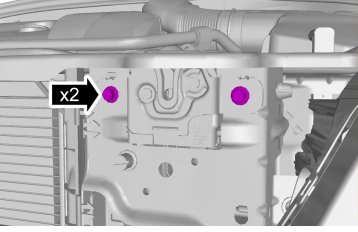

Torque: M6, 10 Nm





Installation

To install, reverse the removal procedure.
