Rear Door Latch: Service and Repair

Operation number: 83415-2

Door latch, rear door

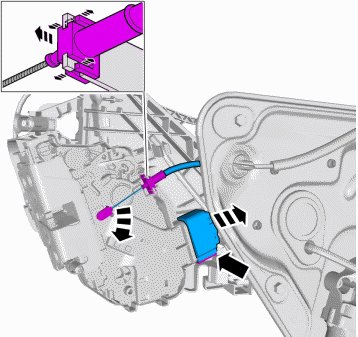

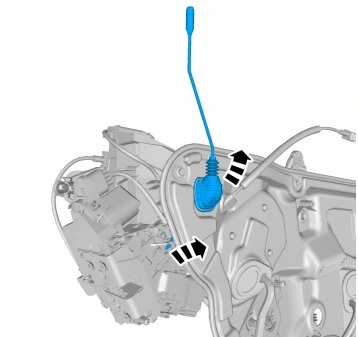

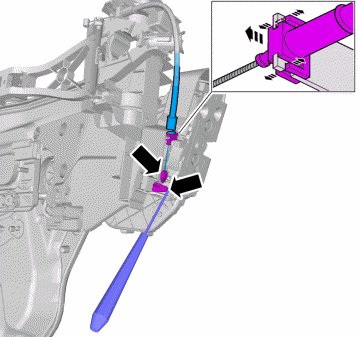

Removal

Note! Removal steps in this procedure may contain installation details.





Remove the following items:
- Panel rear door Refer to: Panel rear door Panel, Rear Side Door, Replacing
- Outer handle, rear door Refer to: Outer handle, rear door Service and Repair

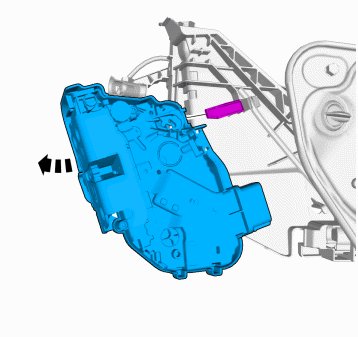

1. Torque: Door latch to door, 8 Nm

2. Torque: M6, 10 Nm





























Installation

To install, reverse the removal procedure.
