Signal Specification, Digital Audio Broadcast Module (DABM)

Signal specification, Digital Audio Broadcast Module (DABM)

General

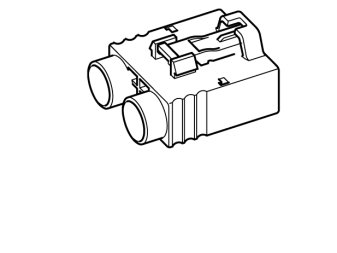

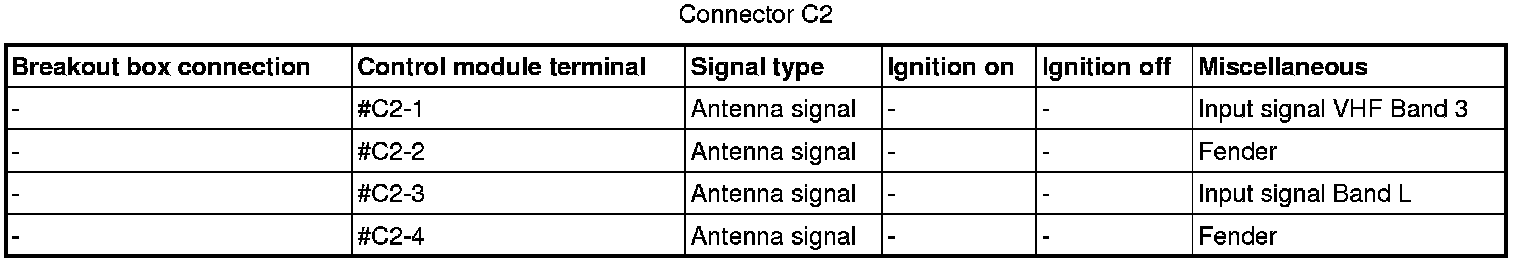

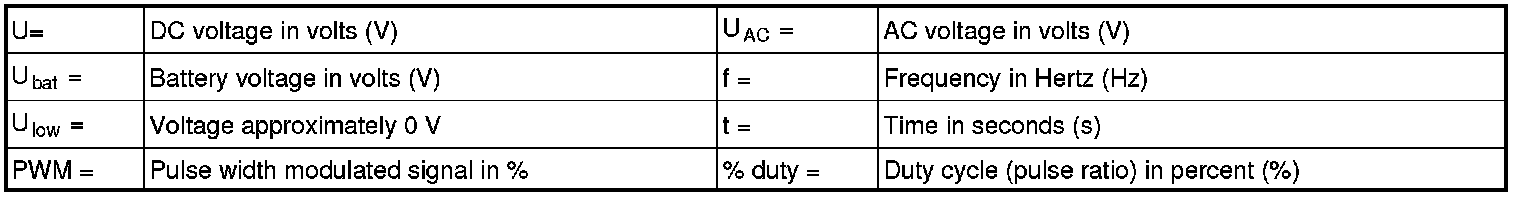

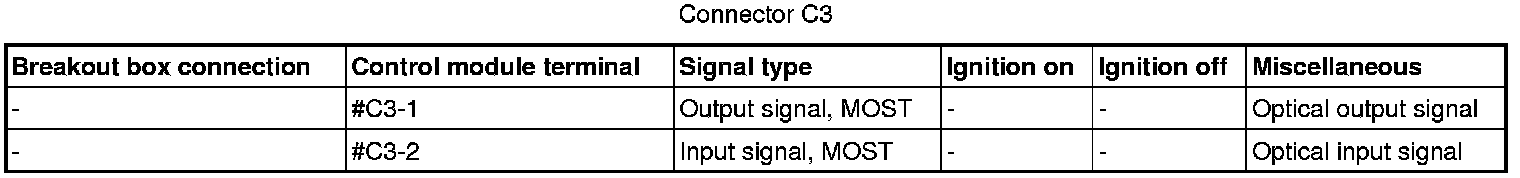

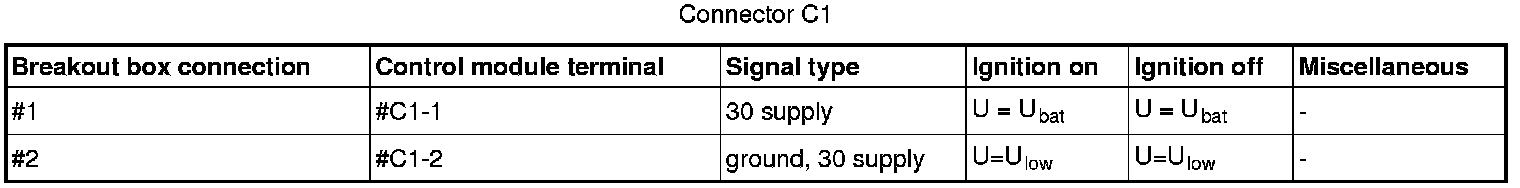

All the values given below are between connections stated in column 1 and connection #A1 in column 2 (power ground). This applies unless otherwise indicated in brackets.

Note! It is important to connect the breakout box and check the ground terminals before taking readings.
