Digital Radio DAB

Digital radio DAB































INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Digital radio DAB

Note! Some steps in these installation instructions are presented with illustration only.





- Turn the ignition key to position 0.

Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.











Applies to cars with subwoofer

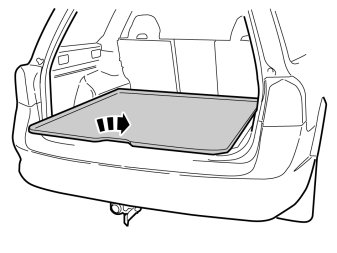

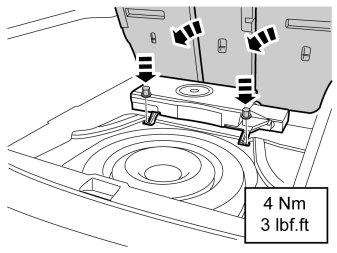

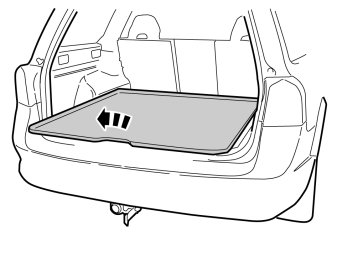

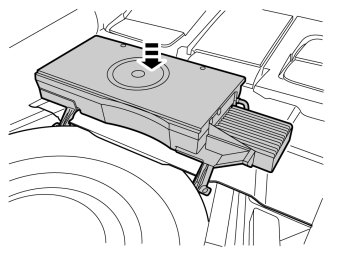

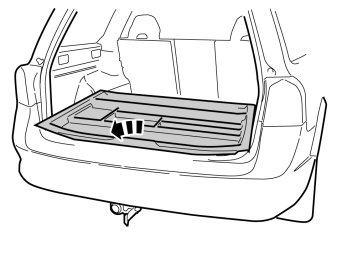

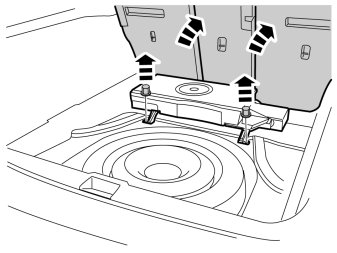

- Remove the rear plastic nuts for the subwoofer.
- Fold the backrest forward.

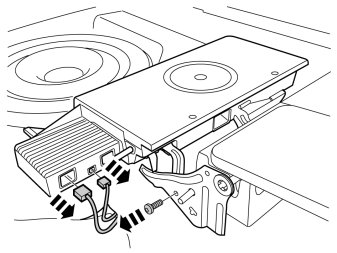

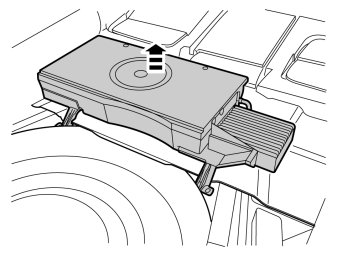

- Disconnect the connectors from the subwoofer.

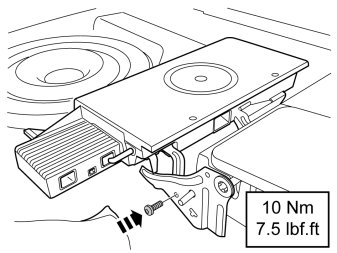

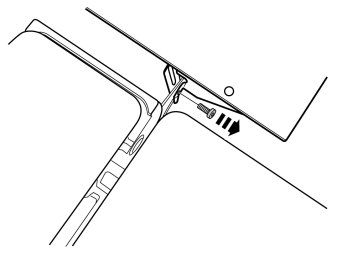

- Remove the screw from the right-hand mounting.





- Remove the screw from the left-hand mounting.







Applies to all models

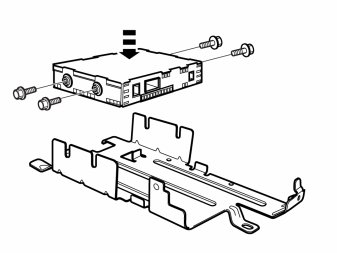

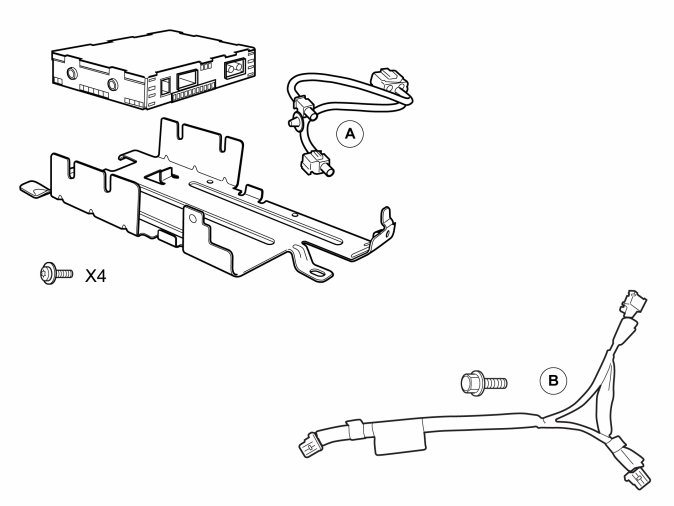

- Take the adapter cable marked A from the kit and connect the large connector to the receiver.

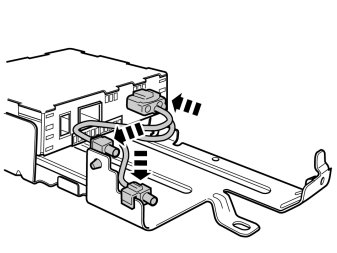

- Secure the loose connectors with their clips in the holes respectively edges in the bracket.

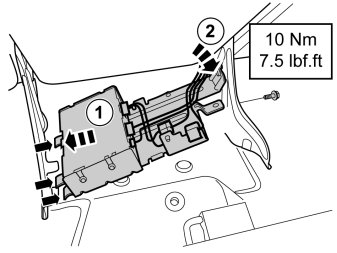

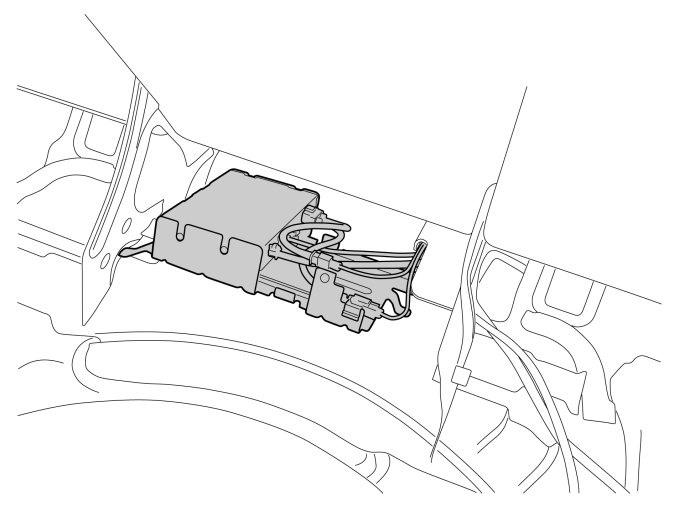

- Install the DAB unit with bracket on the reverse of the rear backrest.

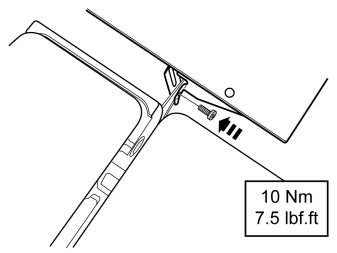

- Install the screws and tighten to 10 Nm (7.5 lbf.ft.).

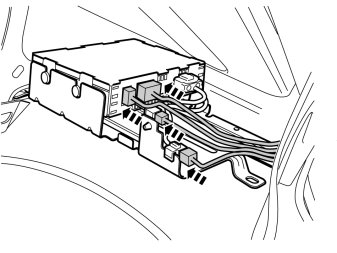

- Connect the wiring for the power supply, fibre-optics and the two antenna cables to the receiver. They are located near to the location for the bracket.

Applies to cars with subwoofer
- If the car has a subwoofer a fibre optic adapter cable must be used to connect the units. See step 15.

Applies to cars with subwoofer

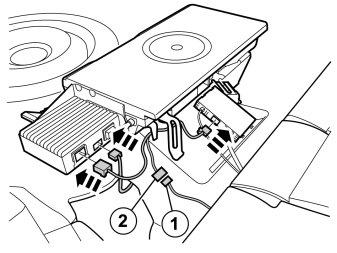

- Take the fibre optic adapter cable marked B from the kit and connect the male connector (1) to the fibre optic cable, which was disconnected from the subwoofer, to the female connector (2) on the adapter cable.
- Connect the remaining connectors on the fiber optic cables for the subwoofer and DAB unit.
- Connect the remaining connector that was disconnected from the subwoofer. Ensure that the cables are positioned so that they are not at risk of being cut off.







Applies to all models













- Download software for DAB (Digital Audio Broadcast). Programming and Relearning
