Garage Door Opener Transmitter: Service and Repair

Home Link



































INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimise the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Home Link






Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

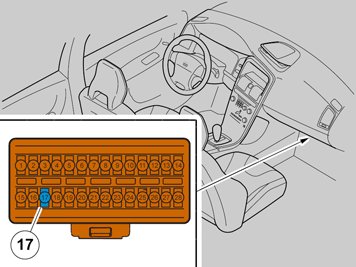

- Remove the fuse.

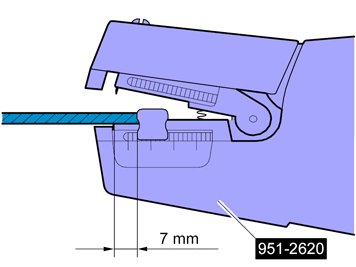

- Use special tool: 9512620

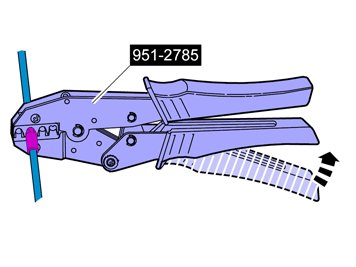

- Use special tool: 9512785










- Use special tool: 9512767
UK: Use special tool: 9512851
USA: Use special tool: 9512850

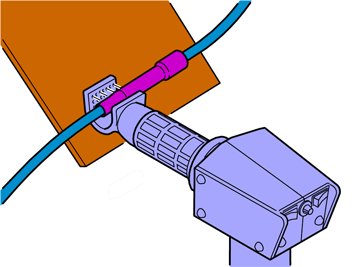

- Place a suitable protection behind to shield the surroundings from heat.

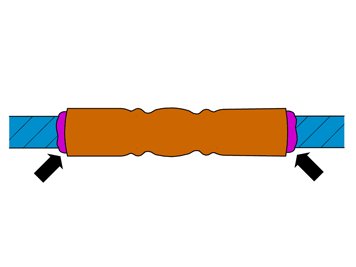

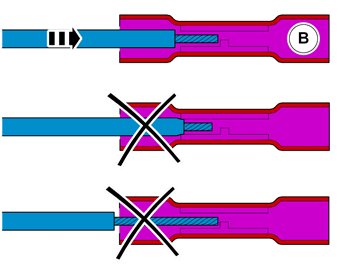

Note! Ensure that the butt connector is properly crimped around the cable. It should be possible to see that some adhesive has squeezed out.

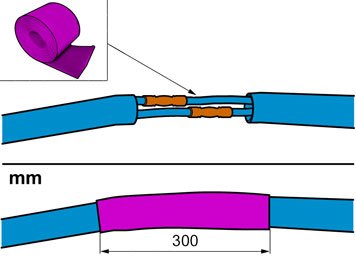

- Apply a maximum of two layers of tape.
- Cut off the remaining tape.

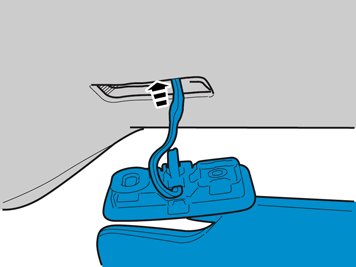

- Insert the two catches on the mounting above the headlining.
- Reinstall the detached components in reverse order.
