TV Receiver, Replacing

Operation number: 39330-2

Receiver TV

Removal

Note! Removal steps in this procedure may contain installation details.





Remove left side side panel cargo space Refer to: Side panel loadspace Side Panel Loadspace

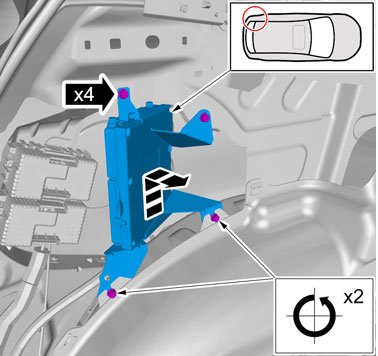

Torque: M6, 10 Nm

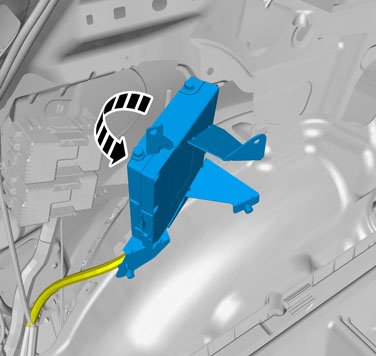

Caution! Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

Note! Make sure that the component terminals are not bent or damaged.

Torque: M5, 5 Nm

Installation

To install, reverse the removal procedure.

Order and download software Programming and Relearning
