Part 3

Multimedia system, RSE two screens with TV

All vehicles

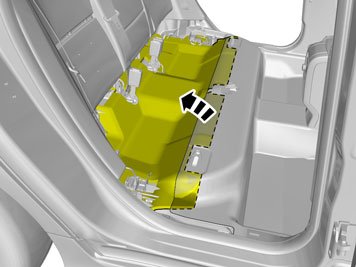

Disconnect the connectors.

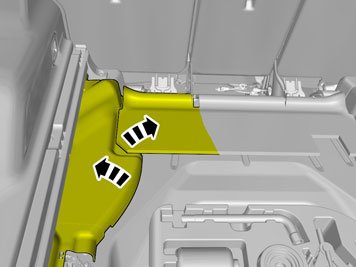

Remove the screws.




Remove the screws.












Unhook the cable harness clips.
Remove the tape.
Reuse existing parts.

Alternative 1




Disconnect the connector.
Remove the cable harness clips.

Alternative 2




Remove the cable harness clips.
Disconnect the connector.








Remove the screws.









Accessory installation









Installation








Reinstall the screws.









Alternative 1





Alternative 2













Accessory installation

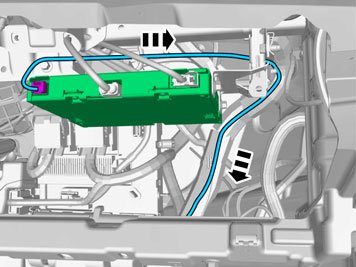

Connect the cable harness.
























Remove the screw.




Connect the cable harness.
Reinstall the screw.
Torque: M6, 10 Nm




Reinstall the removed part.
Torque: M6, 10 Nm




Connect the cable harness.

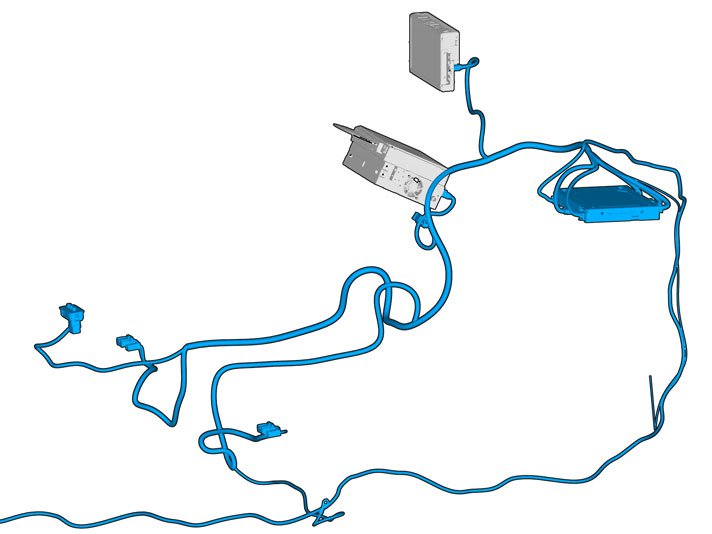

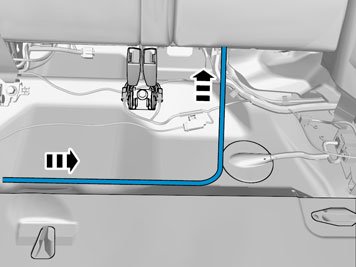

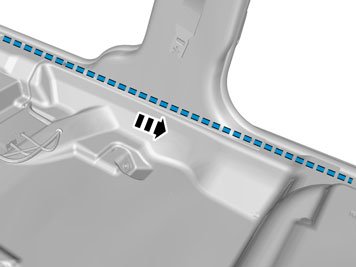

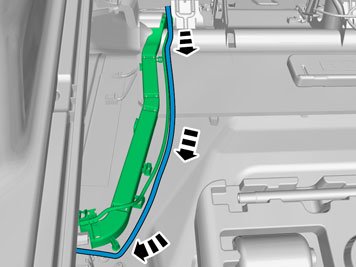

Route the cable harness to the existing cable harness.

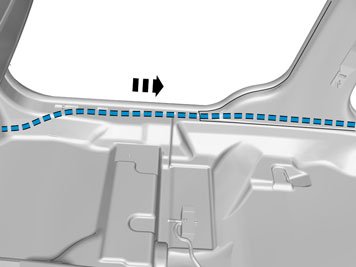

Fold the insulation to one side.

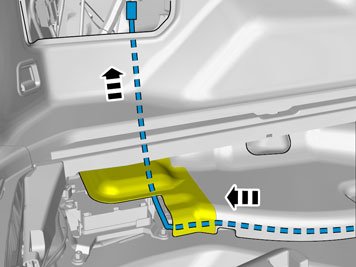

Fold the insulation to one side.

















Installation

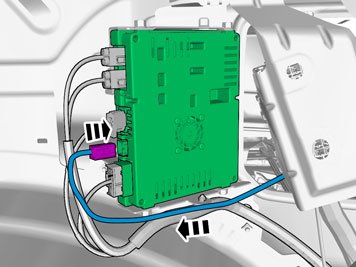

Connect the cable harness.




Connect the connector.
Tighten the screw.

Repeat the steps when installing on opposite side.

Reinstall the removed parts in reverse order.









Warning! When switching the ignition on first time after a battery disconnect and connect, stand outside the vehicle and reach into the vehicle keeping clear of the air bags operating areas.




Download software (application) for the accessory's function. Programming and Relearning









Kit Numbers:
8641074
8641071
8641072
8641073
31359128
31359124
31359125
