Part 2

Multimedia system, RSE two screens with TV

Removal

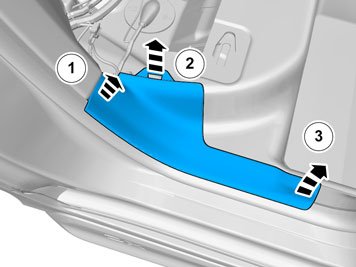

Remove the panel.




Remove the weatherstrip.





Caution! The front and upper sill panel must be removed and installed as one unit.
















Remove the screws.




Disconnect the connector.




Remove the screws.




Remove the screws.




Unhook the cable harness clips.




Disconnect the connector.








The part is not to be reused.









Accessory installation













Removal




Repeat on the other side.





















Accessory installation









Note! Only tighten the bolts finger tight at this stage.





Note! Only tighten the bolt finger tight at this stage.












Tighten the bolts.




Tighten the bolts.




Route the cable harness to the existing cable harness.




Fold the carpet to the side.












Locate the connector.




Release the lock.
Disconnect the connector.




Use: Electrician's screwdriver.








Connect the cable harness.
















Connect the connectors.
















Locate the connector.




Connect the cable harness.




Connect the connectors.




Connect the cable harness.













Removal

















Vehicles with headset sockets








Disconnect the connector.
The part is not to be reused.

All vehicles





















Vehicles with headset sockets




The part is not to be reused.
