Part 1











Multimedia system, RSE two screens with TV

Equipment

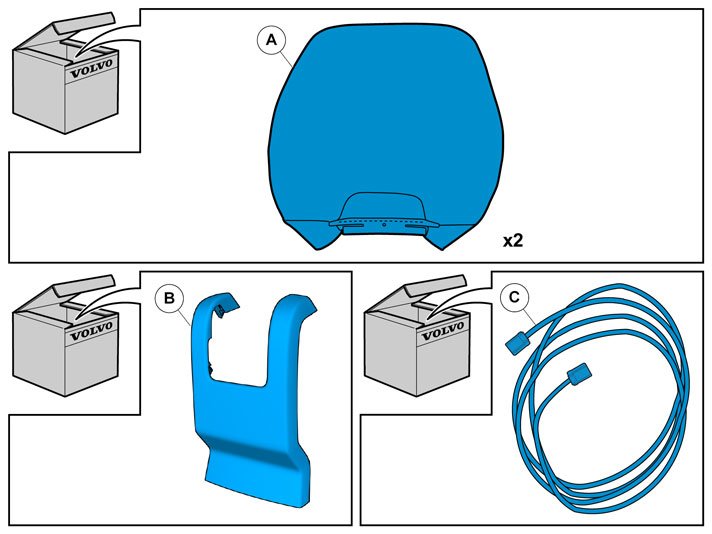

Component overview













Operation number: 39343











Information

- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Removal












Torque: Front seat to body, 40 Nm








Torque: Front seat to body, 40 Nm

Alternative 1

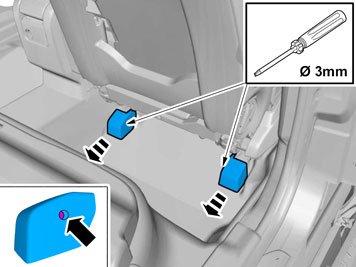

Release the lock.

Alternative 2








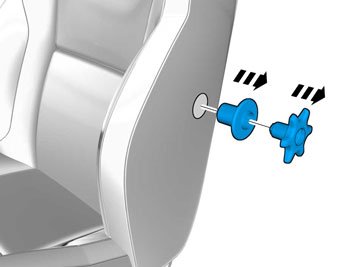

Release the lock.

Repeat the steps when removing on opposite side.








Remove the panel.




Fold the carpet to the side.




1. Unhook the cable harness clips.
2. Disconnect the connector.




Remove the panel.

Vehicles with the 4C system.




Disconnect the connector.

All vehicles








Disconnect the connector.








Repeat on the other side.








Remove the screws.





Cars with automatic transmissions








Release the shift-lock function.

Cars with manual transmissions




Release the lock ring which is located inside the gear lever boot.
Pull the locking sleeve and gear lever boot down. Take care so that the boot does not come loose from the lock ring.





All vehicles





















Note! The number of connectors may vary depending on the vehicle's equipment level.

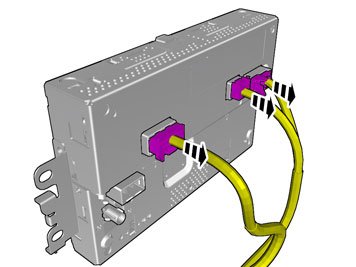

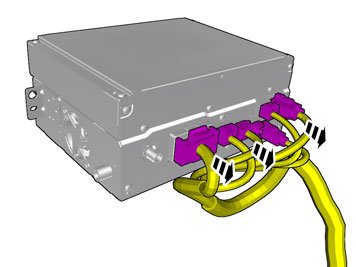

Disconnect the connectors.








Disconnect the connector, if applicable.
Attach the connector to the wiring harness.

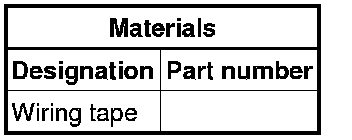

Use: Wiring tape,





Note! The number of connectors may vary depending on the vehicle's equipment level.








Remove the screws.

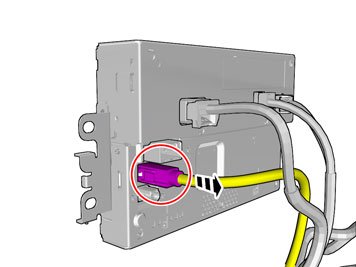

Disconnect the connector.

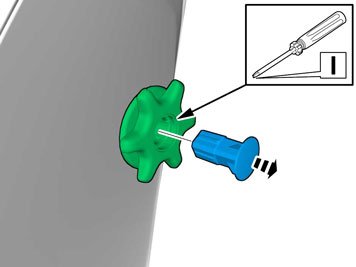

Caution! Be extra careful when removing or installing this component.




Use: Electrician's screwdriver.





Repeat the steps when removing on opposite side.

Accessory installation

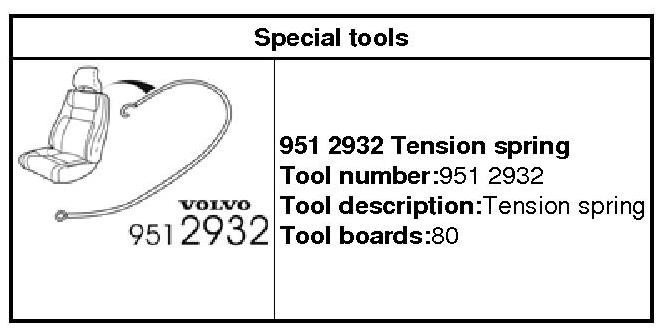

951 2932 Tension spring 951 2932 Tension spring




















Route the cable harness to the existing cable harness.




Secure the connectors.





































Repeat the steps when installing accessories on opposite side.
