Part 3

Multimedia system, RSE, two screens

Removal

















Vehicles with headset sockets

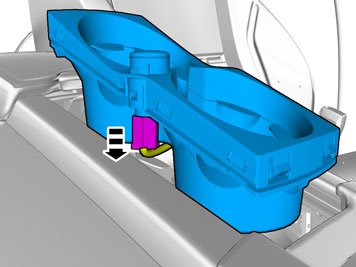

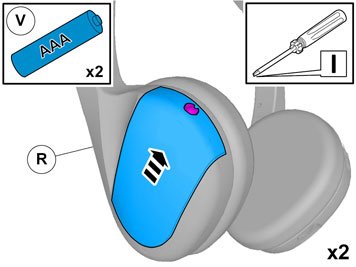

Disconnect the connector.
The part is not to be reused.

All vehicles





















Vehicles with headset sockets




The part is not to be reused.

All vehicles

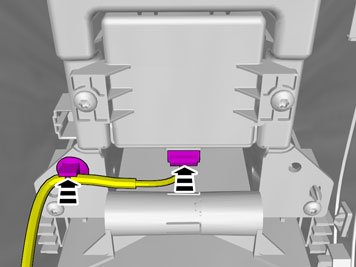

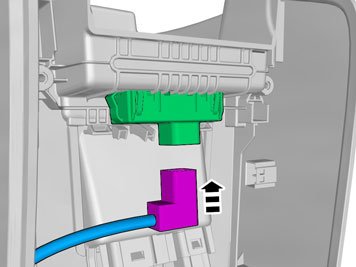

Disconnect the connectors.

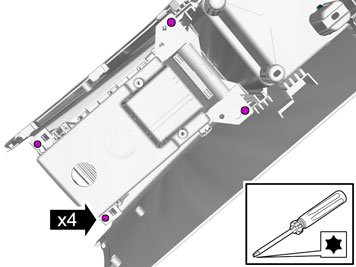

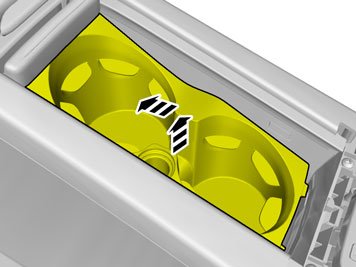

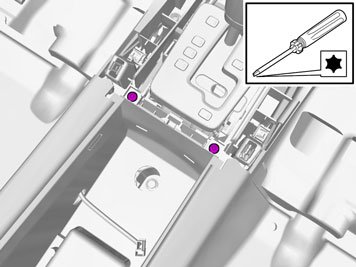

Remove the screws.

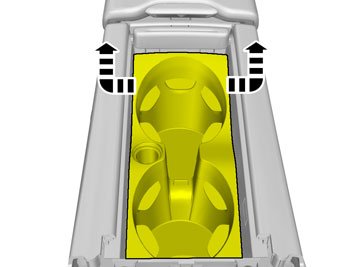

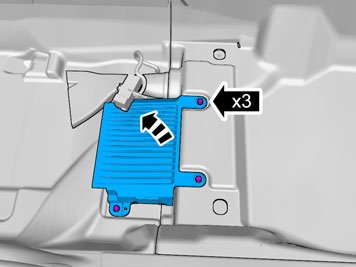

Remove the screws.

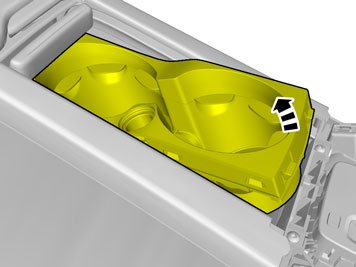

Remove the screws.

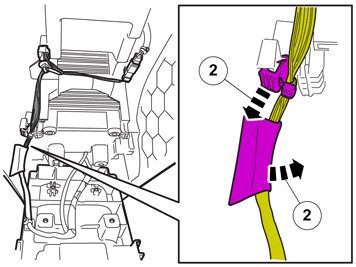

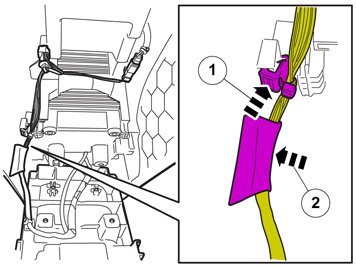

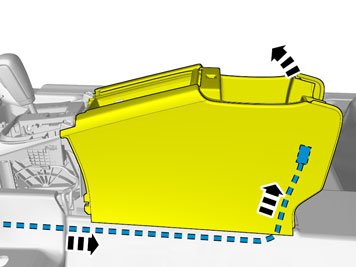

Unhook the cable harness clips.
Remove the tape.
Reuse existing parts.

Alternative 1

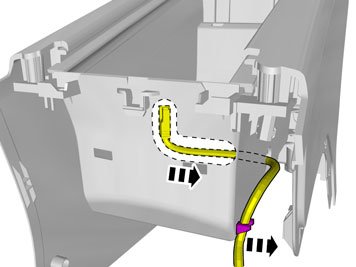

Remove the cable harness clips.

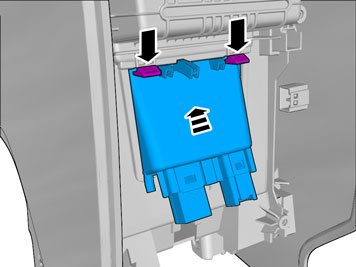

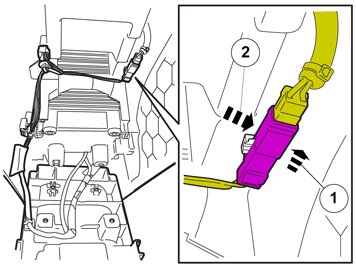

Disconnect the connector.

Alternative 2




Remove the cable harness clips.

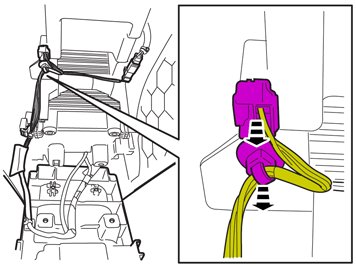

Disconnect the connector.

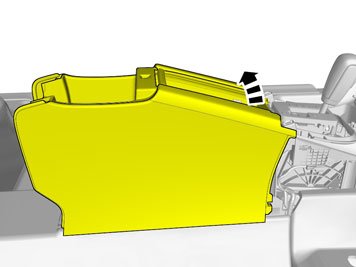

Remove the screws.









Accessory installation

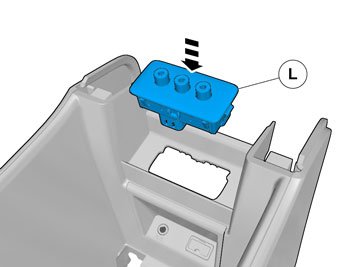

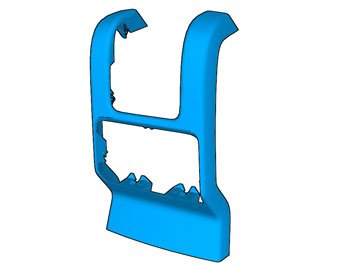

Install component that comes with the accessory kit.





Installation








Reinstall the screws.









Alternative 1





Alternative 2













Accessory installation

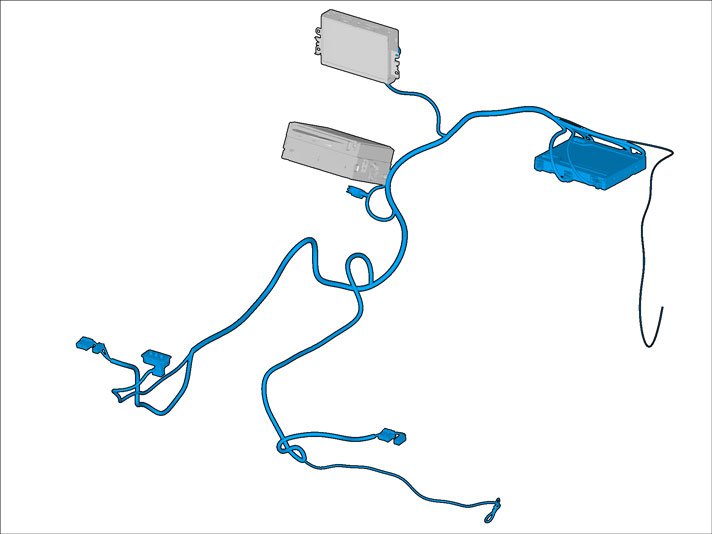

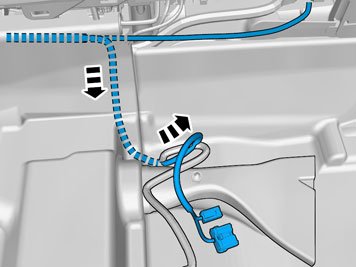

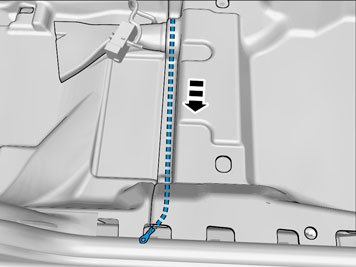

Connect the cable harness.

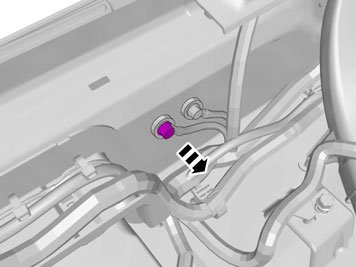

Remove the screw.

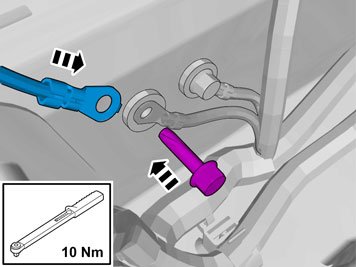

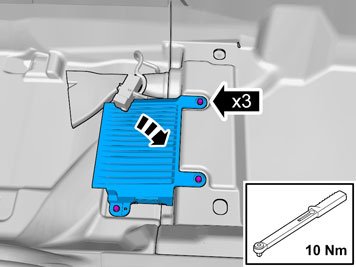

Torque: M6, 10 Nm





Installation

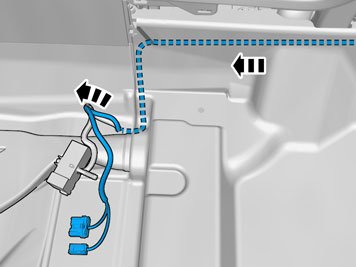

Connect the cable harness.




Connect the connector.
Tighten the screw.

Repeat the steps when installing on opposite side.

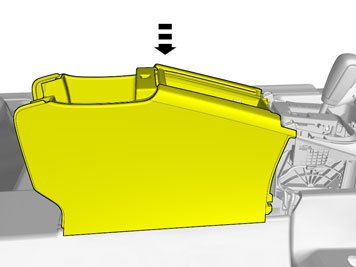

Reinstall the removed parts in reverse order.









Warning! When switching the ignition on first time after a battery disconnect and connect, stand outside the vehicle and reach into the vehicle keeping clear of the air bags operating areas.




Download software (application) for the accessory's function. Programming and Relearning









Kit Numbers:
8641072
8641071
8641073
8641074
31359124
31359125
