Part 2

Multimedia system, RSE, two screens

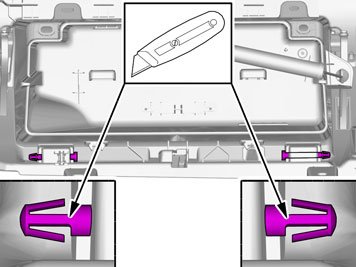

Accessory installation

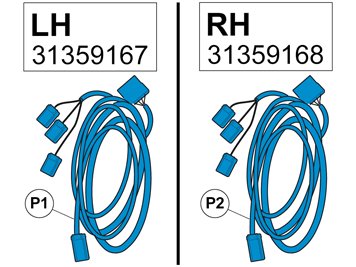

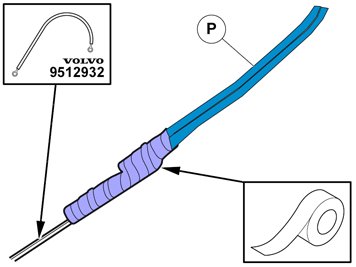

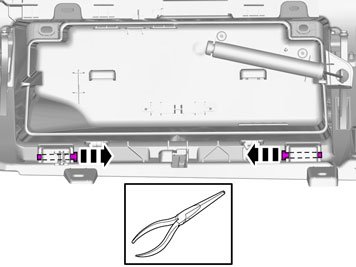

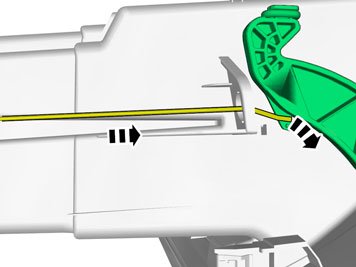

951 2932 Tension spring 951 2932 Tension spring

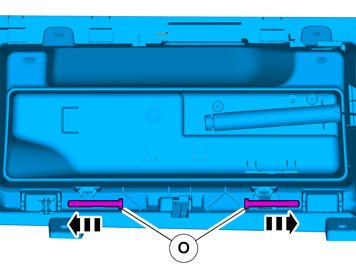

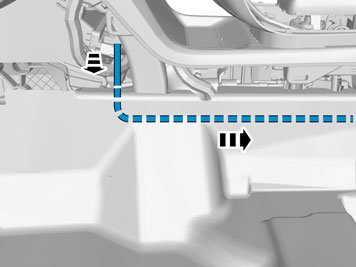

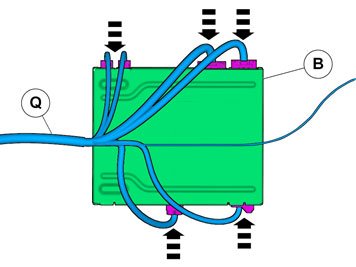

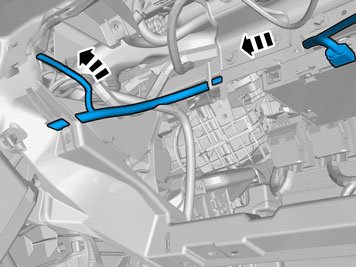

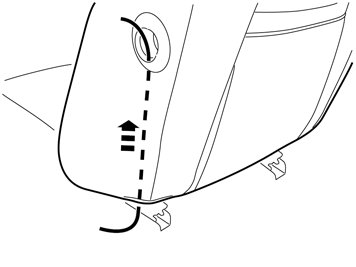

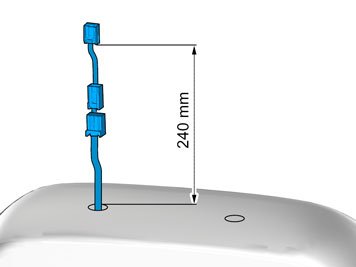

Route the cable harness to the existing cable harness.




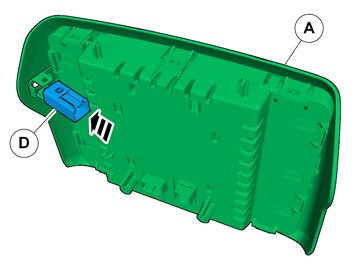

Secure the connectors.





































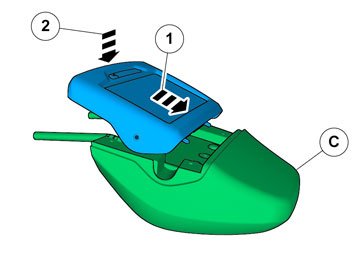

Repeat the steps when installing accessories on opposite side.

Removal




Remove the panel.




Remove the weatherstrip.





Caution! The front and upper sill panel must be removed and installed as one unit.

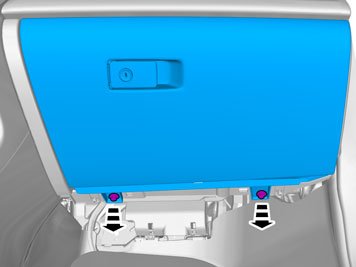

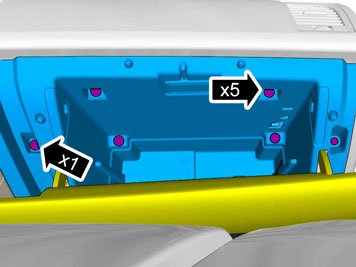

Remove the screws.

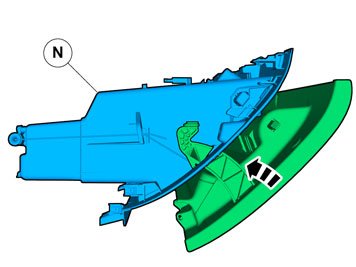

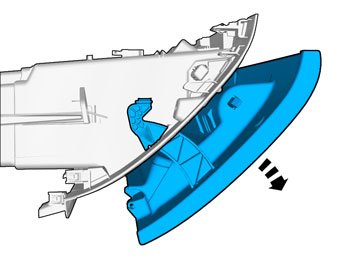

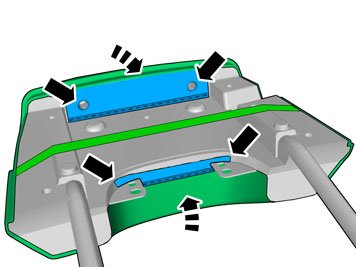

Detach the panel.

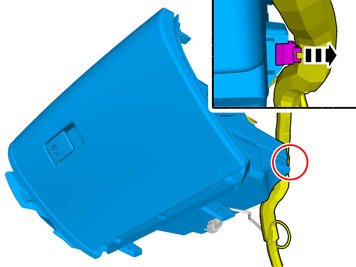

Disconnect the connector.

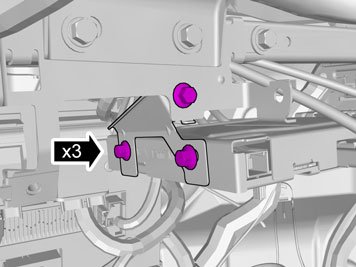

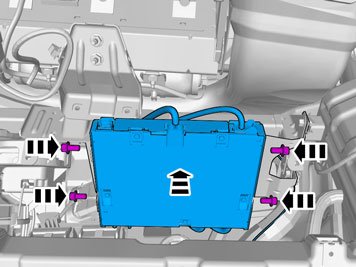

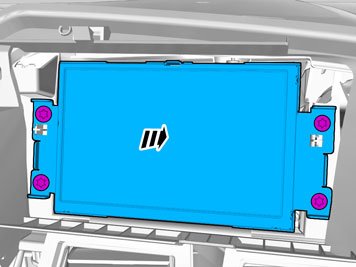

Remove the screws.





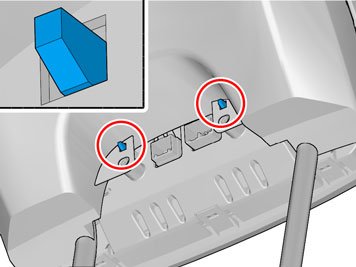

Note! Note the position.

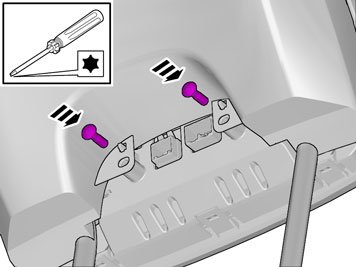

Remove the screws.

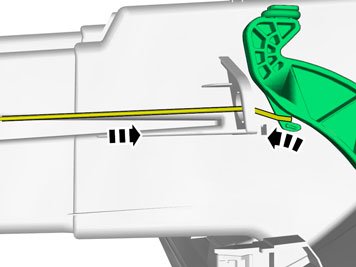

Unhook the cable harness clips.

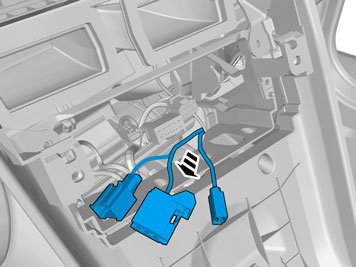

Disconnect the connector.

















Accessory installation

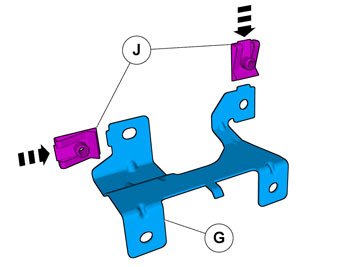

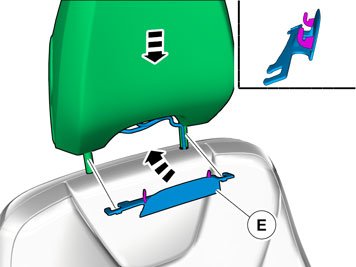

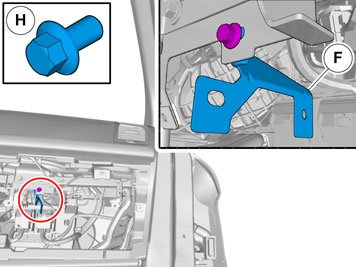

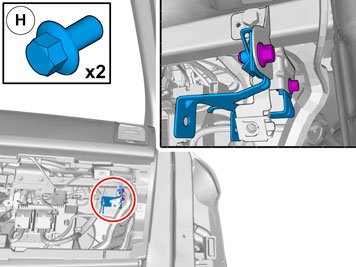

Note! Only tighten the bolt finger tight at this stage.





Note! Only tighten the bolt finger tight at this stage.

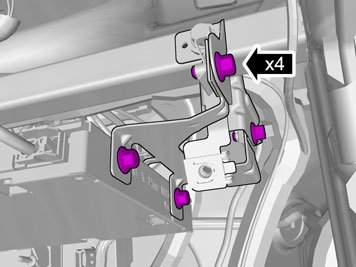

Tighten the bolts.




Tighten the bolts.

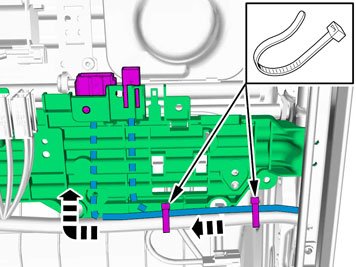

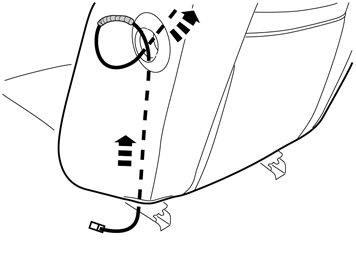

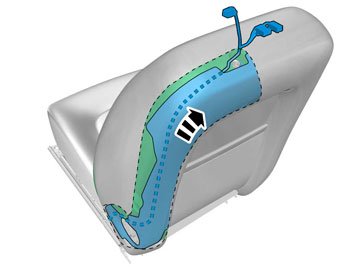

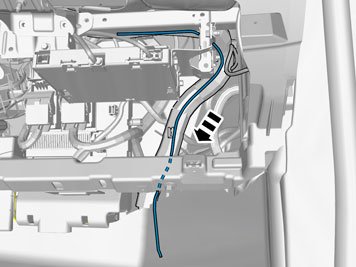

Route the cable harness to the existing cable harness.




Fold the carpet to the side.

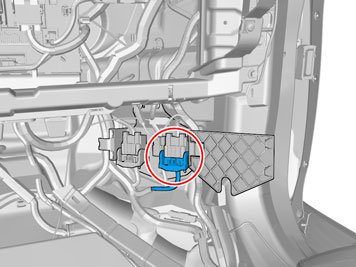

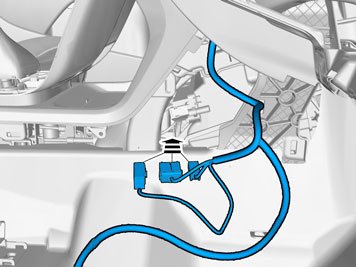

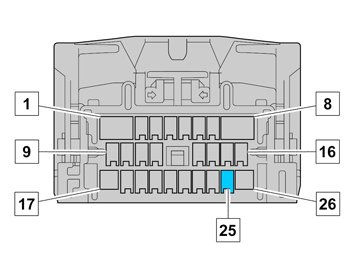

Locate the connector.

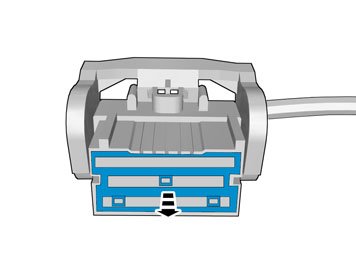

Release the lock.
Disconnect the connector.

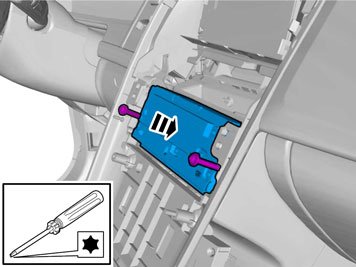

Use: Electrician's screwdriver.

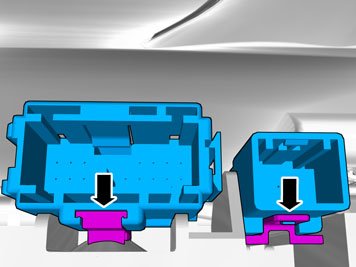

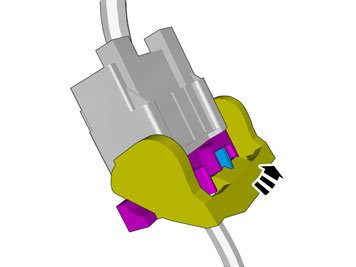

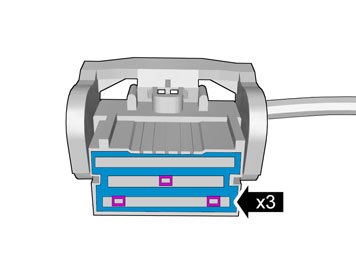

Release the connector's secondary lock.

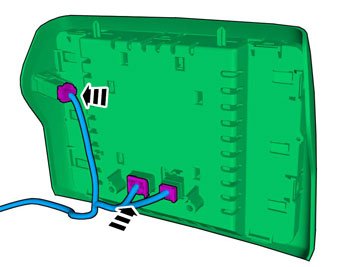

Connect the cable harness.

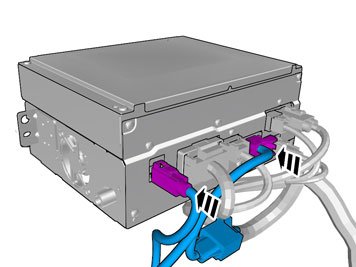

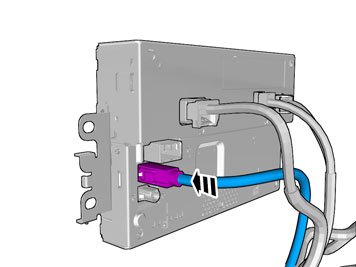

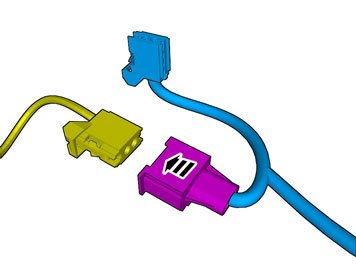

Connect the connectors.

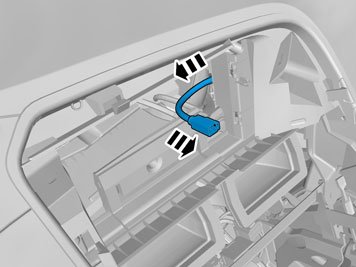

Connect the cable harness.












Locate the connector.




Connect the cable harness.

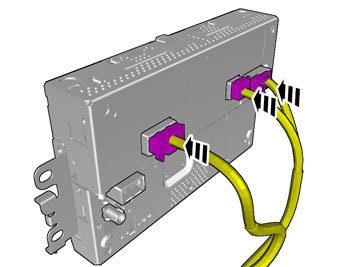

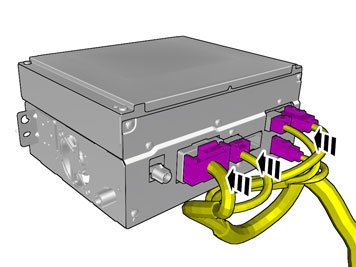

Connect the connectors.




Connect the cable harness.
