Infotainment Levels Upgrade

Infotainment levels upgrade

Equipment

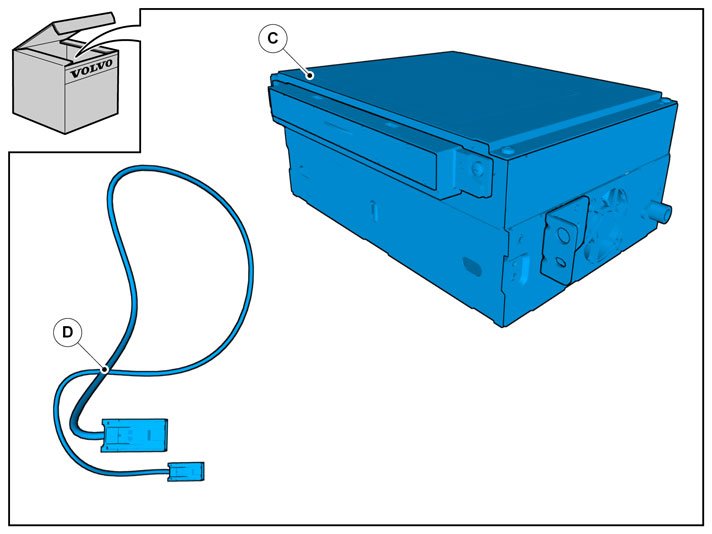

Component overview













Operation number: 36660

Information

- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Conditions




Set the ignition key to position 0.
Remove the battery's negative cable.

Removal

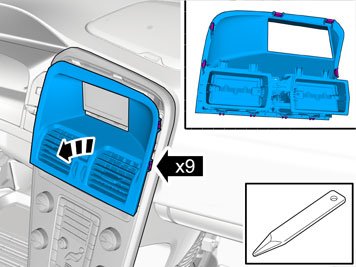

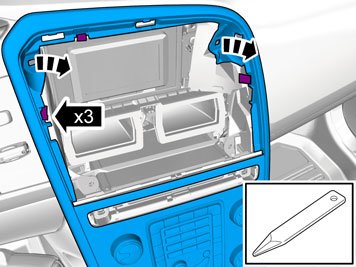

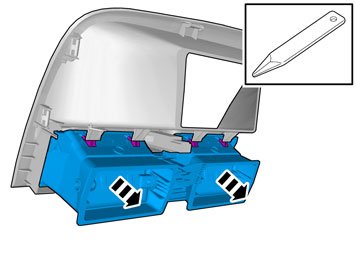

Remove the panel.

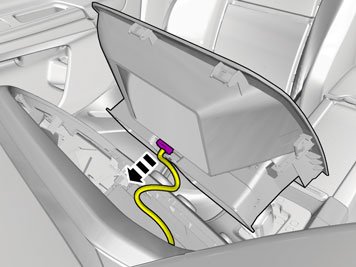

Disconnect the connector.

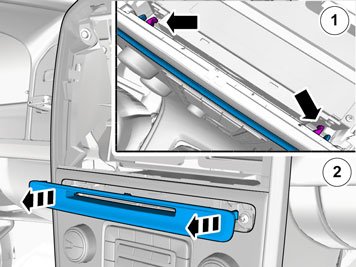

Remove the panel.

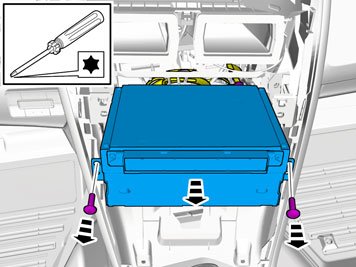

Remove the screws.

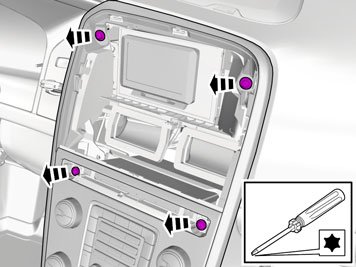

Remove the screws.

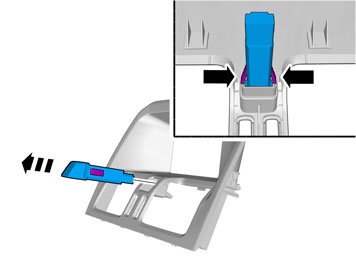

Remove the panel.

Vehicles with the 4C system.

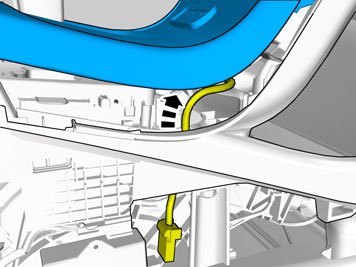

Disconnect the connector.

Cars with automatic transmissions

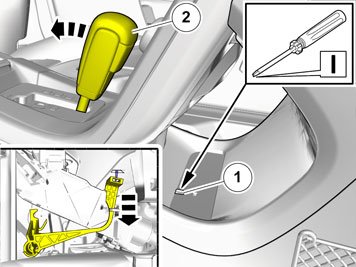

Release the shift-lock function.

All vehicles

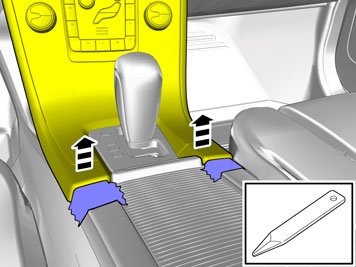

Remove the panel.




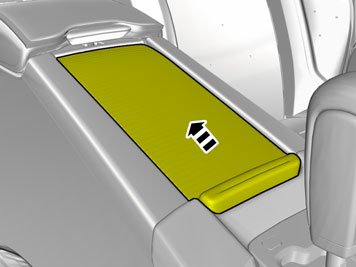

Detach and fold back the floor covering.
Unhook the cable harness clips.

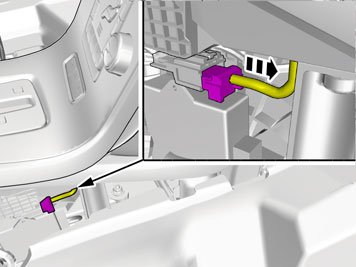

Disconnect the connector.

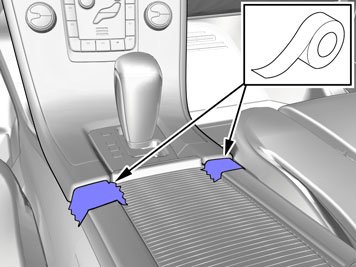

Caution! Use suitable tape to protect the components.













Vehicles with the 4C system.





Cars with manual transmissions





All vehicles

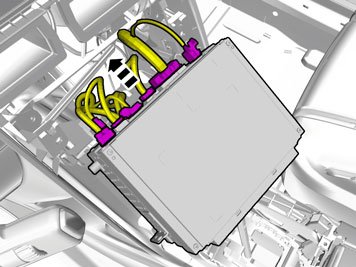

Disconnect the connectors.

Vehicles with 5 inch ICM-display












Remove the screws.
Torque: M8, 24 Nm












Disconnect any connector(s).




Remove the screw.
Torque: M8, 24 Nm




Detach and fold back the floor covering.
Remove the screw.
Torque: M8, 24 Nm




Detach and fold back the floor covering.
Remove the screw.
Torque: M8, 24 Nm

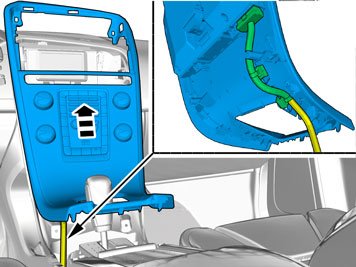

Detach the panel.

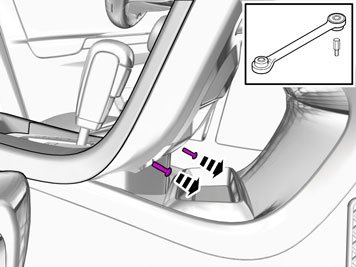

Remove the screws.









Note! The number of connectors, cables and cable ties can vary depending on the vehicle's equipment level.

Disconnect the connectors.

Installation

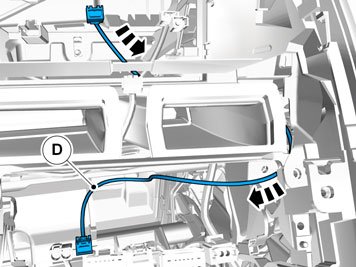

Route the cable harness to the existing cable harness.





Note! The number of connectors, cables and cable ties can vary depending on the vehicle's equipment level.

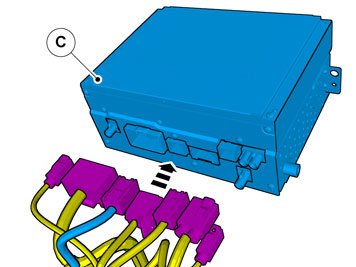

Connect the connectors.








Reinstall the screws.

Removal

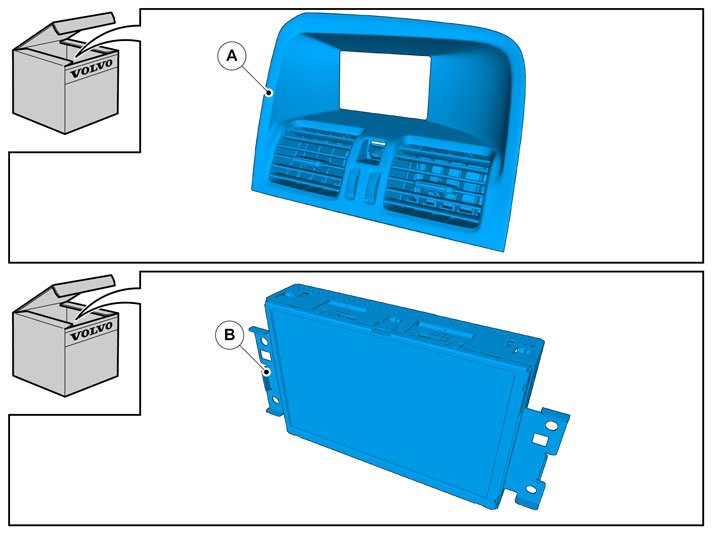

Accessory installation





All vehicles

Installation




Connect the connectors.




Reinstall the screws.

Reinstall the removed parts in reverse order.




Download software (application) for the accessory's function. Programming and Relearning

Kit Numbers:
31266952
31266950
31266951
