Antenna

Note! The pattern on the antenna varies for different car models.

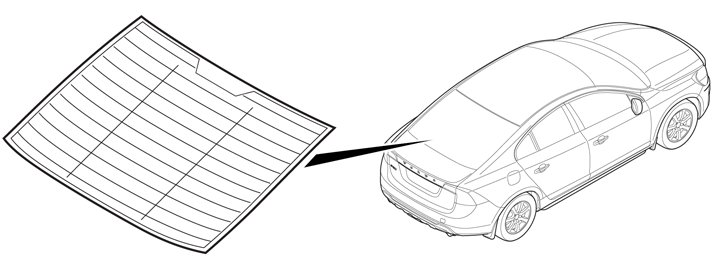

S60

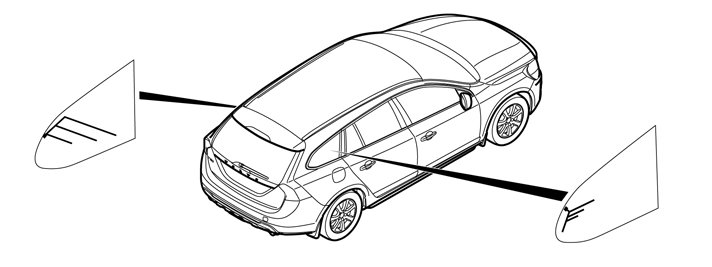

V60/V70/XC70

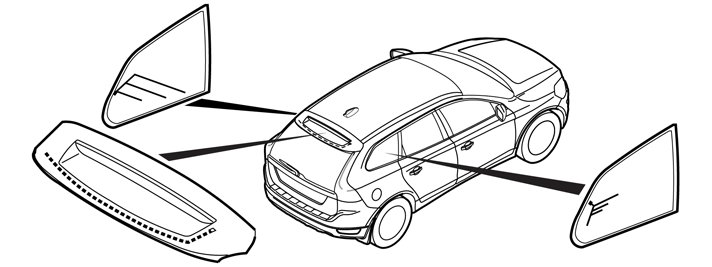

XC60 (2011- structure week 201046-)




Directly connected antennas (three for the S60, V60 and XC60, four for the S80, V70 and XC70) belong to the Television Module (TVM). These antennas are connected to TVM via antenna amplifier.
The antennas are in the rear windscreen, rear side windows or the spoiler. When the antenna is in the rear windscreen, three of four antennas can be located in the same window, in the side windows one or two antennas can be in each window. For the XC60 there is an antenna in the spoiler. There are diagnostics for the antennas.
