Identification Of RSE System

Identification of RSE system

Rear seat entertainment system (RSE), generation 3.1-4.3

Note! This information does not apply to roof mounted systems.

Rear seat entertainment systems are available in a number of different generations. The generations have different designs and are equipped with different functions. This section describes the easiest method to identify which generation of system is installed in the vehicle.

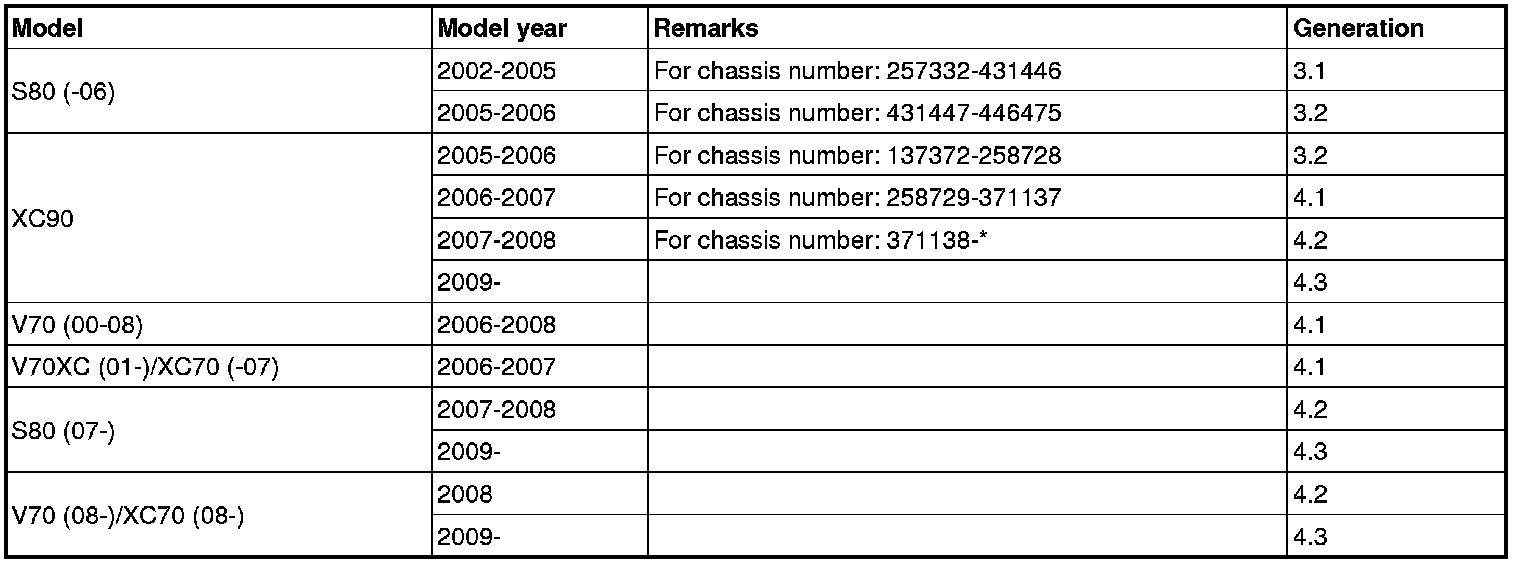

The table below shows which generations are available for each model and model year. This is followed by the most distinct differences between the generations.
The information in the table only applies to factory installed systems. To identify a retrofitted accessory system, see each generation below.

For other information about the systems, see each design and function.





* Until model year 2008 changed to model year 2009.

Generation 3.1
Equipped with a remote control that has 29 buttons.
Has two 7" screens.

Note! When replacing the Rear seat entertainment module (RSE) the remote control must also be replaced. The new remote control, which must be used, is generation 3.2. The chassis number as set out above must now be used to distinguish the systems.

Remote control:





Generation 3.2
Equipped with a remote control that has 16 buttons.
Has two 7" screens.
Remote control:





Generation 4.1
Is equipped a remote-control that has 22 buttons of which one button is red and 21 are white.
In addition, there are two sockets for headphones on the AUX panel. One socket for the left-hand screen and one socket for the right-hand screen.
Has two 7" screens.





Generation 4.2
Is equipped a remote-control that has 22 buttons of which one button is red and 21 are white.
Has two 7" screens.
Remote control:





Generation 4.3
Equipped with a remote control that has 17 buttons.
If the system is equipped with a TV (DVB-T) the remote control has 29 buttons. In addition, there is a visible card slot for a subscription/program card on the TV receiver.
The TV receiver is installed in the cargo compartment, in XC90 on the right-hand side under the cover above the wheel housing.
In S80 (07-) it is installed on the left-hand side inside the side panel, and in V70 (08-)/XC70 (08-) in the storage compartment below the cargo compartment floor.
Has two 8" screens.
Remote control:

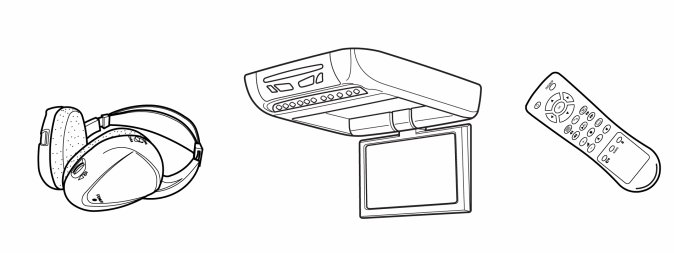

Roof-mounted system for rear seat entertainment









The roof-mounted system consists of a unit with an 8-inch monitor with integrated DVD player.
The unit is mounted in the roof between the front seats. The unit has a monitor that flips down/folds up automatically when switched on/off.
Roof mounted RSE is available in two versions:
- Generation 1 has the DVD player in the roof by the cargo compartment (above the right-hand head restraint), whilst the monitor is in the roof.
- Generation 2 has the DVD player and monitor in the same unit in the roof.

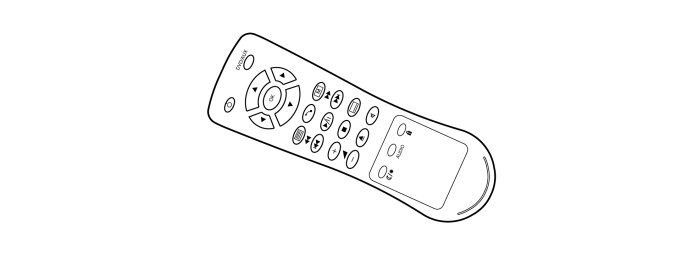

Remote control:

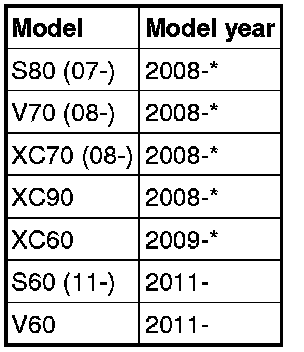

Rear seat entertainment system (RSE), Myron & Davis









* Only applies to North America. XC60 applies globally 2010-.
The system consists of two brilliant 7-inch, 16:9 format LCD screens. The screens can be adjusted manually to minimise the risk of reflections and mirroring in strong light conditions. The DVD players are integrated in the screens. Media discs are loaded from underneath, which reduces the risk of small objects being inserted into the DVD player. The system is equipped with AUX inputs, which make it possible to connect external media sources: iPod �, MP3 player, video camera or games console. The system also contains two pairs of wireless headphones and a wireless remote control. The DVD devices have been thoroughly tested and meet Volvo's high demands on safety.
What makes Myron & Davis RSE unique and easy to separate from the other systems is that each head restraint contains a monitor and a DVD player.
Remote control:

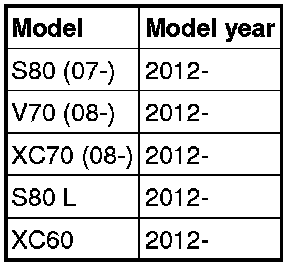

Rear seat entertainment system (RSE), Sensus









The system is fully integrated in the car and has two separately controlled, high-resolution 8-inch screens mounted in the head restraints.
The Rear seat entertainment module (RSE) can receive signals from the DVD player, AUX input and USB input in the Integrated Audio Module (IAM), digital TV signals from the Television Module (TVM) and signals from the directly connected A/V AUX-panel. The Rear seat entertainment module (RSE) can also provide output signals to an external screen.
The control module has diagnostics and is mounted above the glovebox.
Remote control:
