Signal Specification, Parking Assistance Camera (PAC)

Signal specification, Parking Assistance Camera (PAC)

General

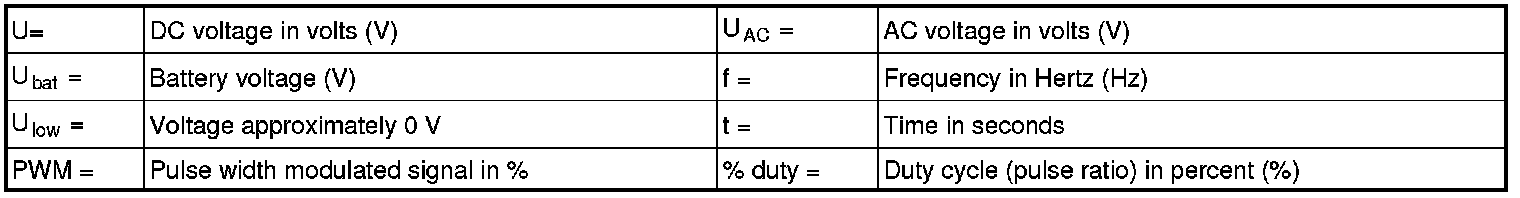

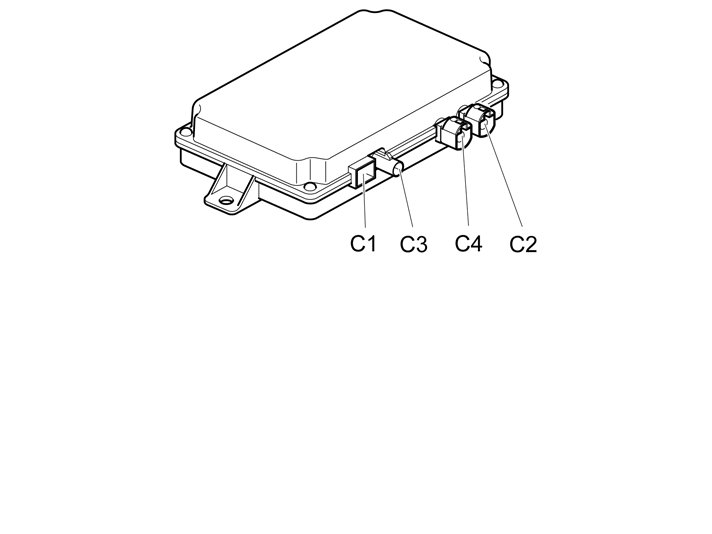

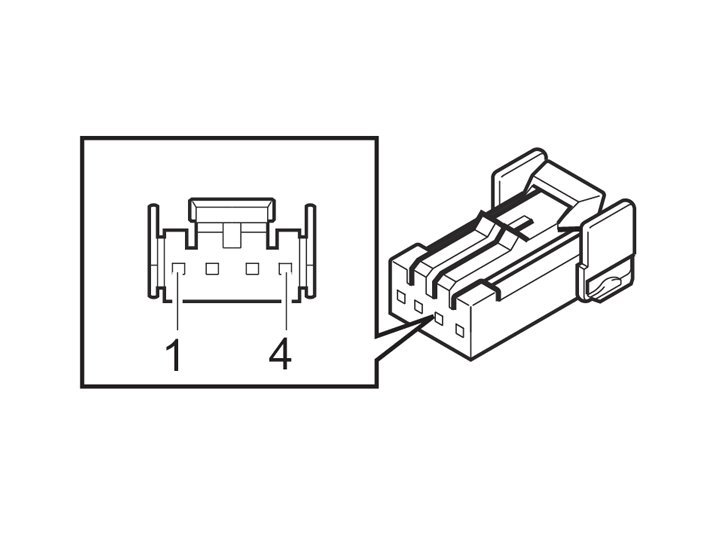

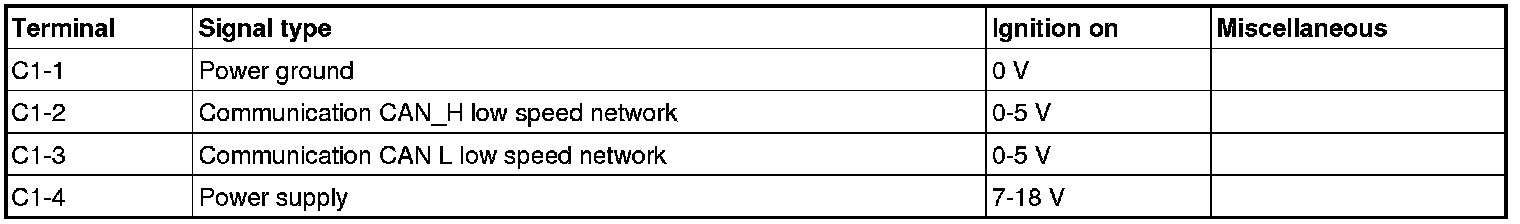

Signal table, connector C1




It is not possible to measure this connection on the control module since electric power will be cut off the control module if the connector is unplugged. Try instead to measure on the connector.

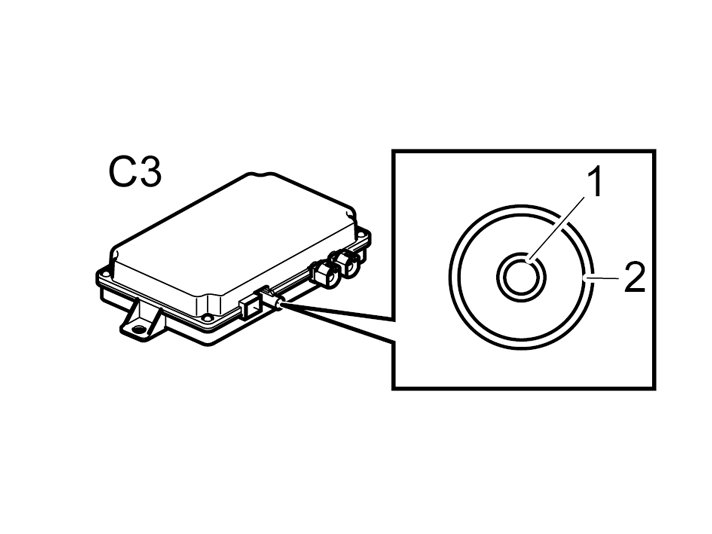

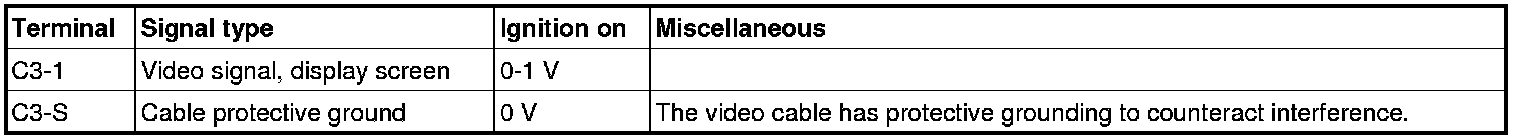

Signal table, connector C3

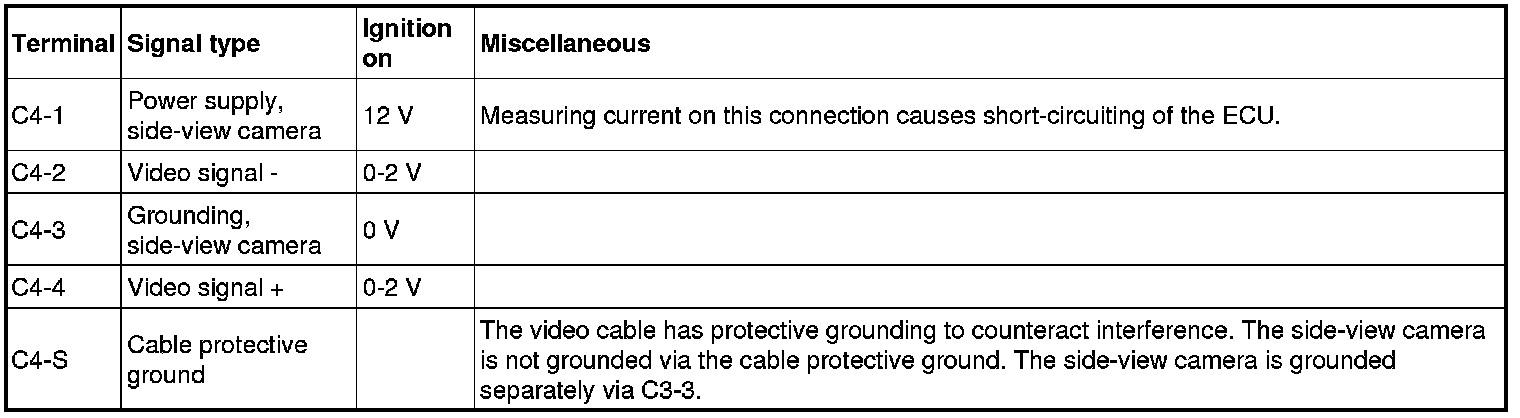

Signal table, connector C4 (only Japan)










Signal table, connector C2
