Side Looking Camera: Service and Repair

Operation number: 84627

Side Obstacle Detection Camera Heater Element






Removal

Note! Removal steps in this procedure may contain installation details.

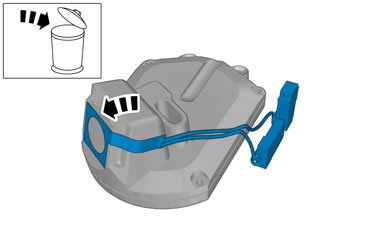

Remove camera (blis) Refer to: Camera (BLIS) Camera (BLIS)




Note the position.

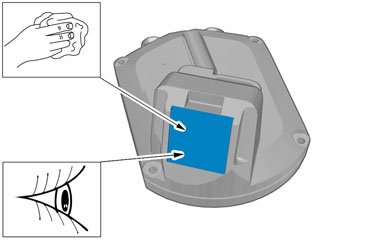

Caution! Make sure that the mating faces are clean and free of foreign material.

Caution! Use lint free cloth.

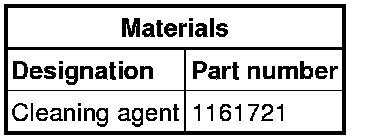

Use: Cleaning agent, 1161721

Installation

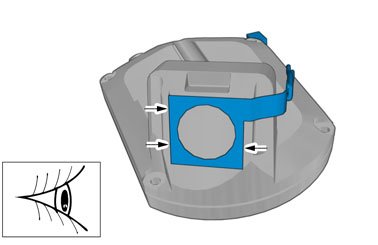

Note! Make sure that air can freely escape.

Note the position.

To install, reverse the removal procedure.
