Part 2
Parking assistance, rear
Note! This procedure is easier carried out by two people.

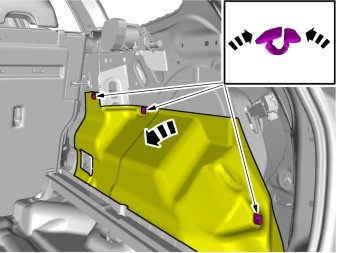

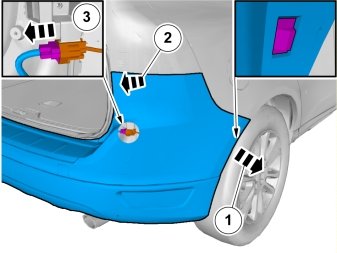

Caution! Place the bumper cover on a suitable surface.

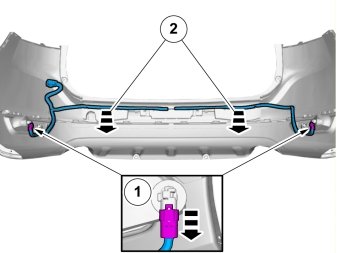

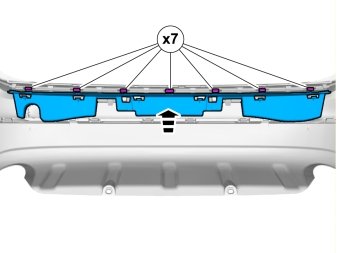

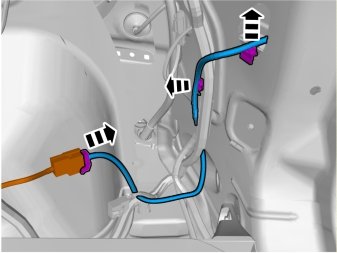

- The cable harness will not be used again.

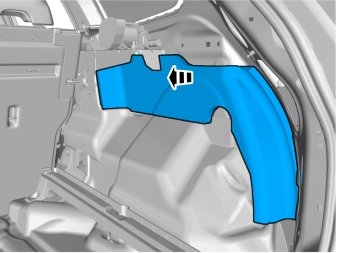

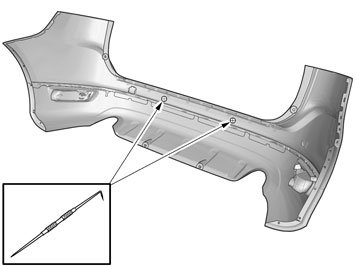

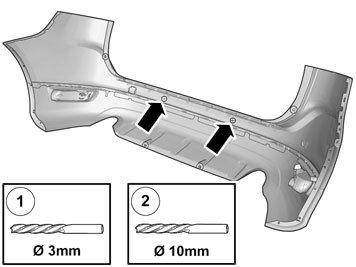

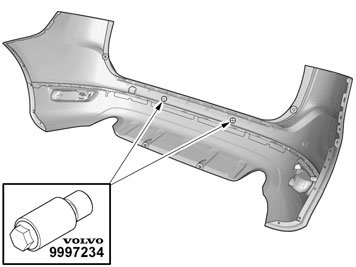

- Locate the two markings at the upper edge of the bumper cover.
- Mark the centre, use a scriber.
1. - 3 mm (7/64")
2. - 10 mm (25/64")
- Use: 9997234 Hole tool
Caution! Place the hole tool's support sleeve on the inside, and the cutting part on the outside of the bumper casing.

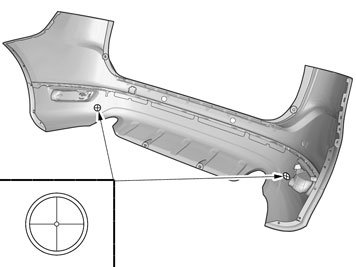

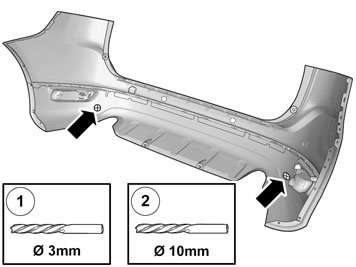

- Locate the two markings at the lower edge of the bumper cover.
- Mark the centre, use a scriber.
- Extend the marking's vertical line using a scriber. This is to be used as a reference line for punching holes.
Illustration A
1. - 3 mm (7/64")
2. - 10 mm (25/64")
Illustration B

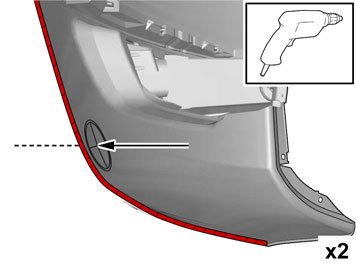

Caution! Drill horizontally through the bumper cover.
- Use: 9997367 Hole tool
- Ensure that the markings, 1 and 2, are opposite each other when making holes.
Caution! Place the hole tool's support sleeve on the inside, and the cutting part on the outside of the bumper casing.

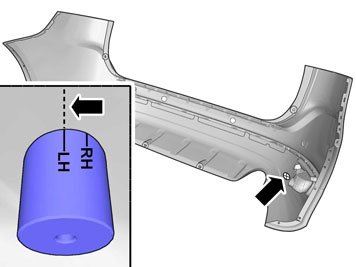

Applies to the left-hand side

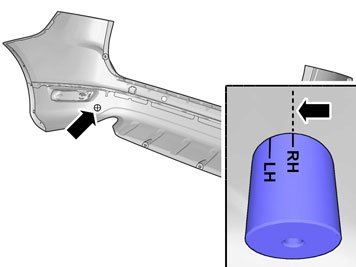

- Ensure that the marking on the hole tool (LH) and the marking that was made on the bumper cover are opposite each other.
Note! Ensure that the support sleeve does not turn when the screw is tightened.
Applies to the right-hand side
- Ensure that the marking on the hole tool (RH) and the marking that was made on the bumper cover are opposite each other.
Note! Ensure that the support sleeve does not turn when the screw is tightened.
- Clean the inside of the bumper cover using a mild soap solution.

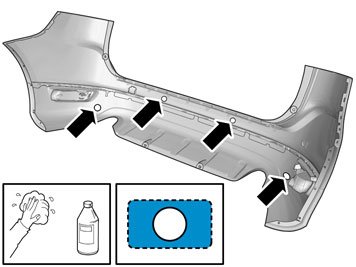

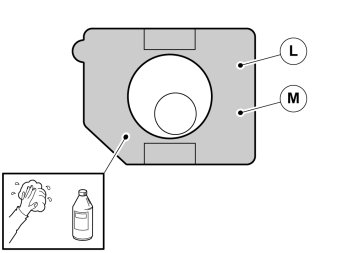

- Clean an area around the holes that is slightly larger than the sensor holder. Use isopropanol. Allow to dry.

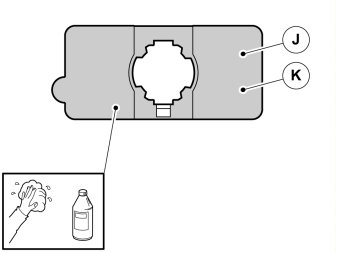

- Clean using isopropanol.
- Clean using isopropanol.

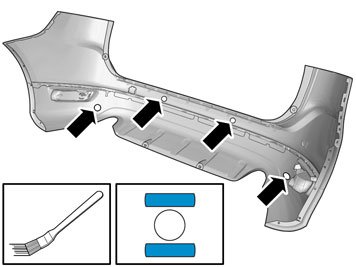

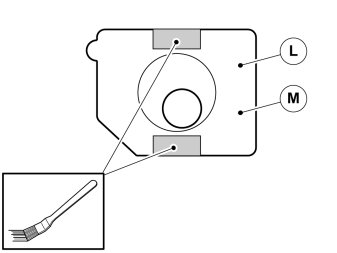

- Apply a thin and even layer of activator. Allow to dry for at least 10 minutes.
- Use: 8637076 Activator.
- Apply a thin and even layer of activator. Allow to dry for at least 10 minutes.
- Use: 8637076 Activator.

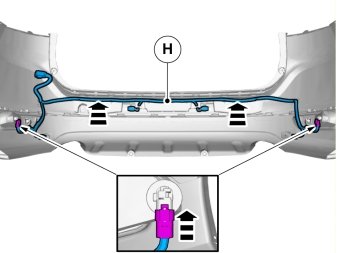

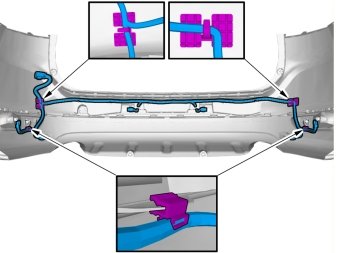

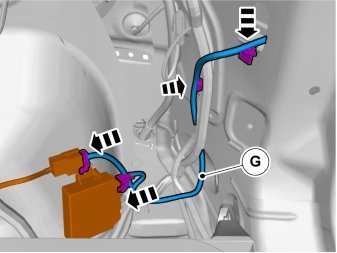

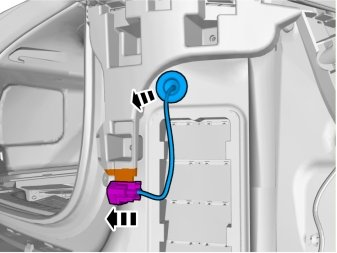

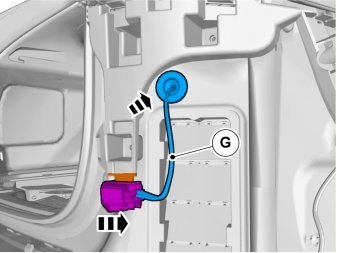

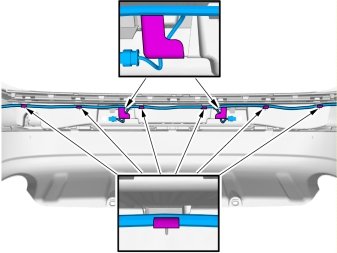

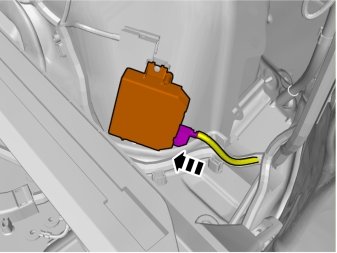

- Locate the taped connector and connect it to the control module.
- The cable harness will not be used again.

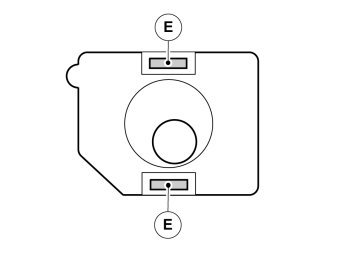

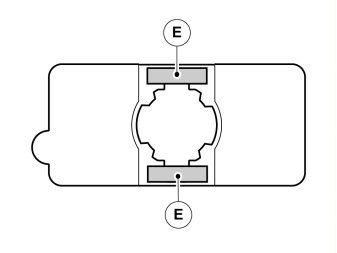

- Apply two pieces of tape.
- Remove the protective film from the tape.

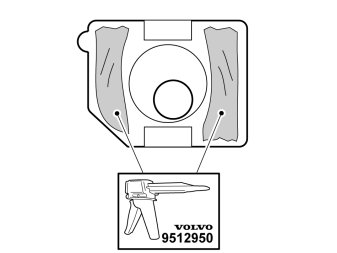

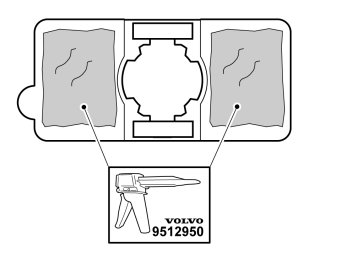

- Apply a thin and even layer of adhesive. The adhesive must be above the tape level.
- Use: 9512950 Adhesive gun, 1161730 Mixing pipe and 9511027 Adhesive.
Caution! The adhesive must not come into contact with the tape.

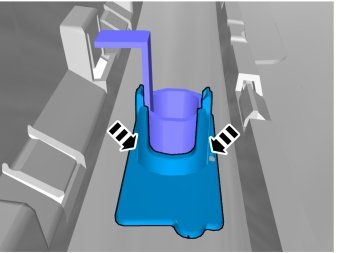

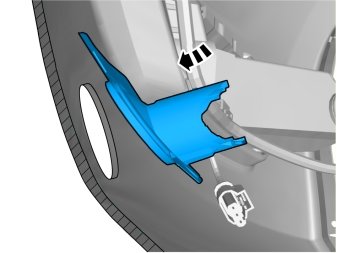

- Press the holder towards the casing, but only at the places where there is tape.

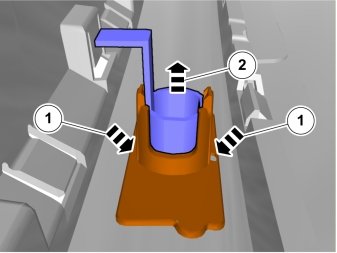

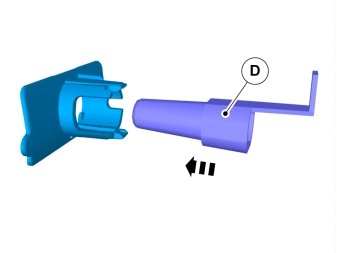

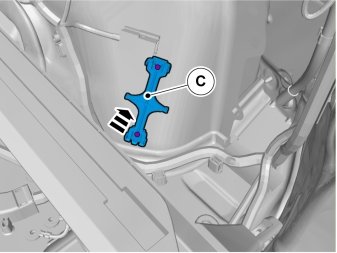

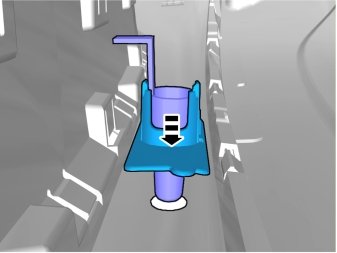

- Hold the cradle securely when removing the centering tool.
- Repeat the method steps on the other cradle.
- Apply two pieces of tape.
- Remove the protective film from the tape.
- Apply a thin and even layer of adhesive. The adhesive must be above the tape level.
- Use: 9512950 Adhesive gun, 1161730 Mixing pipe and 9511027 Adhesive.
Caution! The adhesive must not come into contact with the tape.
- Repeat the method steps on the other cradle.
Note! Connect the painted sensors in the middle.

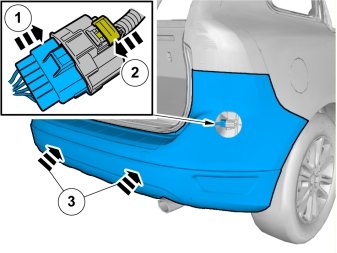

- Reinstall the detached components in reverse order.
- Download the software for the accessory's function.
