Camera (BLIS)

Operation number: 84627

Camera (BLIS)

Removal

Note! Removal steps in this procedure may contain installation details.

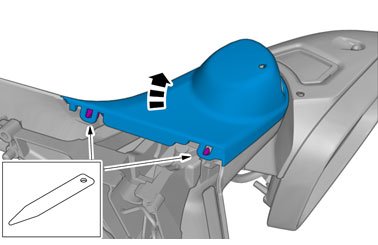

Remove rear-view mirror external Refer to: Rear view mirror external Rear View Mirror External




Remove the part carefully

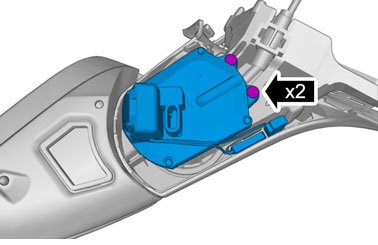

Torque: Camera (BLIS) to External Rear View Mirror, 4 Nm

Installation

To install, reverse the removal procedure.
