System Overview
System overview
Introduction
The Forward Sensing Module (FSM) is an electronic system that:
- warns and aids the driver to brake the vehicle in the event of an imminent collision
- warns the driver when he/she is about to leave the lane
- guides the driver, if he/she is about to leave the lane accidentally, by applying steering torque to the steering wheel (only V40 (2013 -)).
- warns the driver when his/her driving pattern deteriorates.
- informs the driver information module (DIM) about which road signs the vehicle passes.
Parts of the system also make up an addition to the existing cruise control.
The following functions are provided by the Forward Sensing Module (FSM):
- Collision Warning - warns the driver of a possible collision with the vehicle in front or with pedestrians standing, walking or running in front of the vehicle.
- Auto Brake - brakes the vehicle automatically when a collision with the vehicle ahead or a pedestrian is imminent.
- Brake support - aids the driver, when there is a collision risk, to brake the vehicle when the brake pedal is depressed.
- Distance control helps the driver maintain the distance to the vehicle ahead without affecting the speed of your own vehicle. A fixed light indication in the windshield informs that the time interval to the vehicle ahead is less than the set distance.
- Adaptive cruise control - maintains a time interval to the vehicle ahead when cruise control is activated.
- Lane Departure Warning (LKA) - warns the driver if they (i.e. without indicating) are about to leave the lane/cross the line marking accidentally.
- LKA (Lane Keeping Aid) - guides the driver to stay within their lane markings, if they about to leave the lane accidentally, by applying steering torque to the steering wheel (only V40 (2013 -)).
- Driver Alert Control (DAC) - alerts and warns the driver that their attention, and therefore, their driving pattern, have deteriorated due to fatigue for example.
- Road Sign Information - informs the driver via the DIM about which road signs the vehicle passes.
Control module
The most important task of the Forward Sensing Module (FSM) is to manage the functions for:
- Collision warning
- Automatic braking (in the event of a near unavoidable collision)
- Brake support (in the event of a collision risk)
- Distance control
- Adaptive cruise control
- Lane Departure Warning
- Driver Alert Control
- Lane Keeping Aid (only V40 (2013-))
- Road Sign Information
The control module is located behind a panel by the pedal assembly. The entire control module is removed from the vehicle at replacement.
The Forward Sensing Module (FSM) communicates both with directly connected components and with other control modules via CAN communication.
The control module checks activations and input and output signals using an integrated diagnostic system A diagnostic trouble code is generated if the control module detects a fault. In certain cases the control module replaces the faulty signal with a substitute value.
Any diagnostic trouble codes are stored in the relevant control module memory. The data can be read off using a diagnostic tool.
If the control module detects a malfunction, a diagnostic trouble code is registered inside the control module's internal memory. At the same time, a number of values are stored. These are frozen at the time the malfunction occurred. Depending on the severity of the malfunction, certain functions may be partially or completely disengaged. Diagnostic trouble codes and frozen values (extended diagnostic trouble code information) can be read off using diagnostic tools via the data link connector in the vehicle.
For further information, also see Signal specifications.
Signals

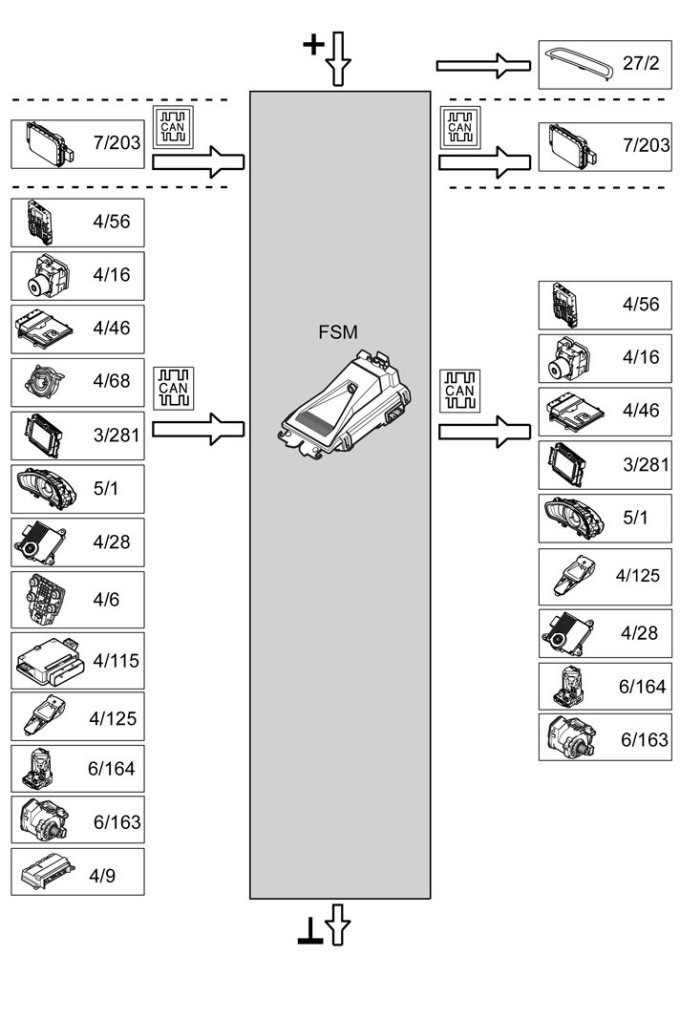

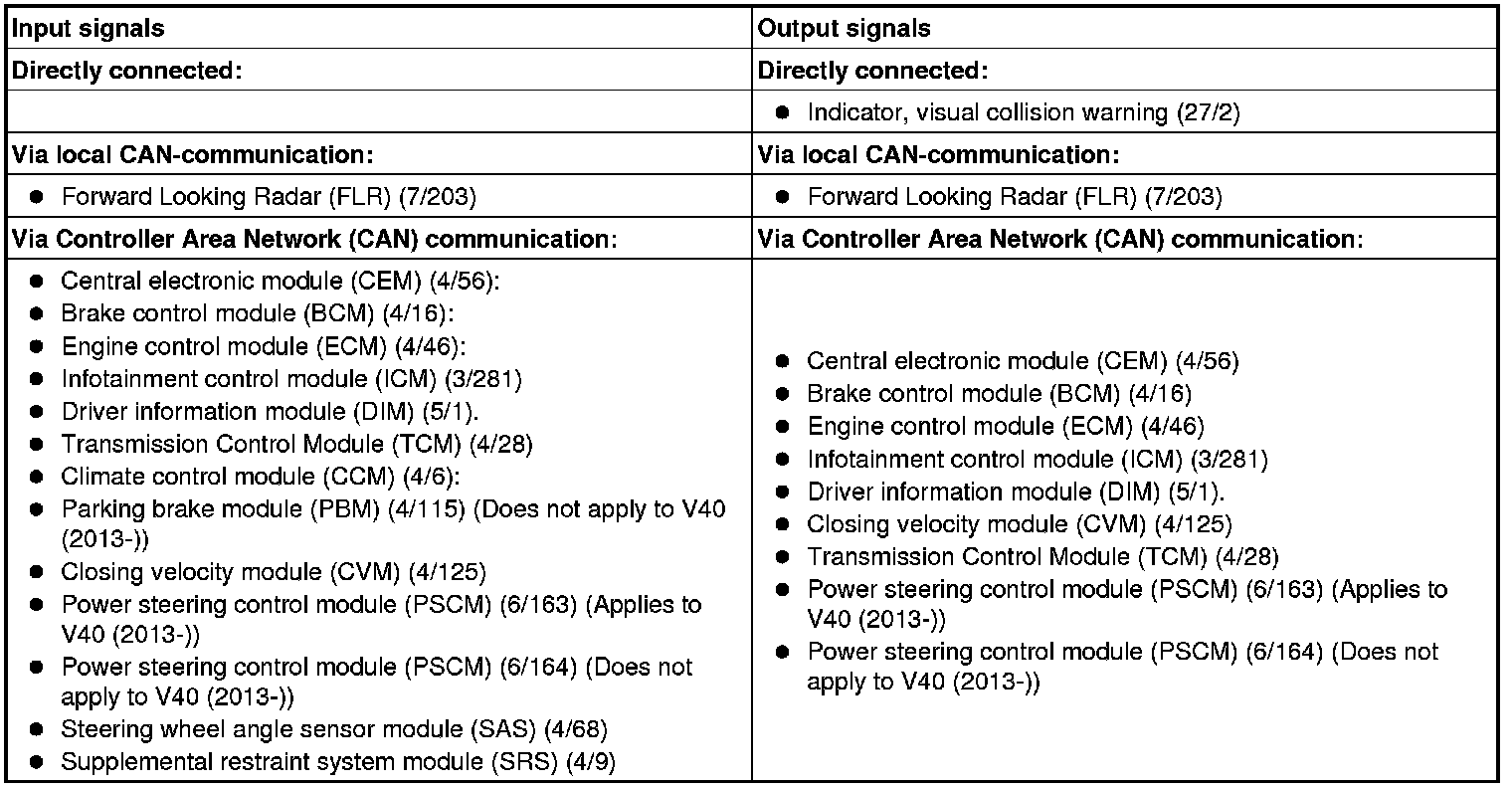

The table below summarizes the input signals to and output signals from the Forward Sensing Module (FSM). The signal types are divided into directly connected signals, serial communication and controller area network (CAN) communication. The illustration below displays the same information with the Volvo component designations.
