Part 2
Handsfree, Microphone, swan neck

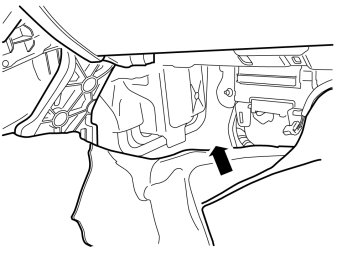

- Route the cable on the left side of the opening for the glove box.
- Find the foam tape with connections for the Bluetooth system. Cut the cable tie and open the foam tape.
- Loosen existing connection to the microphone.

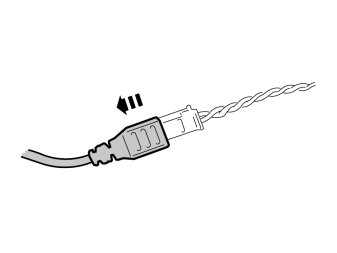

- Connect the new microphone cable. Reinstall the foam tape and secure with a new cable tie.
Note! Also secure the extra length of the microphone cable with the foam tape.
Reinstall:
- the gear lever panel
- the glove box
- the sound barrier
- the side panels on the centre console.
Applies to C30, S40, V50 and C70
- Turn the ignition switch to position 0.
Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.
- Fold aside the floor mat on both sides of the tunnel console.
- Find the headrest's two locks on the back of the driver's seat. Press in the catches and pull the headrest upwards at the same time.

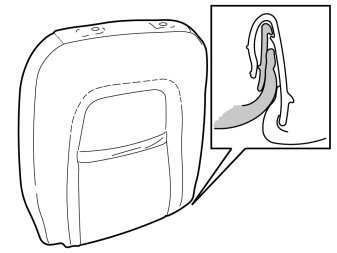

- Find the grip strip (consists of two different strip profiles that are hooked into each other) in the bottom edge on the upholstery.

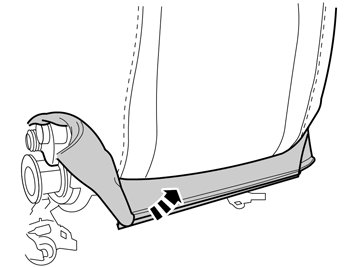

- Get a weatherstrip tool and pry apart the strips so that the catch (1) releases.
- Pull out the rear part of the upholstery with strip (2).

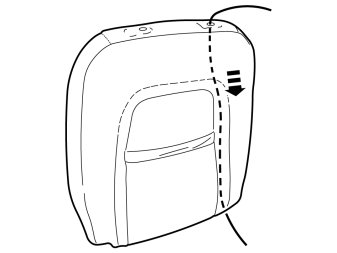

- Insert a curtain wire or similar from above and down on the back of the seat back, between the upholstery and padding.
- Tape the connector from the microphone cable to the end of the wire.
- Pull through the cable.
- Disconnect the cable from the wire.
- Place the microphone's bracket over the hole on the backrest.
- Point the microphone arm 45° forward. Press down the headrest so that it locks into place.
- Check that the headrest has locked into place by pulling it upwards.

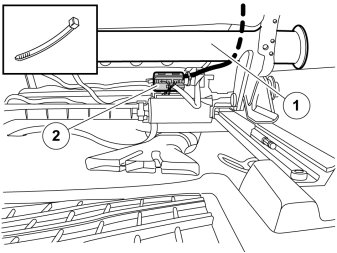

- Route the cable in front of the tube (1).
- Secure the cable with a cable tie to the large connector (2).
- Reinstall the upholstery for the backrest.

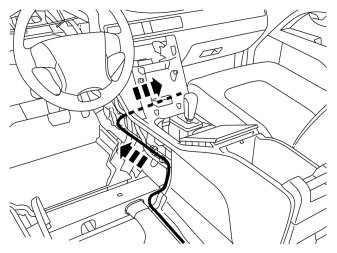

- Lay the cable in the carpet joint. Route the cable forward and across in the tunnel console.
Note! It is important that the cable has the right length so that the seat can move back and forth freely.

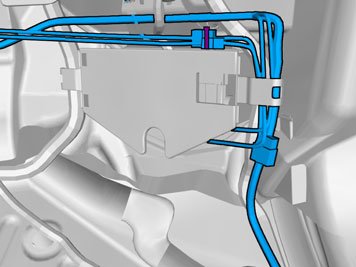

- Pull out the cable from the tunnel console. Find the foam tape with connections for the Bluetooth system, located behind the tunnel console. Open the foam tape.
- Loosen existing connection to the microphone.
- Connect the new microphone cable. Reinstall the foam tape.
Note! Also secure the extra length of the microphone cable with the foam tape.
- Fold back the floor mat on both sides of the tunnel console.
Applies to the S80 (07-)
- Turn the ignition switch to position 0.
Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

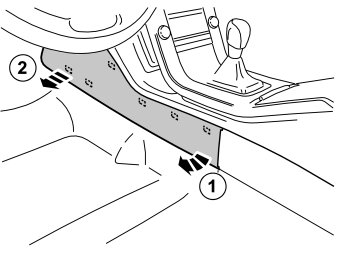

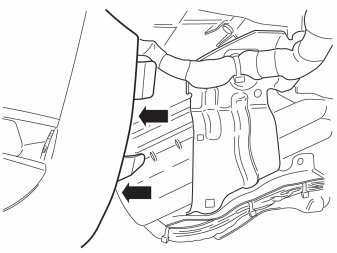

- Remove the centre console side panel by carefully pulling it off starting at the rear edge. It is attached by six clips on the inside. Also carried out on the other side.

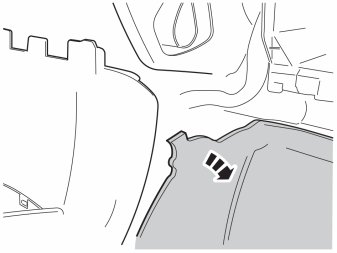

- Remove the screws and the soundproofing panel under the glove compartment. Disconnect the connector for the lighting

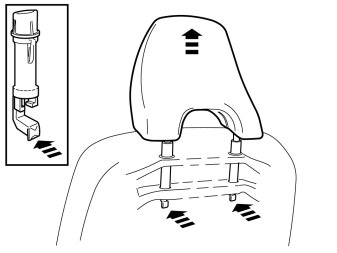

- Find the headrest's two locks on the back of the driver's seat. Press in the catches and pull the headrest upwards at the same time.
- Find the grip strip (consists of two different strip profiles that are hooked into each other) in the bottom edge on the upholstery.
- Get a weatherstrip tool and pry apart the strips so that the catch (1) releases.
- Pull out the rear part of the upholstery with strip (2).

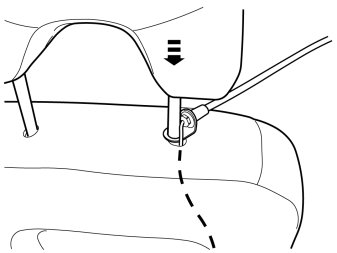

- Insert a curtain wire or similar from above and down on the back of the seat back, between the upholstery and padding.
- Tape the connector from the microphone cable to the end of the wire.
- Pull through the cable.
- Disconnect the cable from the wire.
- Place the microphone's bracket over the hole on the backrest.
- Point the microphone arm 45° forward. Press down the headrest so that it locks into place.
- Check that the headrest has locked into place by pulling it upwards.
- Route the cable in front of the tube (1).
- Secure the cable with a cable tie to the large connector (2).
- Reinstall the upholstery for the backrest.

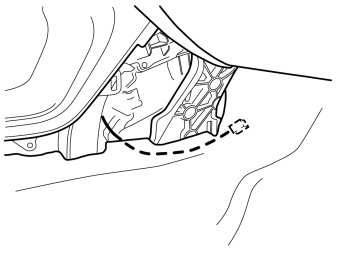

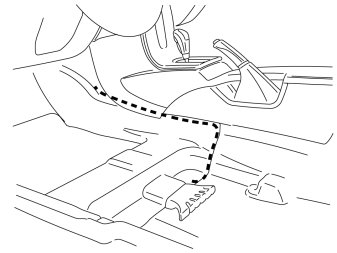

- Place the cable in the carpet joint. Pull the cable forward and all the way through the centre console. Place the cable under the floor carpet.
Note! It is important that the cable has the right length so that the seat can move back and forth freely.
- Route the cable from the centre console and forwards. Place the cable under the floor carpet.

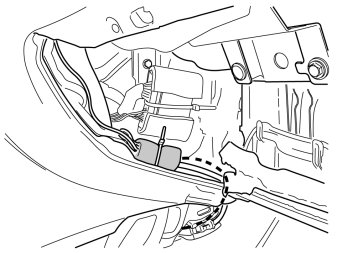

- Fold the carpet out of the way. Locate the foam tape with connections for the Bluetooth system.
- Loosen existing connection to the microphone.
- Connect the new microphone cable. Reinstall the foam tape.
Note! Also secure the extra length of the microphone cable with the foam tape.
- Replace the cable harnesses and fold back the floor carpet.
- Reinstall the side panels and soundproofing.
Applies to the S60 (11-) and XC60

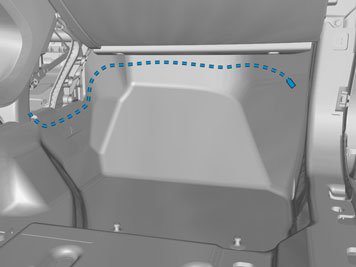

- Fold the carpet to one side.
- Insert a curtain wire or similar from above and down on the back of the seat back, between the upholstery and padding.
- Tape the connector from the microphone cable to the end of the wire.
- Pull through the cable.
- Disconnect the cable from the wire.
- Place the microphone's bracket over the hole on the backrest.
- Point the microphone arm 45° forward. Press down the headrest so that it locks into place.
- Check that the headrest has locked into place by pulling it upwards.
- Route the cable in front of the tube (1).
- Secure the cable with a cable tie to the large connector (2).
- Reinstall the upholstery for the backrest.
Reinstall the detached components in reverse order.
