Part 2
Handsfree, Bluetooth

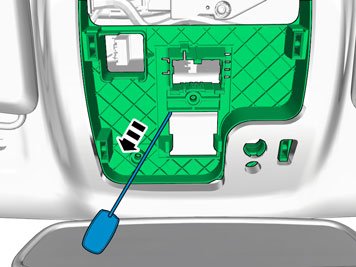

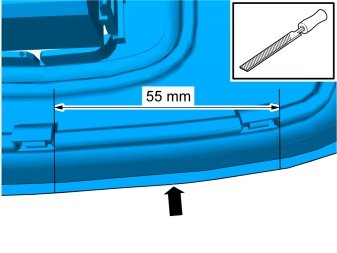

- File off any sharp edges from the ceiling lighting so that the microphone cable does not chafe.
- Remove the screws.
Applies to left-hand drive vehicles

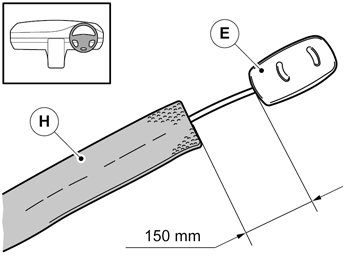

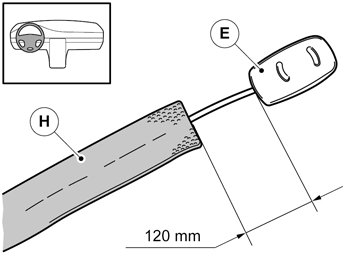

- Apply foam tape to the cable for the microphone.
Applies to right-hand drive vehicles
- Apply foam tape to the cable for the microphone.
Applies to all models

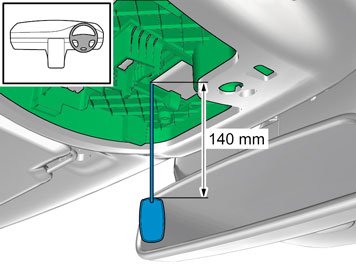

Applies to left-hand drive vehicles
Applies to right-hand drive vehicles
Applies to all models

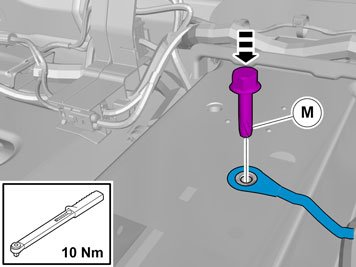

- Reinstall the screws.

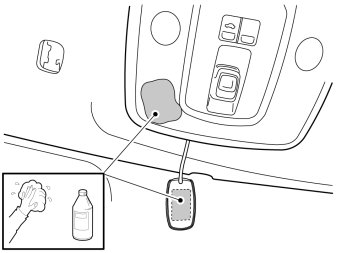

- Clean the microphone and ceiling panel as illustrated. Use a solution of 25% isopropanol and 75% water as well as a lint free cloth.
- Allow to dry.

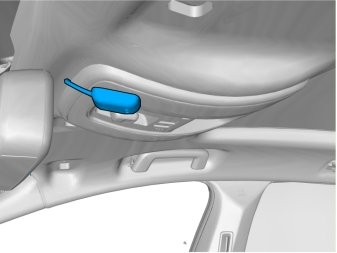

Caution! Direct the microphone towards the driver.

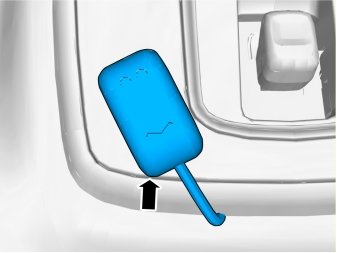

Caution! Position the corner of the microphone edge to edge with the lens of the ceiling lighting.

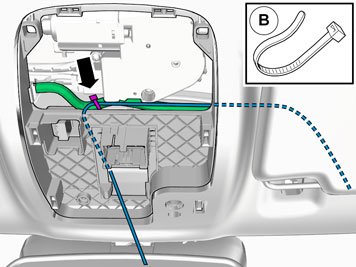

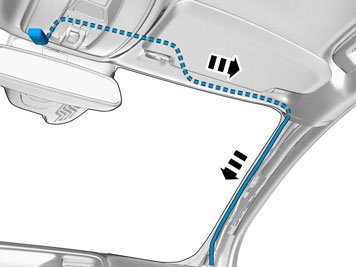

- Feed in any cable excess.

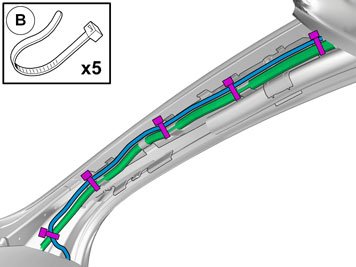

Warning! The function of the inflatable curtain can be affected if the cable is routed differently.
- Cut off the mounting wings from the sun visor's holder.
- Carry out on both sides.

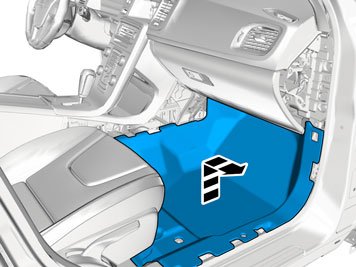

- Remove the floor mat.

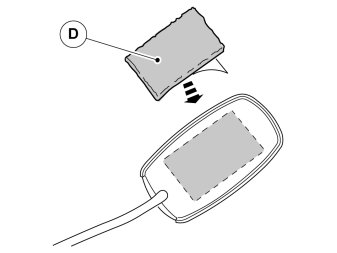

- Tear off the excess foam tape.

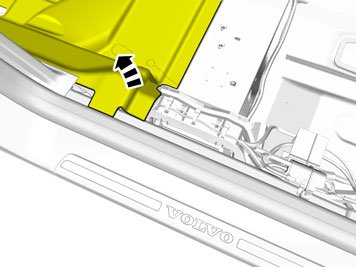

- Fold the carpet to one side.
Applies to left-hand drive cars

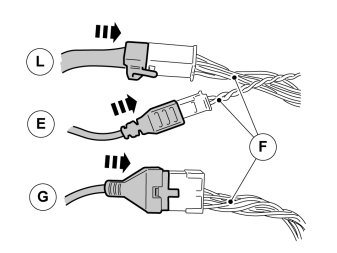

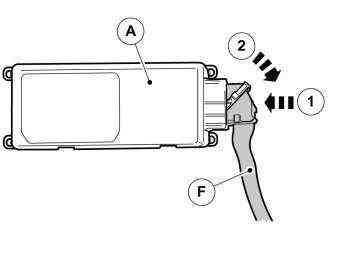

1. Connect the cable harness to the control module.
2. Lock the catch.

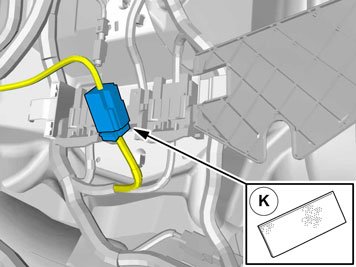

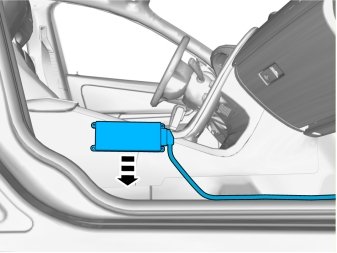

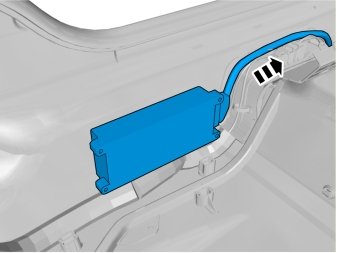

- Apply foam tape to the front of the control module.
Note! The control module's connection must point forwards with the foam tape towards the sill.
Applies to right-hand drive cars
1. Connect the cable harness to the control module.
2. Lock the catch.
- Apply foam tape to the front of the control module.
Applies to all models

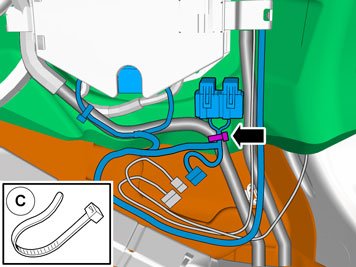

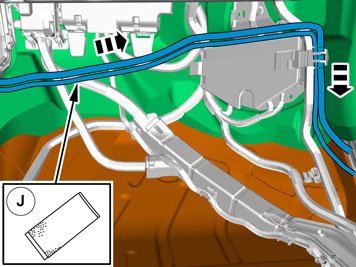

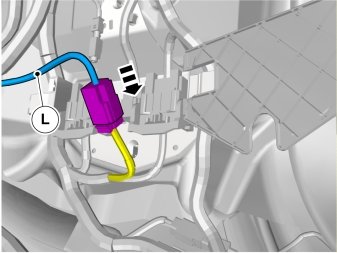

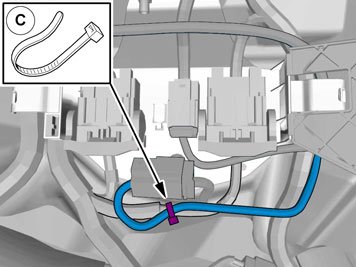

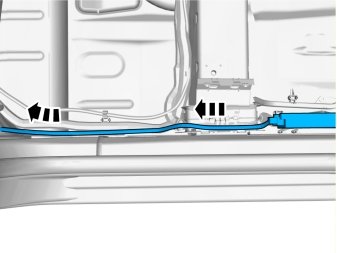

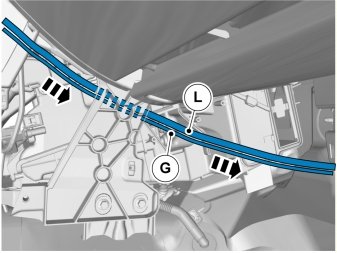

- Place the connectors and cables as illustrated.
- Reinstall the removed components in reverse order.
- Download software (application) for the accessory's function Programming and Relearning
Check the function as follows:
- Turn the ignition key to position I.
- Turn on the radio.

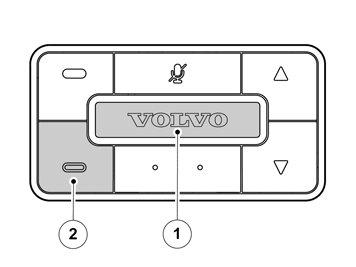

- Check that the control panel for Bluetooth lights up.
- Press the button (1) in the middle of the control panel. The radio should mute and a voice should be heard.
- Press the button (2). The voice should now stop and the audio from the radio returns.
