Part 1

Handsfree, Bluetooth

INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Handsfree, Bluetooth

Note! These installation instructions apply to left-hand drive vehicles. When installing in a right-hand drive vehicle, carry out the procedure on the opposite side and/or mirrored. Where the version differs, right-hand versions are also displayed with text and images.When installing Velcro fasteners/tape, the underlying surface must be kept at a temperature of at least +20° C (68°F).Place the manual for this accessory in a suitable place in the vehicle.There may be components in the accessories kit that are not used for this installation.

- Tightening torque screws: 40 Nm.

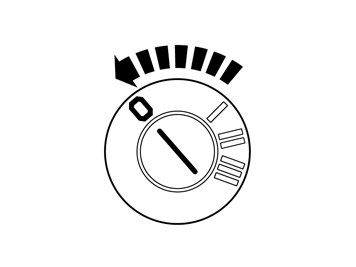

Caution! Wait at least one minute before unplugging the connectors or removing other electrical equipment.

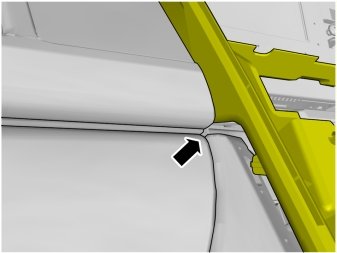

- Remove the panel.

- Fold back the mat.

- Unhook the cable harness clips.
- Unplug the connector.

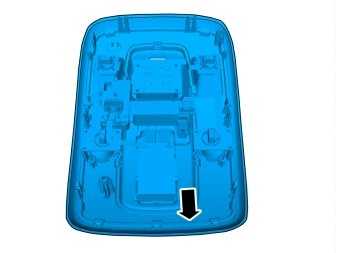

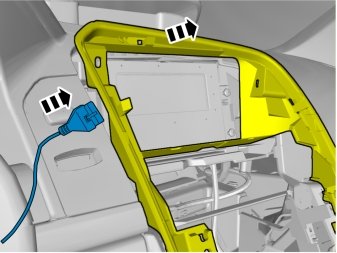

- Remove the panel.

Applies to cars with the Four-C system

- Remove the panel.

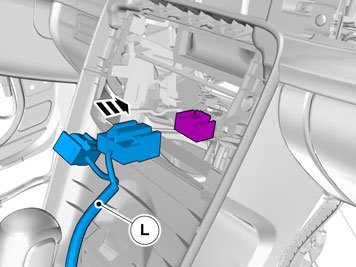

- Unplug the connector.

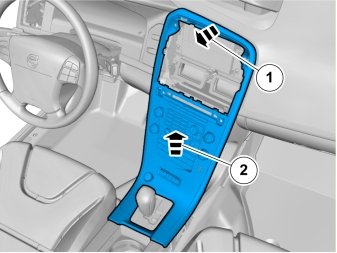

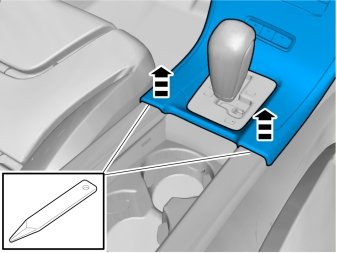

Illustration A

- Detaching the panel.

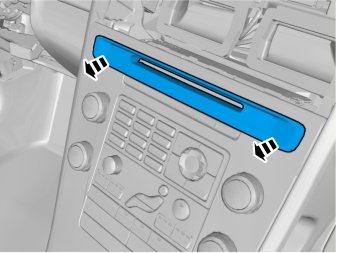

Illustrations B and C

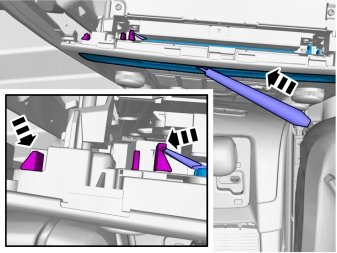

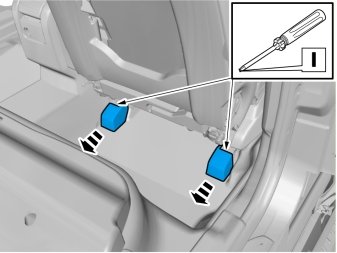

- Release the hooks using a screwdriver.
- Press the panel out.

Note! One side at a time.

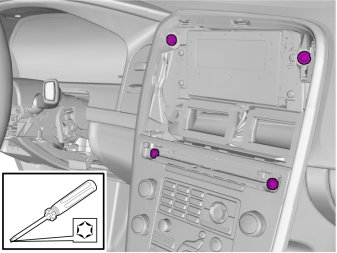

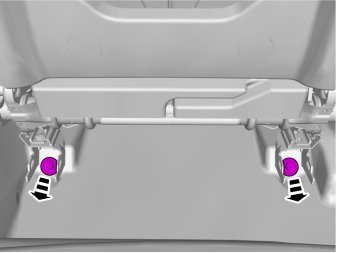

- Remove the screws.

- Remove the screws.

Applies to cars with an automatic transmission

- Release the shift-lock function.

Applies to all models

Applies to cars with manual gearbox

Applies to all models

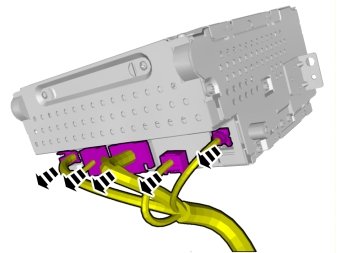

- Disconnect the connectors. The number of connectors, cables and cable ties can vary depending on the vehicle's equipment level.

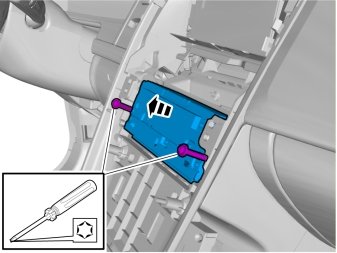

- Remove the screws.

- Disconnect the connectors. The number of connectors, cables and cable ties can vary depending on the vehicle's equipment level.

- Wrap foam tape (H) around the cable to the control panel (G).

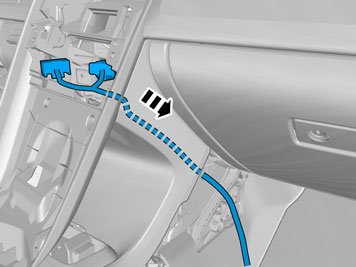

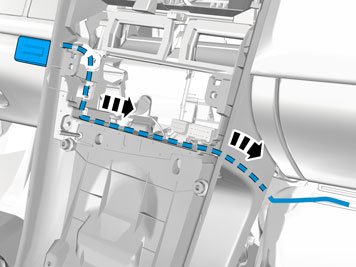

- Position the cable in the cut-out between the dashboard and the centre console.

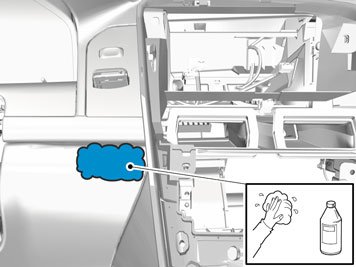

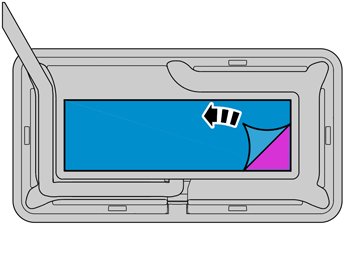

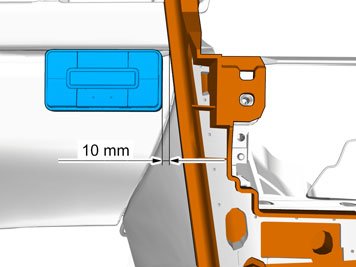

- Clean the area on the dashboard as illustrated, which corresponds to the size of the double-sided adhesive tape. Use a solution of 25% isopropanol and 75% water, as well as a lint free cloth. Wipe dry carefully, do not rub.
- Allow to dry.

Caution! In cases where the area is heavily soiled or treated with cockpit shine, first clean using a washing up detergent.

Applies to left-hand drive vehicles
