Part 3

Handsfree, bluetooth

Left hand drive vehicles

Right-hand drive vehicles

The part is not to be reused.

Install component that comes with the accessory kit.

Tear off the excess foam tape.

Scribe/mark up

Reinstall the screws.

Right-hand drive vehicles

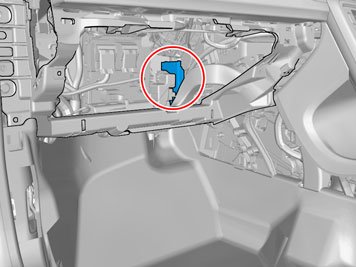

Remove the screws.

Unhook the cable harness clips.

All vehicles

Left hand drive vehicles

Right-hand drive vehicles

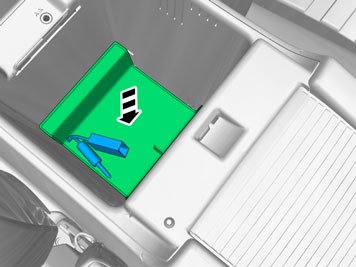

Fold the carpet to the side.

Secure the control module with two assembled cable ties.

All vehicles

Reinstall the removed parts in reverse order.

Download software (application) for the accessory's function. Programming and Relearning

Setting

Display orientation is set for left hand drive cars (managed with right hand) and the language is set to British English.
1. Turn off the ignition.
2. Wait for the display to go out.
3. Turn the ignition on while holding the button nearest the display in for at least 5 seconds. "Installer Menu" should now appear on the display.
4. Display Orientation and Language is changed with the control panel knob.
5. Press the knob to select a menu and to change display orientation and language.
6. Return to the previous menu by pressing the upper button with three dashes.
7. Also perform an Install test, follow the on-screen instructions.
8. Turn off the ignition.
9. Wait for the display to go out.
10. Turn on the ignition.
11. The settings are now stored.
12. Turn off the ignition.

Check

1. Turn on the ignition.
2. The display on the control panel must now light up, however after some delay.
3. Turn on the radio.
4. Turn the control panel knob. The radio must mute and a voice will say the actual menu text.
5. Turn off the ignition.
6. The display must now go out, however after some delay.

Kit Numbers:
31337677
31337685
31357749
