Part 2

Handsfree, bluetooth

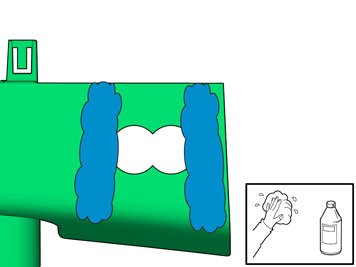

Clean the surface.

Use: Isopropanol, 1161721

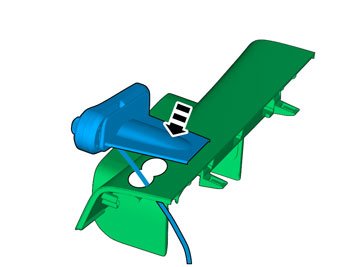

Remove the protective film.

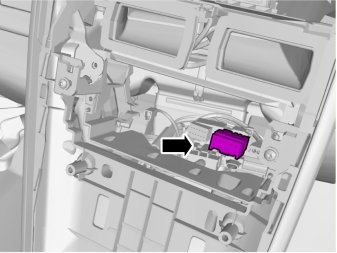

Locate the connector.








Turn once.

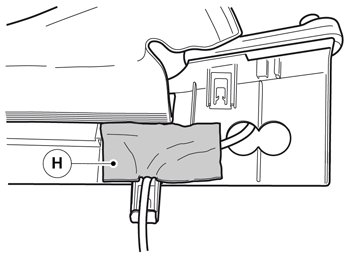

Tear off the excess foam tape.

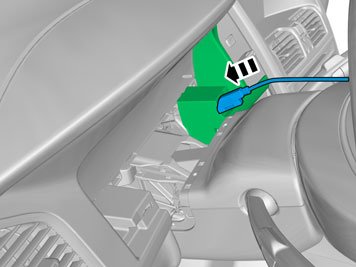

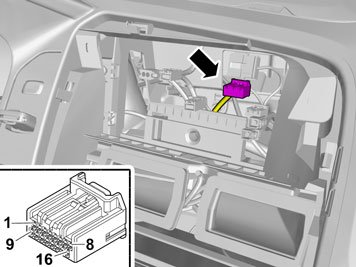

Locate the connector.




Release the connector's secondary lock.

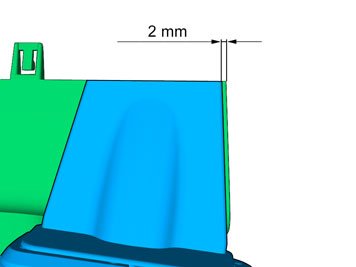

Lift approximately 2 mm.

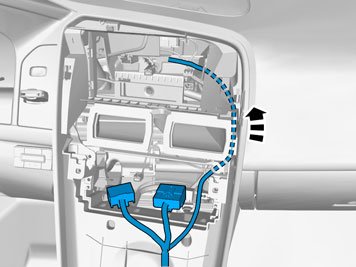

Connect the cable harness.
Depress the secondary lock.

Removal




Remove the panel.




Remove the weatherstrip.





Caution! The front and upper sill panel must be removed and installed as one unit.
























Repeat on the other side.




Repeat on the other side.

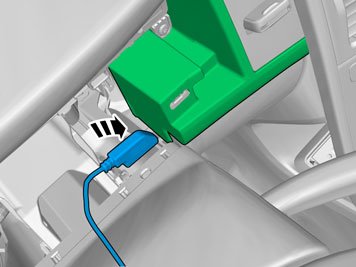

Disconnect the connector.

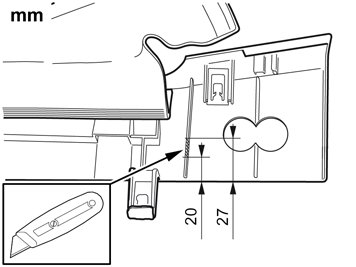

Deburr edges

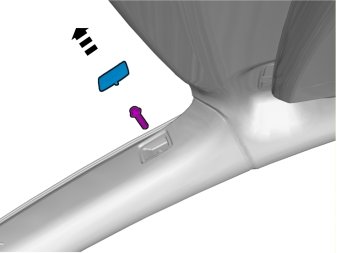

Remove the screws.
























Turn once.
Tear off the excess foam tape.
























Reinstall the screws.





















Note! The microphone must be directed towards the driver.









Installation

















Accessory installation








Fold the carpet to the side.
















Disconnect the connector.
