Part 1
Handsfree, bluetooth
Equipment
Component overview
Operation number: 39425
Information
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.
Conditions
These installation instructions show installation on left hand drive cars.
When installing on right-hand drive cars, perform the procedures on the opposite side and/or mirrored.
Where the procedure differs, the right-hand version is also shown with text and image.
When installing Velcro tape the surface must maintain a temperature of at least +20 ° C (68°F).
Place the manual for this accessory in a suitable location in the car.
Set the ignition key to position 0.
Remove the panel.
Fold the carpet to the side.
1. Unhook the cable harness clips.
2. Disconnect the connector.
Remove the panel.
Disconnect the connector, if applicable.
Disconnect the connector.
Remove the screws.
Remove the screws.
Cars with automatic transmissions
Release the shift-lock function.
Cars with manual transmissions
Release the lock ring which is located inside the gear lever boot.
All vehicles
Disconnect the connectors.
Remove the screws.
Disconnect the connectors.
Release the lock.
Repeat on the other side.

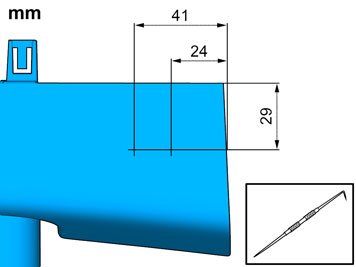

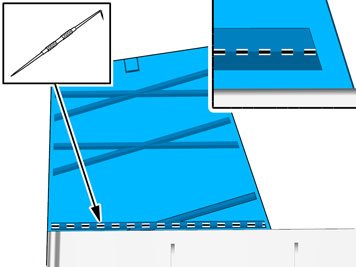

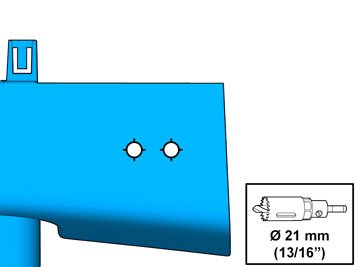

Scribe/mark up

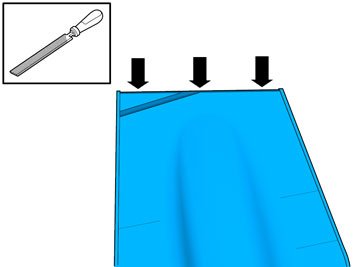

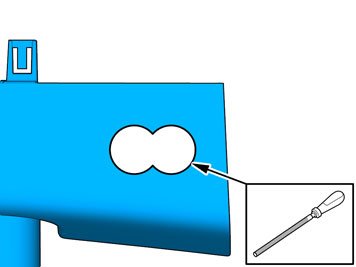

Deburr the hole edges.
Repeat on the other side.
Left hand drive vehicles

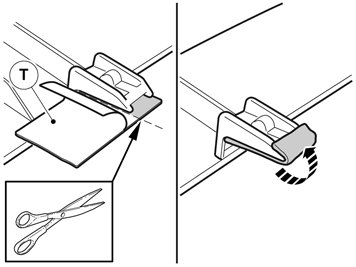

Remove the protective film.
Right-hand drive vehicles
Remove the protective film.
All vehicles

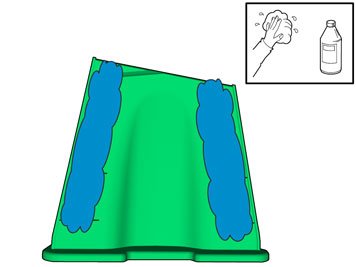

Clean the surface.

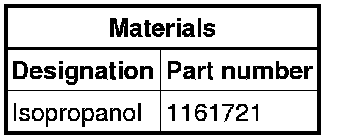

Use: Isopropanol, 1161721
Remove the protective film.
