Part 3

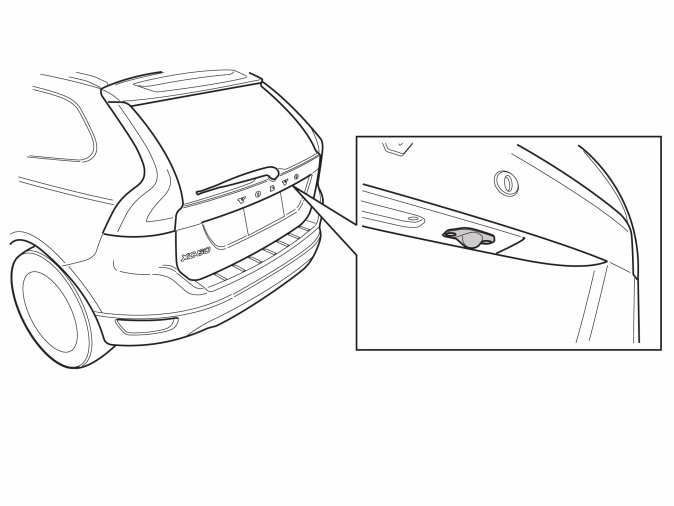

Parking assistance, camera, rear




951 2932 Tension spring 951 2932 Tension spring

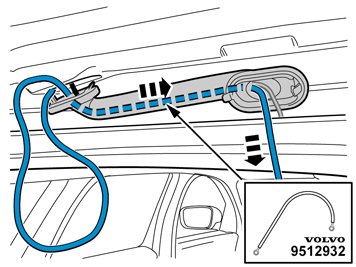

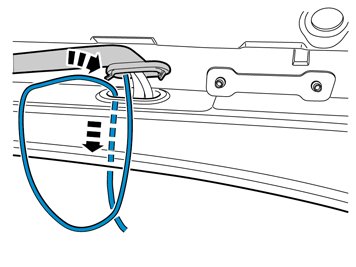

1. Fold the insulation to one side.

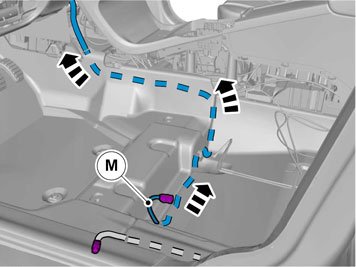

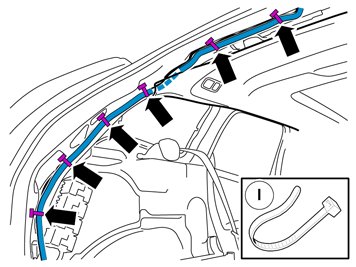

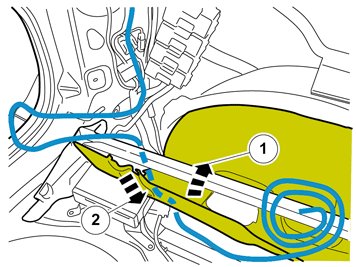

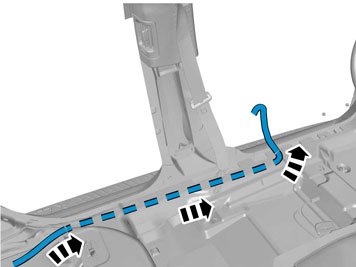

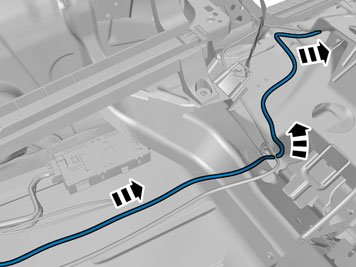

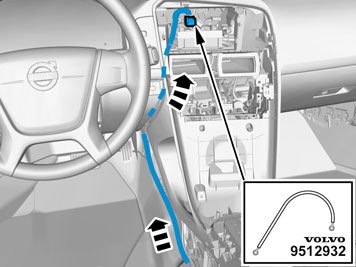

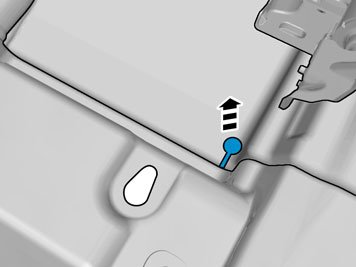

2. Route the cable harness to the existing cable harness.








Fold the insulation to one side.




Route the cable harness to the existing cable harness.




















951 2932 Tension spring 951 2932 Tension spring





Vehicles with 5 inch ICM-display





Note! If the connection is missing the display must be replaced.





All vehicles





Note! The number of connectors, cables and cable ties can vary depending on the vehicle's equipment level.

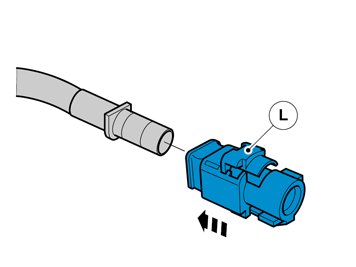

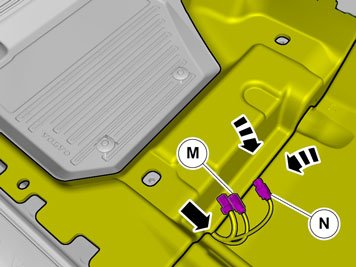

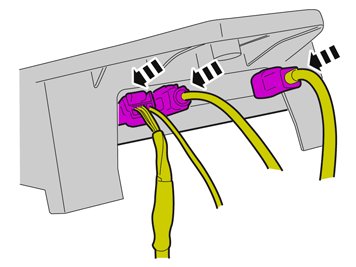

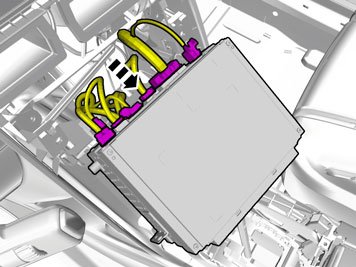

Connect the connectors.

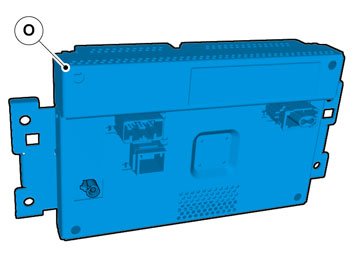

Vehicles with 5 inch ICM-display

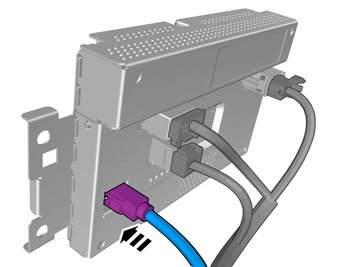

Connect the connector.

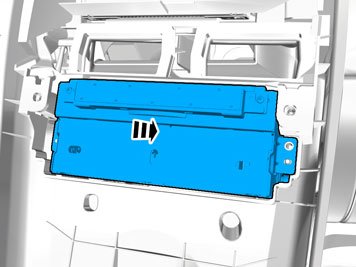

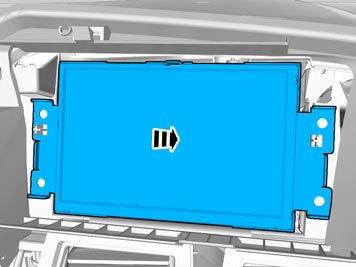

Vehicles with 7 inch display

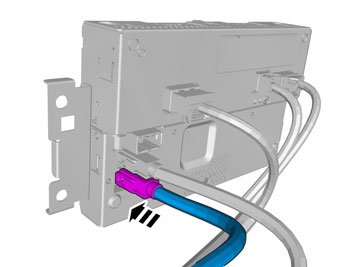

Connect the connector.

All vehicles

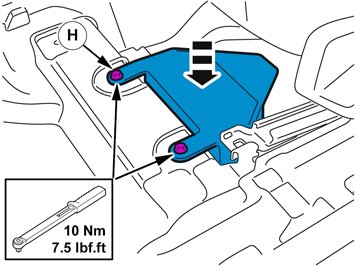

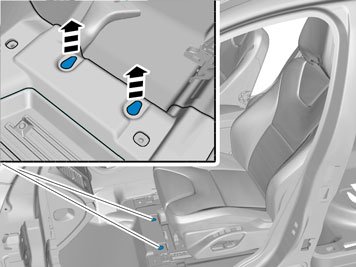

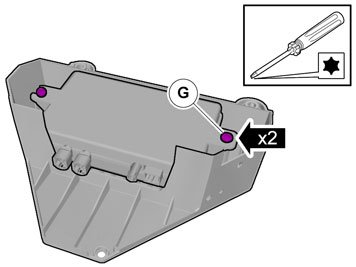

Install the screws.





Note! The number of connectors, cables and cable ties can vary depending on the vehicle's equipment level.

Connect the connectors.








Install the screws.

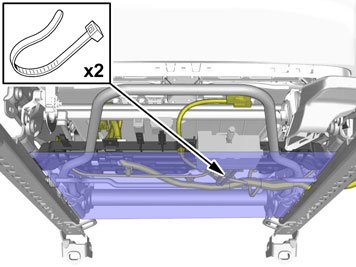

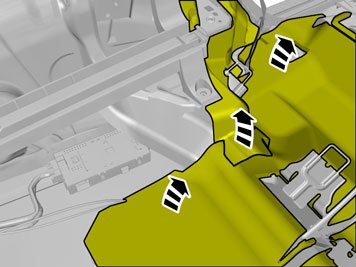

Fold the carpet to the side.

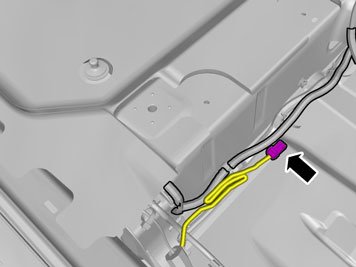

Locate the existing connectors in the vehicle's cable harness.





Caution! Make sure that no part of the wiring harness is trapped.

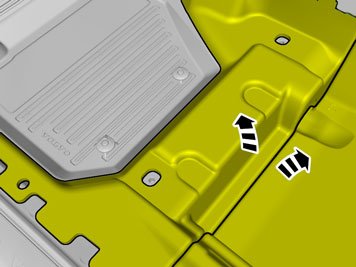

Fold the floor carpet back.








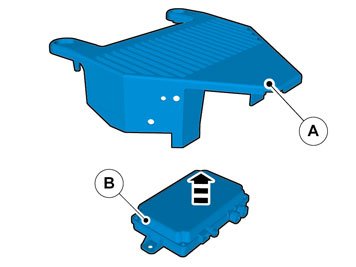

Install the screws.




Connect the connectors.

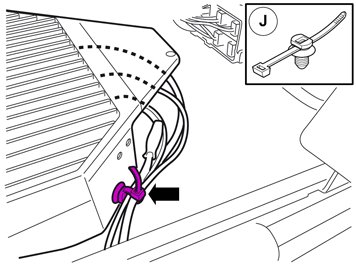

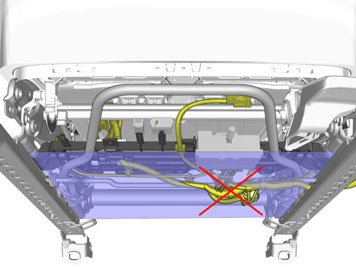

Check that the cable harness does not hang down and touch the newly installed control module.

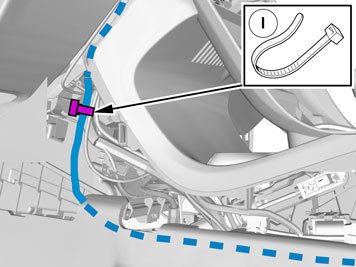

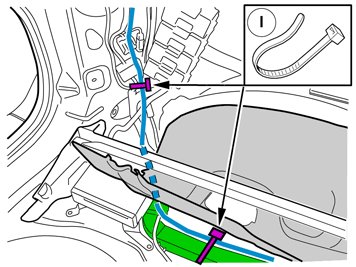

Push up and secure the cable harness as necessary.

Reinstall the removed parts in reverse order.

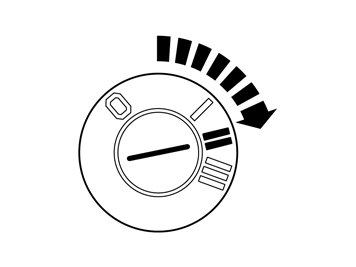

Set the ignition key to position II.




download software (application) for the accessory's function. Programming and Relearning

Calibrate parking camera

Kit Numbers:
31296156
31359261
31373226
31373267
31373132
