Information And Entertainment Display

Operation number: 39720-239350-2

Information and Entertainment Display

Removal

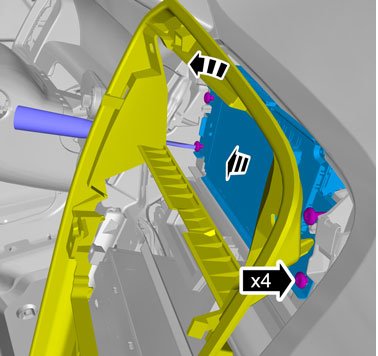

Remove center console Refer to: Center console, TF-80SC AWD, TF-80SC Center Console

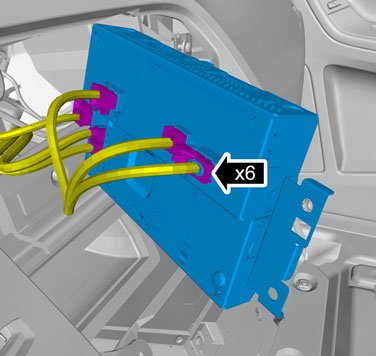

Caution! Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

Note! Make sure that the optical connectors are clean and free of foreign material.

Note! Make sure that the component terminals are not bent or damaged.





Caution! Make sure that the component is positioned correctly.

Note! Use a new seal.

Installation

To install, reverse the removal procedure.

Order and download software Programming and Relearning
