Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information

Condition
The driver door/passenger door module (DDM/PDM) communicates with the control module in each rear door via LIN-communication. The control module left rear door/right rear door (LDM/RDM) supplies the control module driver's door/passenger door (DDM/PDM) with information about status of the button for the power window.
The diagnostic trouble code (DTC) is stored if the control module detects that:
- The button for power window in left or right rear door has been pressed in for more than 20 seconds.

Note! The following also applies to factories:

- Signal missing between button for power window in left or right rear door and control module left rear door/right rear door (LDM/RDM).
The control module's test for the diagnostic trouble code (DTC) starts in the event of:
- Control module supplied with power.

Note! The following also applies to factories:

- Self-test

Note! The control module can only detect the fault once the test has been started and the diagnostic trouble code (DTC) is stored when the conditions are met.





Substitute value
- None.

Possible source

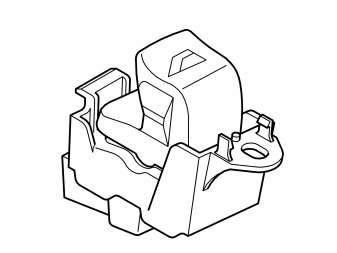

- Button for power window in left or right rear door has jammed in pressed position.
- Damaged control panel in left or right rear door.

Note! The following also applies to factories:

- Open circuit on signal line between button for power window in left or right rear door and control module left rear door/right rear door (LDM/RDM).

Fault symptom[s]
- Rear door power window does not work
