Fault-Tracing Information

Fault-tracing

Checking the connectors and hose connector
Check the hose connectors on the intake manifold for damage and leakage.

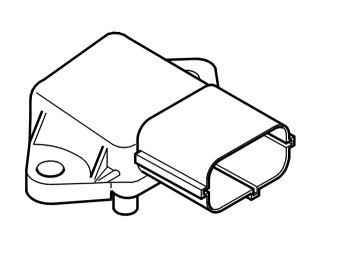

Check the connector and terminals on the pressure sensor. Check for contact resistance. Check for oxidation.
Remedy as necessary.

Other information
- Checking wiring and terminals Checking Wiring And Terminals









Continue - Verification

-------------------------------------------------

Verification




Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off
- Reinstall the connectors, components etc.
- Ignition on
Read off the pressure sensor signal for intake pressure and the atmospheric pressure sensor signal by clicking on the VCT2000 symbol.
Check that the values correspond. The atmospheric pressure sensor signal is used as a reference value in this check.





Is the value within its permitted range?

Yes - VERIFIED

No - VERIFICATION FAILED

------------------------

VERIFICATION FAILED - Fault-tracing information

VERIFIED - DONE

-------------------------------------------------

Fault-tracing information

FAULT-TRACING FAILED - DONE

Attempt New Test - Checking the connectors and hose connector

-------------------------------------------------
