A/T - S60 T5 TCM Parameter Information

Technical Journal

TITLE:
MY 2013 S60 T5 Transmission Control Module Parameters
in VIDA 2012C

CAR MARKET:
United States

ISSUING DEPARTMENT:
Technical Service

REF NO:
TJ 26892

ISSUE DATE:

YEAR
2012

MONTH
10

DAY
04

PARTNER:
3 US 7510 Volvo Cars North America

FUNC DESC:
Control system; control unit

FUNC GROUP:
4376

"Fixed Right - First Time"

Attachment

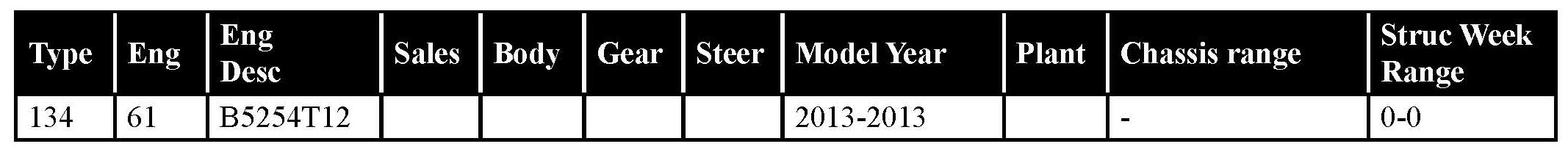

Vehicle Type

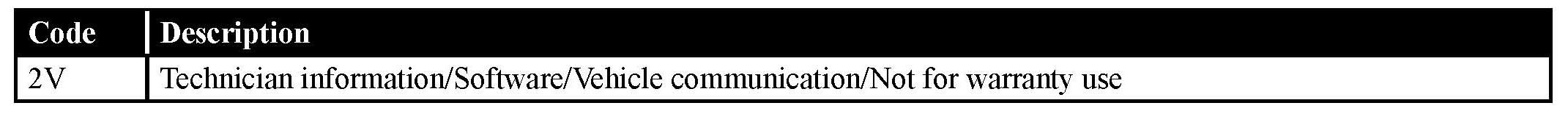

CSC Customer Symptom Codes

DTC Diagnostic Trouble Codes

Text

Note!
If using a printed copy of this Technical Journal, first check for the latest online version.

DESCRIPTION:

There are no fault-tracing documents, parameters, activations, or advanced vehicle communication services available in VIDA for the profile S60(11-), 2013, TF-80SC. The text "No information available"will be displayed when accessing DIAGNOSTICS/VEHICLE COMMUNICATION/TCM.

PRODUCT MODIFICATION:
VIDA 2012D will include the correct information.

SERVICE:
To access the TCM part of the vehicle communication, please manually specify the vehicle as a 2012 S60 T5 instead.

Below is a short instruction on how to do this:

- Read out VIN of the car, under DEFINE VEHICLE tab.

- Go to tab START, click "PERFORM COMPUTER SETTINGS".

- Set "VIN Decoding" to "OFF".

- Click "CONTINUE", then "OK".

- Go to DEFINE VEHICLE tab again. (Text "VIN decoding Off" should now be displayed in red color.)

- Set Model to "S60", Year to "2012A", Engine to "B5254T5" and Transmission to "TF-80 SC".

- Click "OK". (Important since this is when the manually specified vehicle type is accepted by VIDA. The Window title is now changed to " S60, 2012A...")

- Go to tab DIAGNOSTICS.

- Go to VEHICLE COMMUNICATION, click TCM.

The tabs "Parameters", "Activations", and "Advanced" should now be available. The fault-tracing documents should also be available for TCM.
