Steering/Suspension - Clunk/Pull, Bushing In Rear Stay Broken
Technical JournalTITLE:
Clunking/pulling, Bushing in rear stay broken
CAR MARKET:
United States
ISSUING DEPARTMENT:
Technical Service
REF NO:
TJ 25336
ISSUE DATE:
YEAR
2012
MONTH
11
DAY
28
PARTNER:
3 US 7510 Volvo Cars North America
FUNC DESC:
6522
FUNC GROUP:
Cross stay
"Fixed Right - First Time"
Attachment
Vehicle Type
CSC Customer Symptom Codes
DTC Diagnostic Trouble Codes
Text
DESCRIPTION:

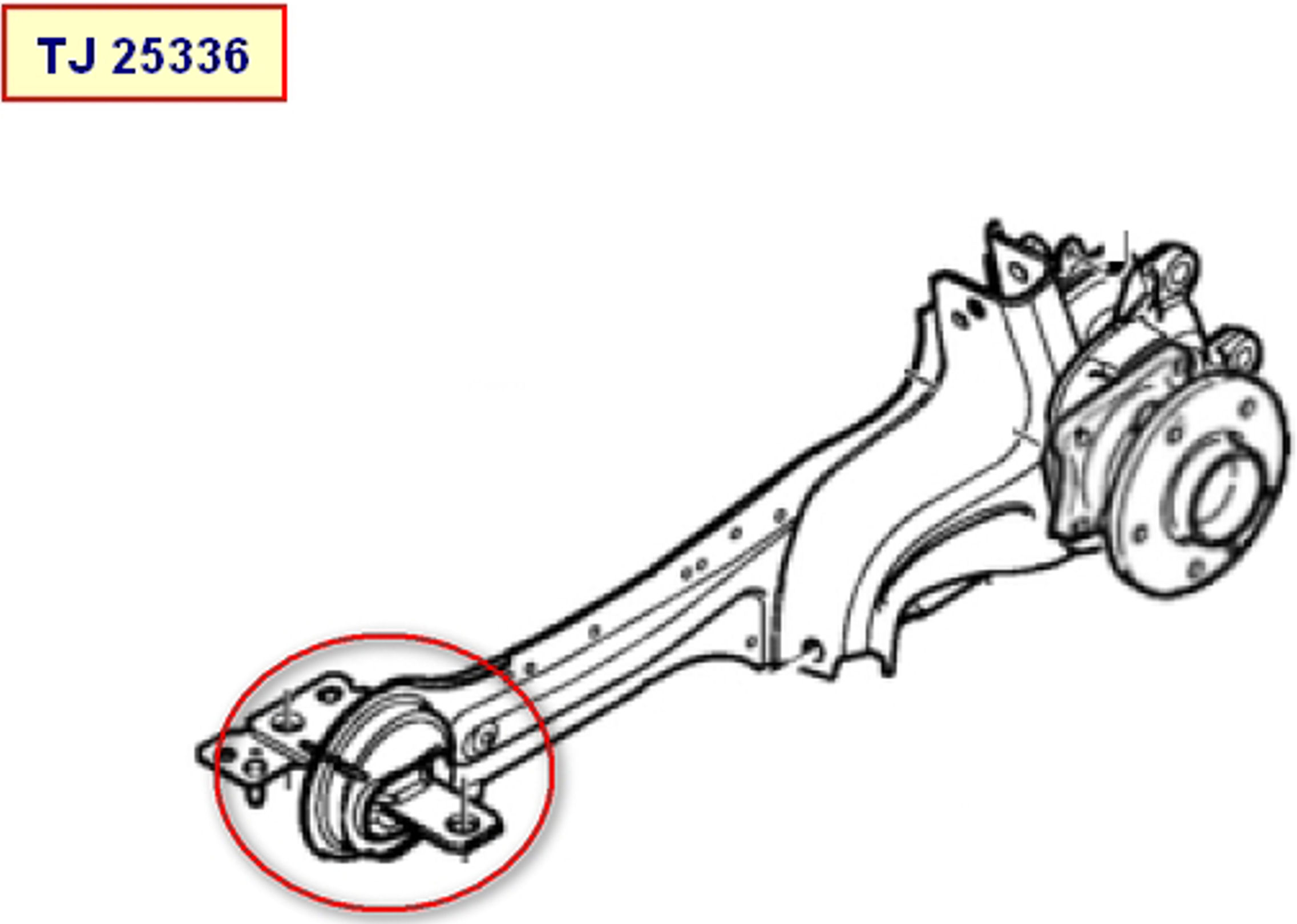

The front bushing in the rear longitudinal stay may fail, causing one or more symptoms:
- Knocking / clunking noise from rear suspension on uneven roads.
- Pulling / drifting due to incorrect wheel alignment / rear wheel camber angle.
- Unstable rear suspension on curvy roads.

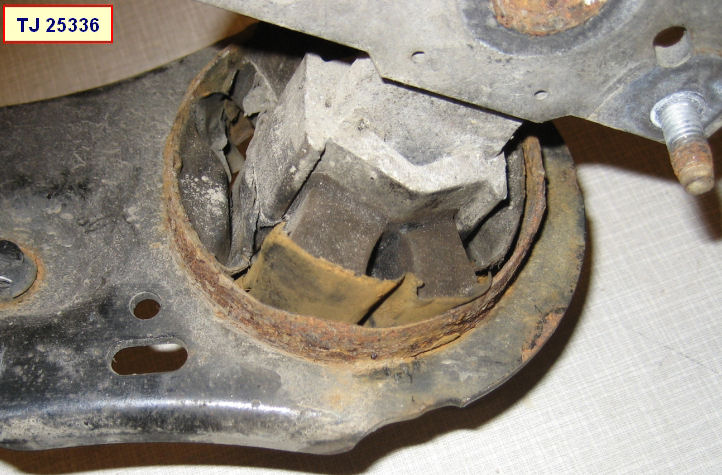

The analysis indicates that there could be some corrosion on the bushings outer metal ring, which causes the vulcanized rubber to loosen.
PRODUCT MODIFICATION:
Waxed bushings, which may reduce corrosion, were introduced in production from 2012w10.

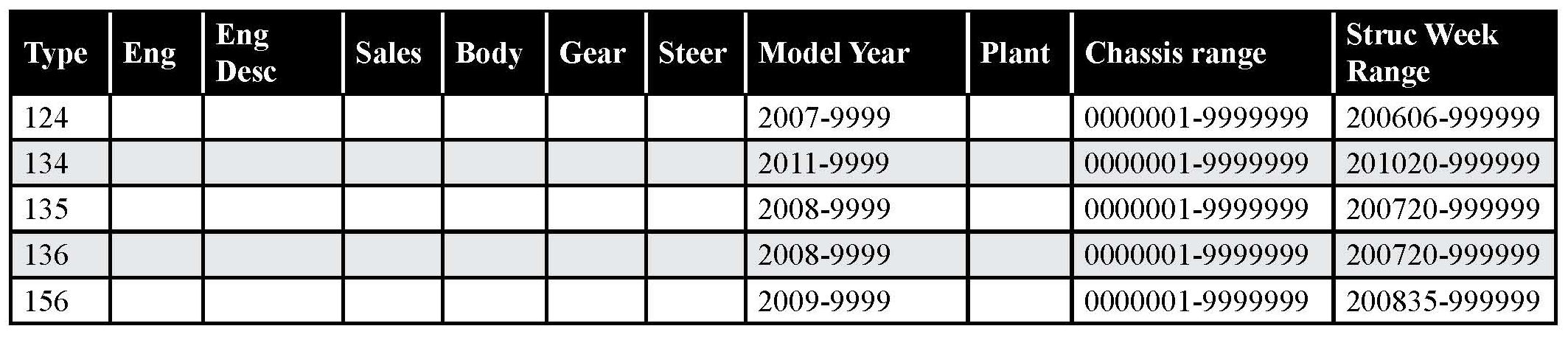

Approx. chassis breakpoints:
124-161000
135-242000
136-140000
134-134000
156-324000
SERVICE:

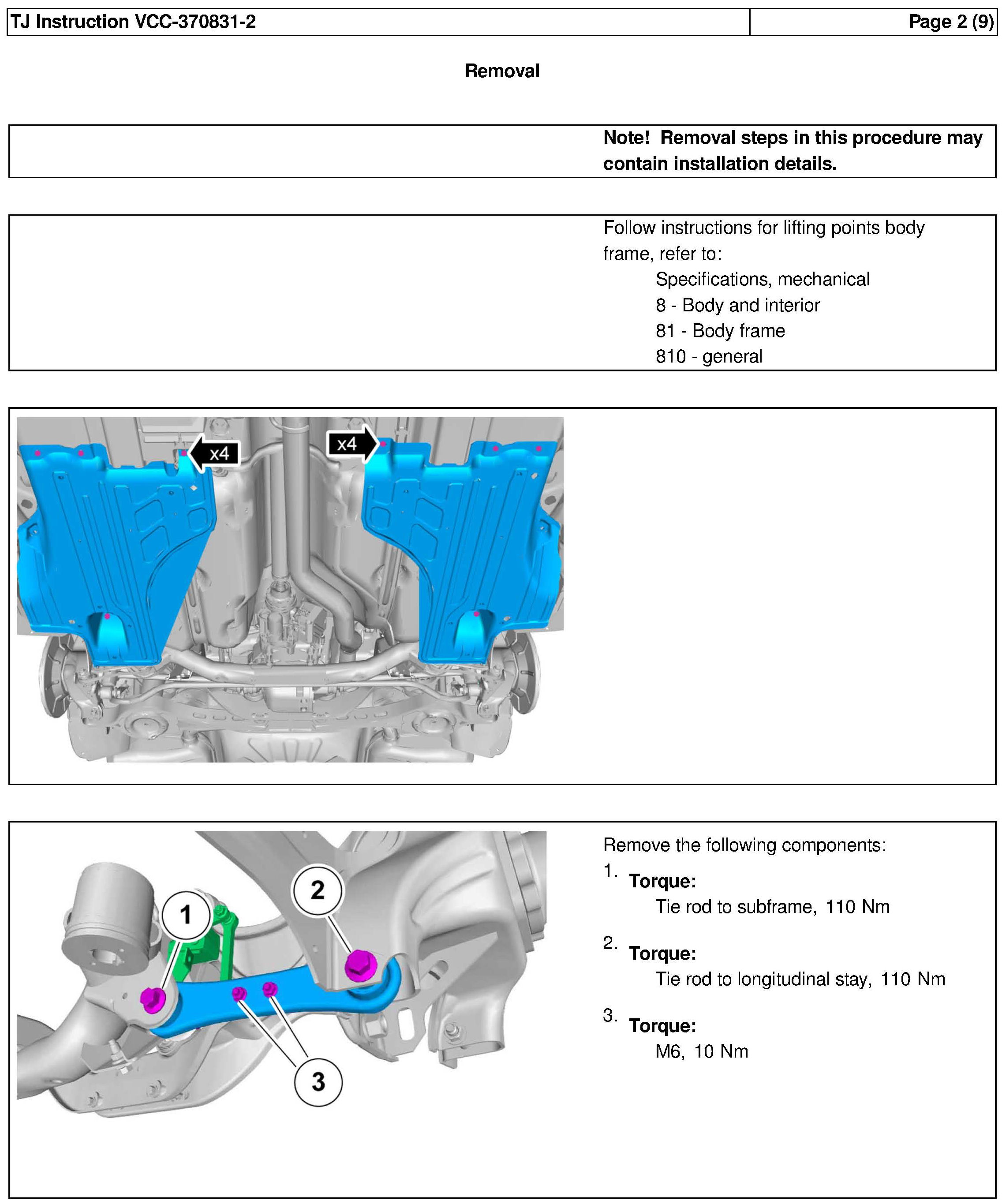

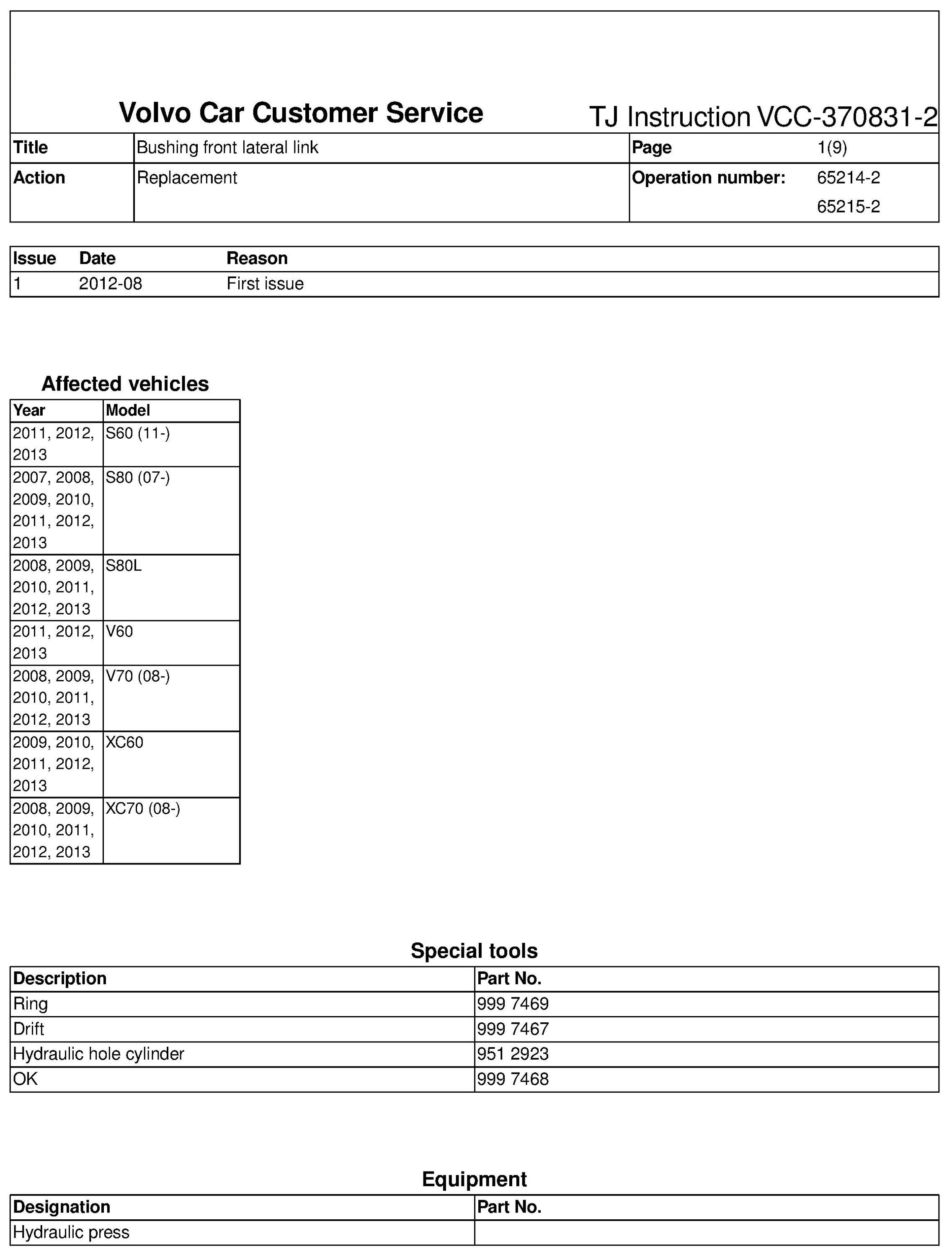

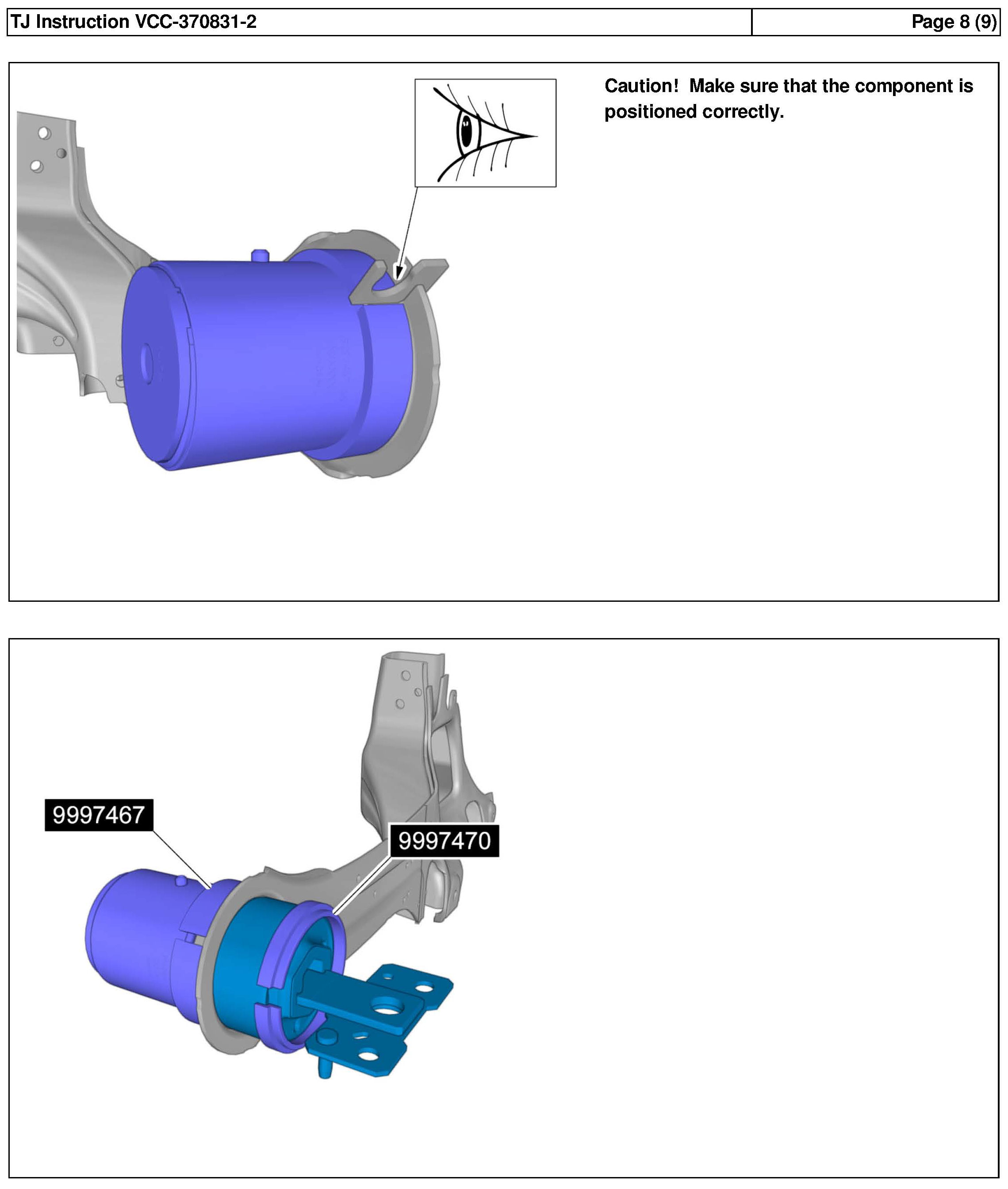

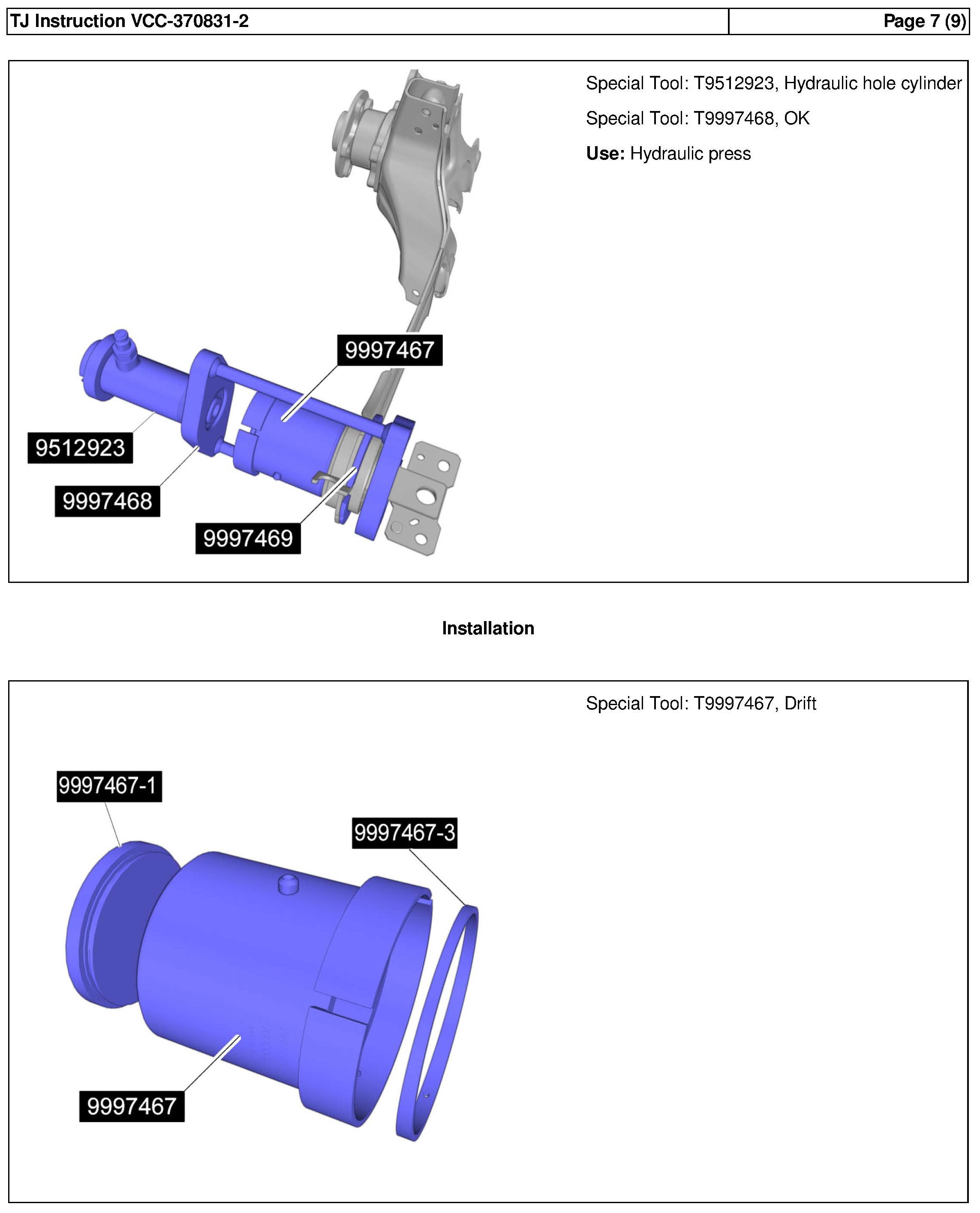

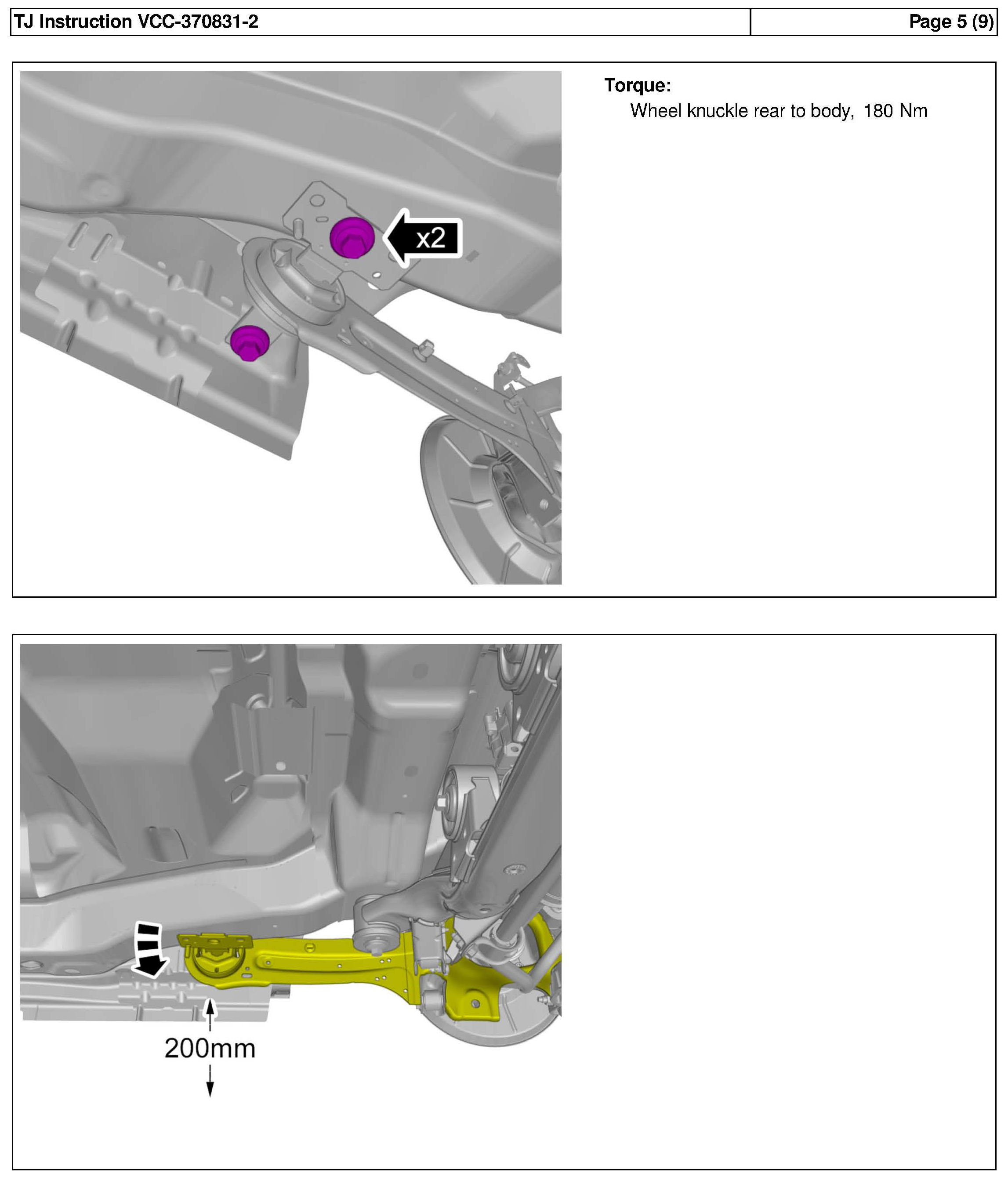

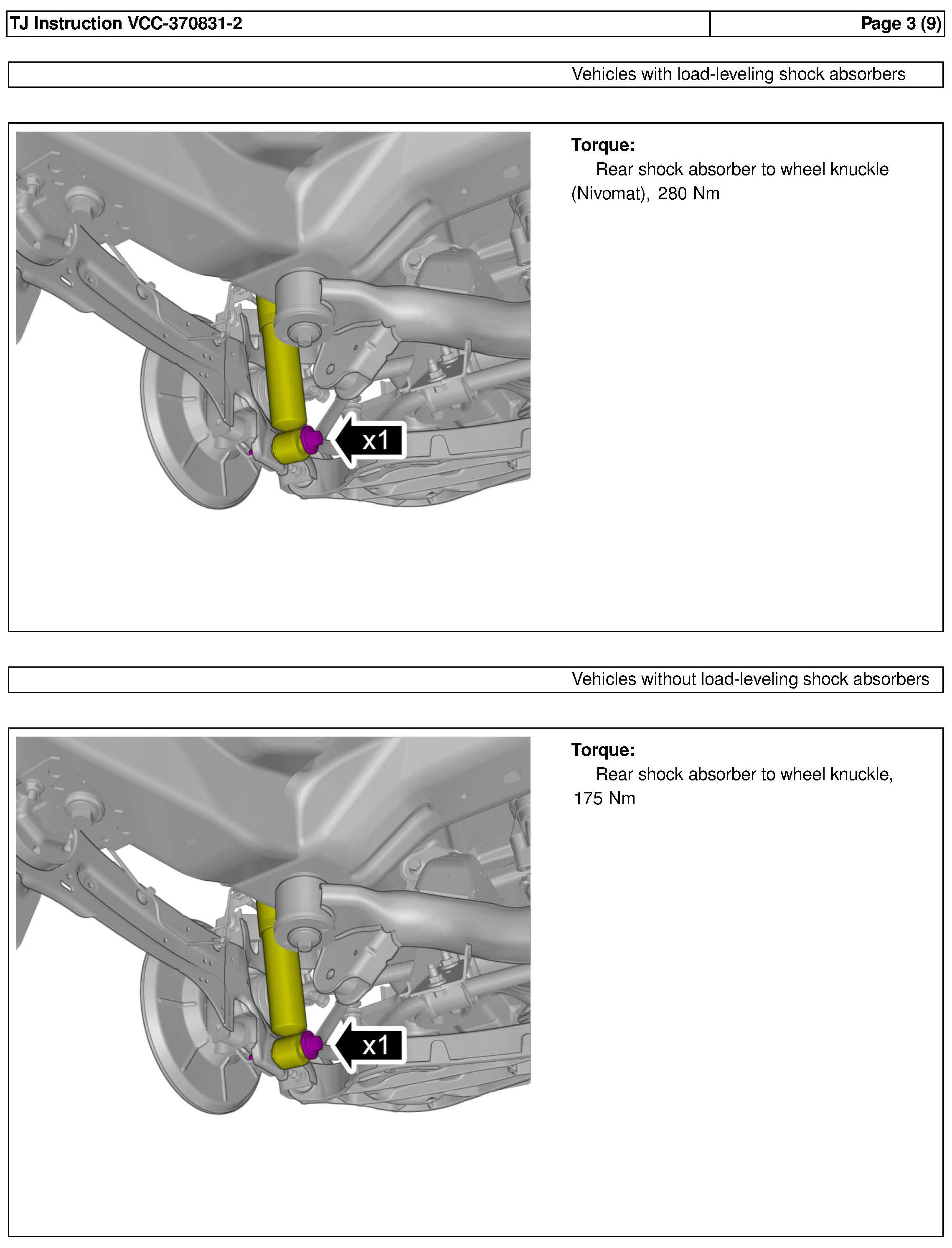

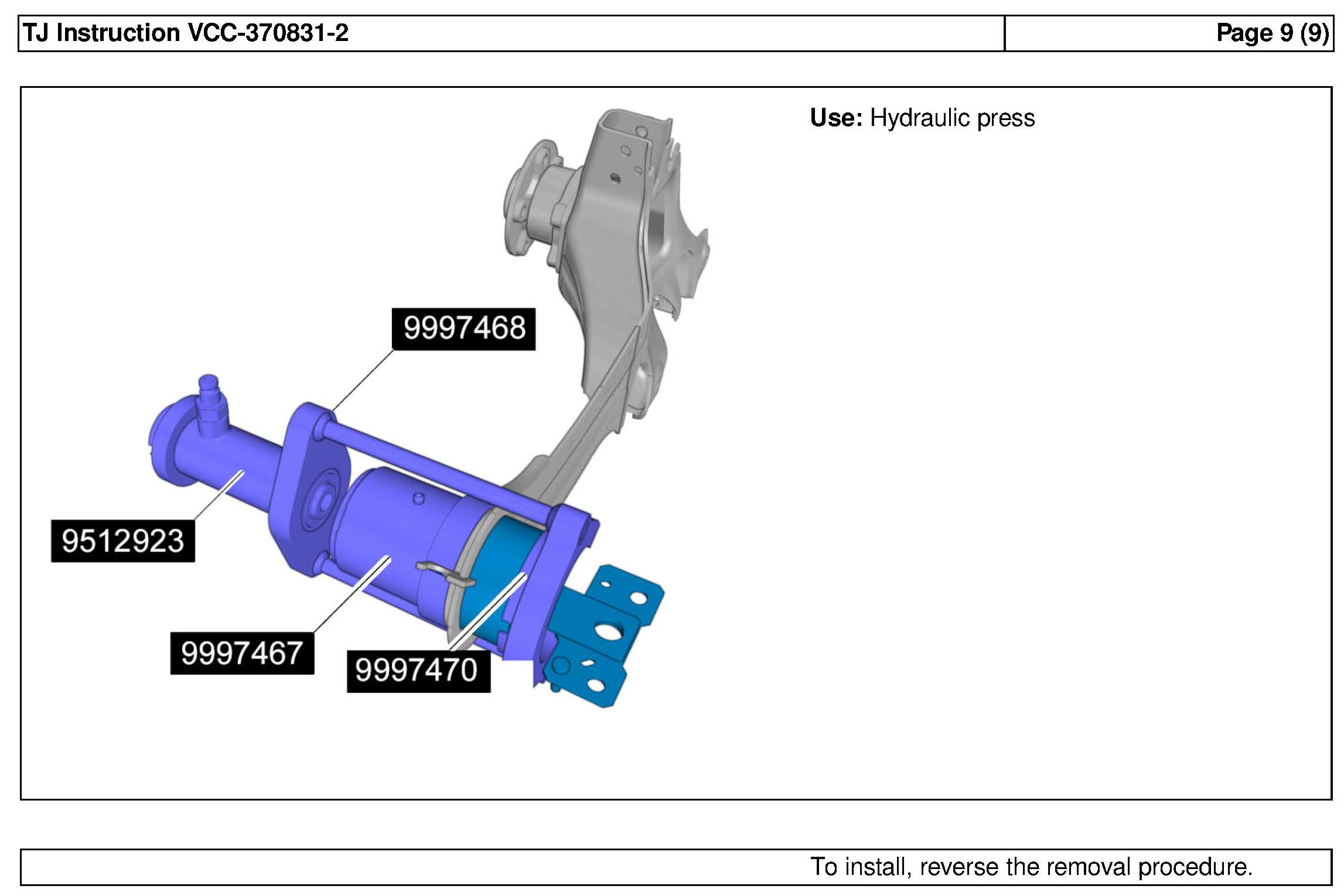

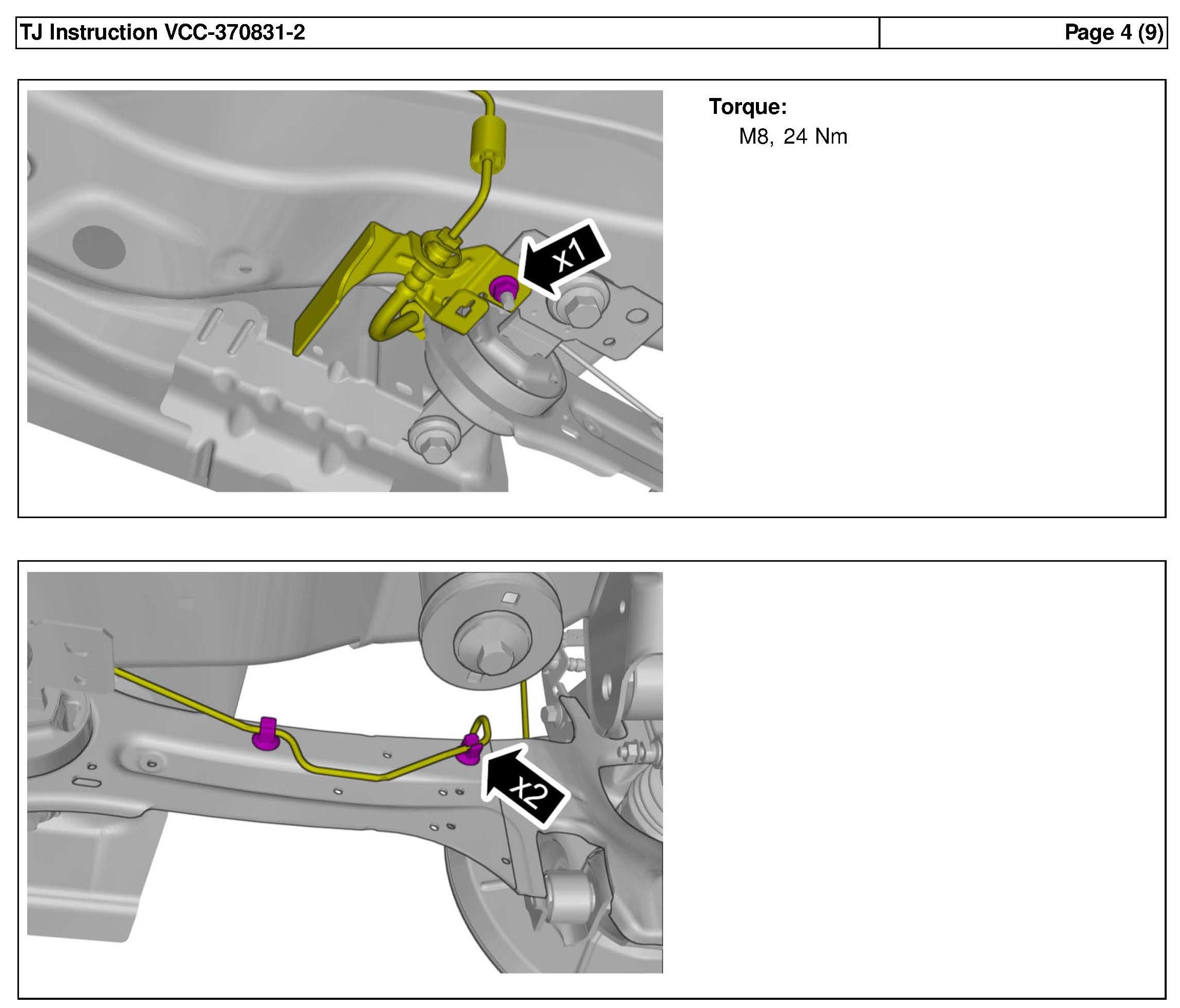

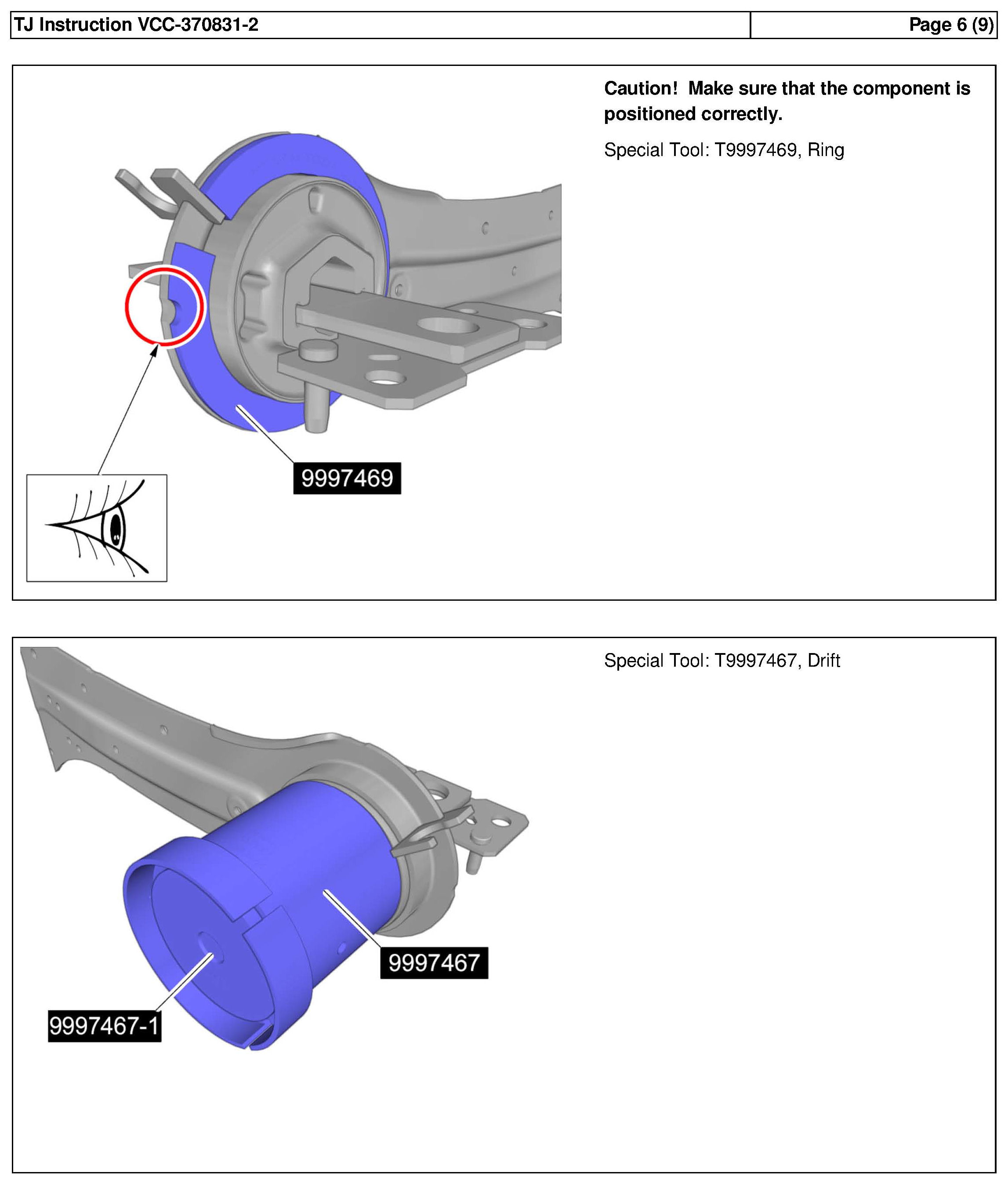

Replace the bushing according to the TJ Instruction.

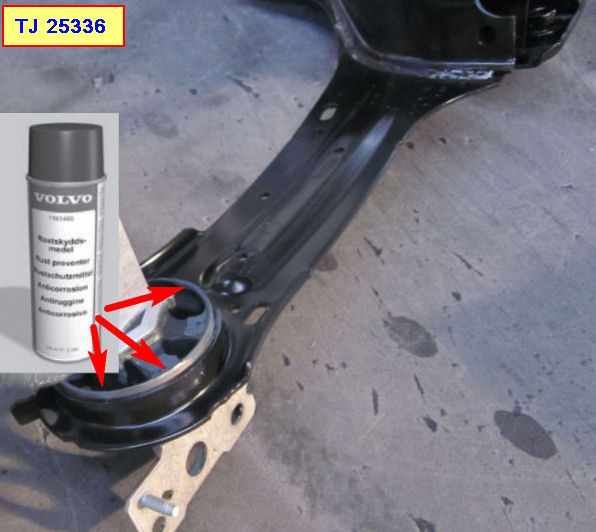

After installing the new bushing, spray rust proofing wax on the bushing outer metal ring to prevent repeat repair (picture # 3).
Parts:
Note:
Parts will be listed in Parts Catalogue from VIDA 2012DU2.

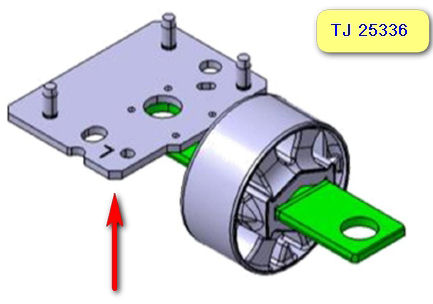

Bushing, left side with standard attachment (see picture # 4): PN 31387280

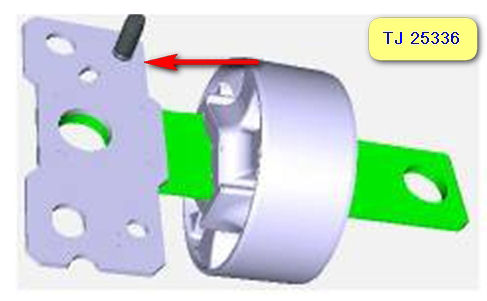

Bushing, left side with large attachment (see picture # 5): PN 31387282
Bushing, right side: PN 31387281
Rust proofing wax: PN 9510226 (500ml/18fl.oz). Use 25ml/0.85fl.oz on each side (50ml/1.8fl.oz total).
Note:
Never use other rust preventers! Solvent based chemicals will damage the rubber bushing!
MATERIAL RETURN:
None.
VEHICLE REPORT:
Only required for vehicles produced after the chassis breakpoints listed above. Create a Technical Helpdesk Vehicle Report using Function Group 6522.
VSTG OPERATION NUMBER:
65271-2 Rear longitudinal stay 1 side replace See VSTG
65272-2 Rear longitudinal stay 2 sides replace See VSTG
99400-2 General check/adjust acc to Technical Journal 0.1 hours

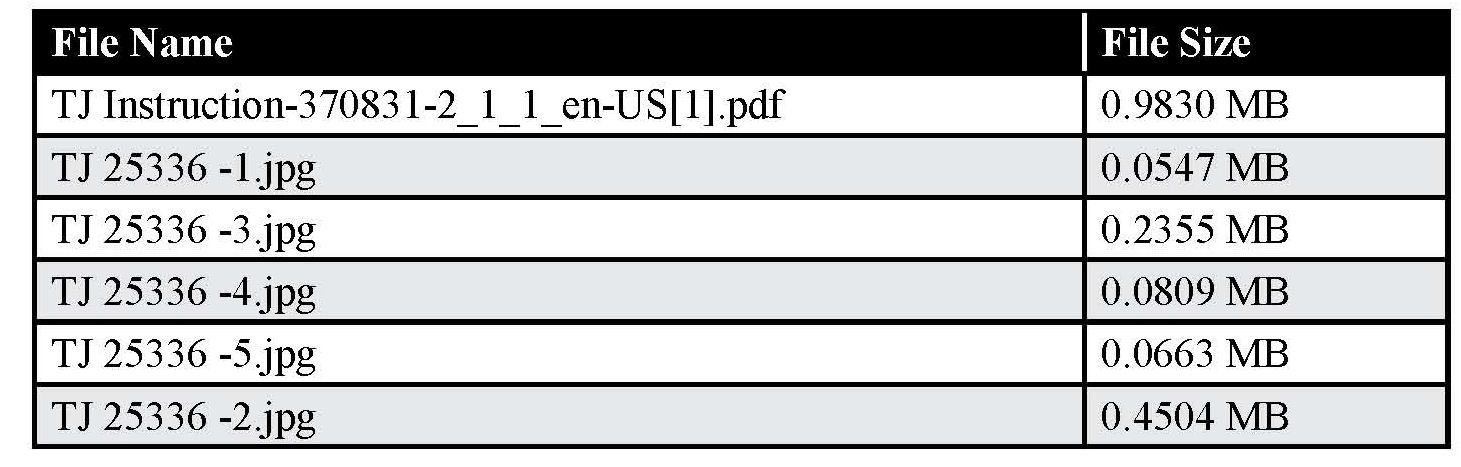

To view TJ attachments: This TJ has six attachments.
