Recall R89383 - Incorrect Product Information Label

Technical Journal

TITLE:
Recall R89383: Incorrect Product Information Label

ISSUING DEPARTMENT:

CAR MARKET:
United States

REF NO:
TJ 27503

ISSUE DATE:

YEAR
2013

MONTH
03

DAY
15

PARTNER:
3 US 7510 Volvo Cars North America

FUNC DESC:
Instruction plate; information plate

FUNC GROUP:
8971

"Fixed Right - First Time"

Attachment

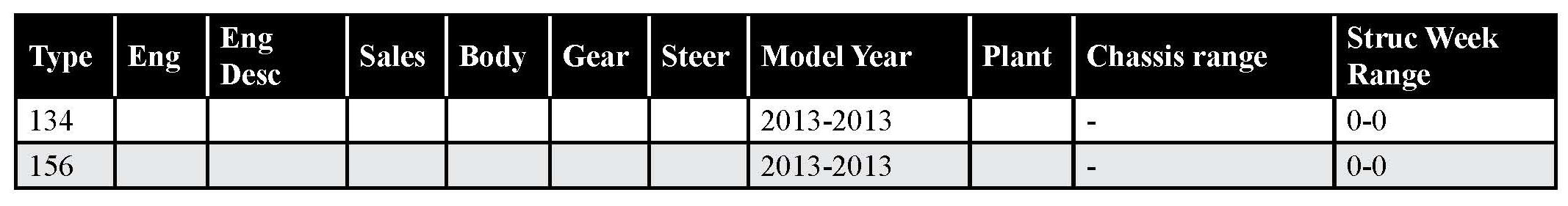

Vehicle Type

CSC Customer Symptom Codes

DTC Diagnostic Trouble Codes

DESCRIPTION:
The product identification decal on driver's side B-pillar has been misprinted concerning manufacturing year.

SERVICE:

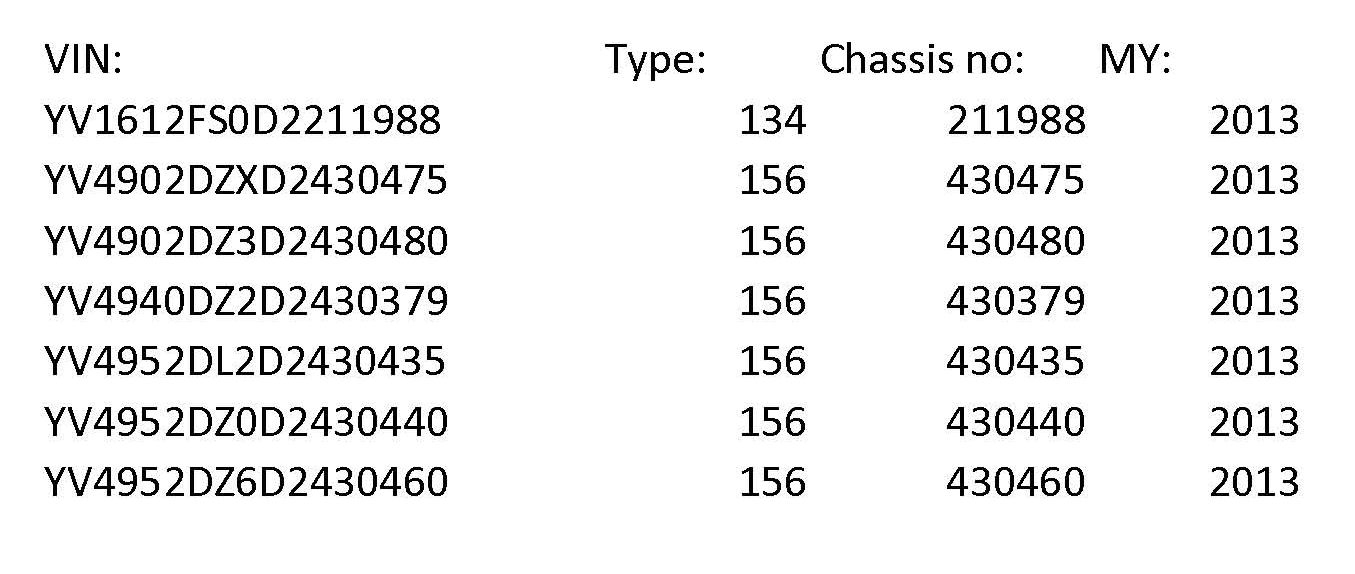

Volvo Cars has decided that all cars in vehicle list shall be upgraded according to the attached instructions without delay.

VSTG OPERATION NUMBER:

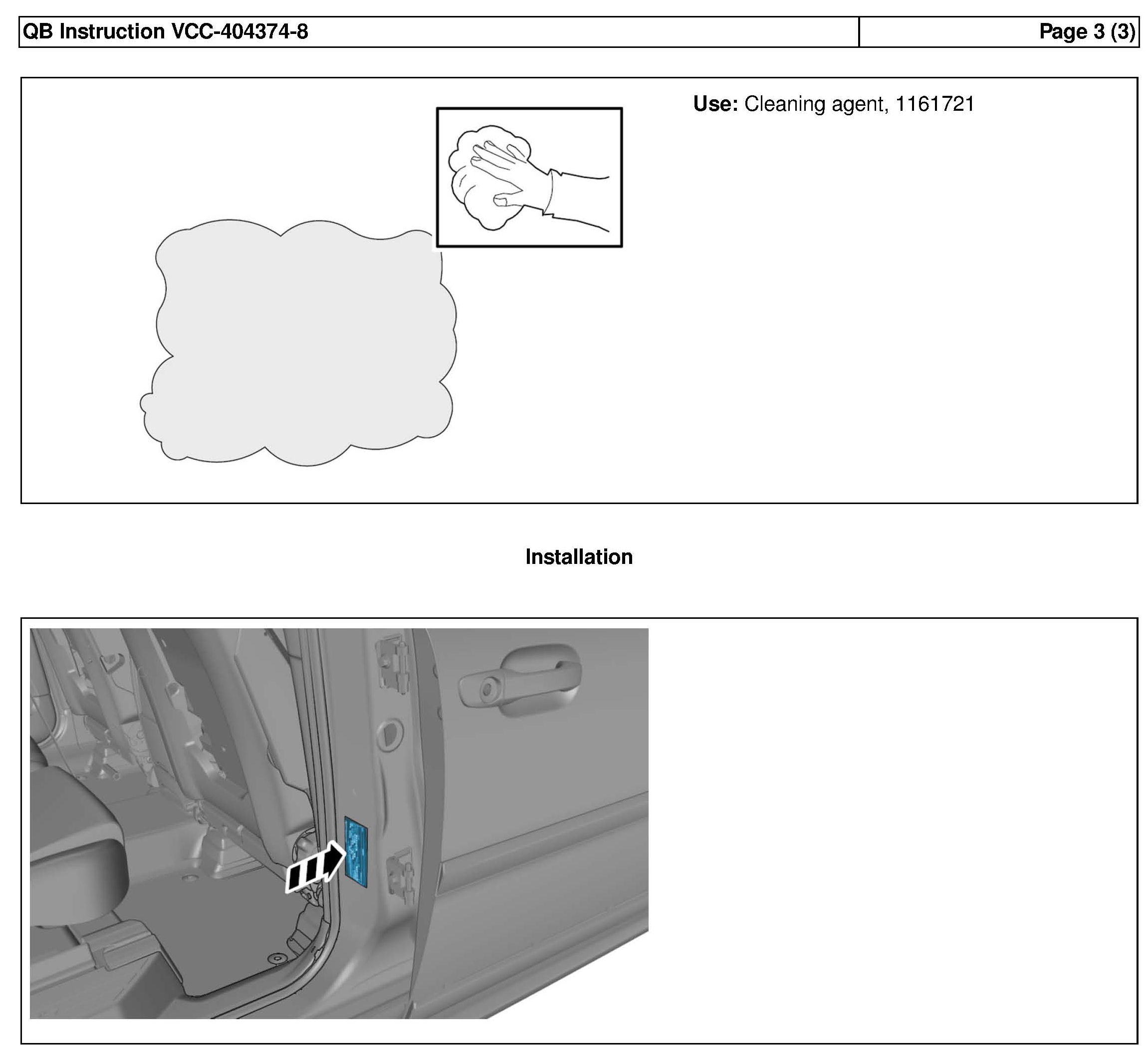

89894-2 Decal B-pillar drivers side replace

- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01
- Labor times are valid at the time of release and are subject to change.

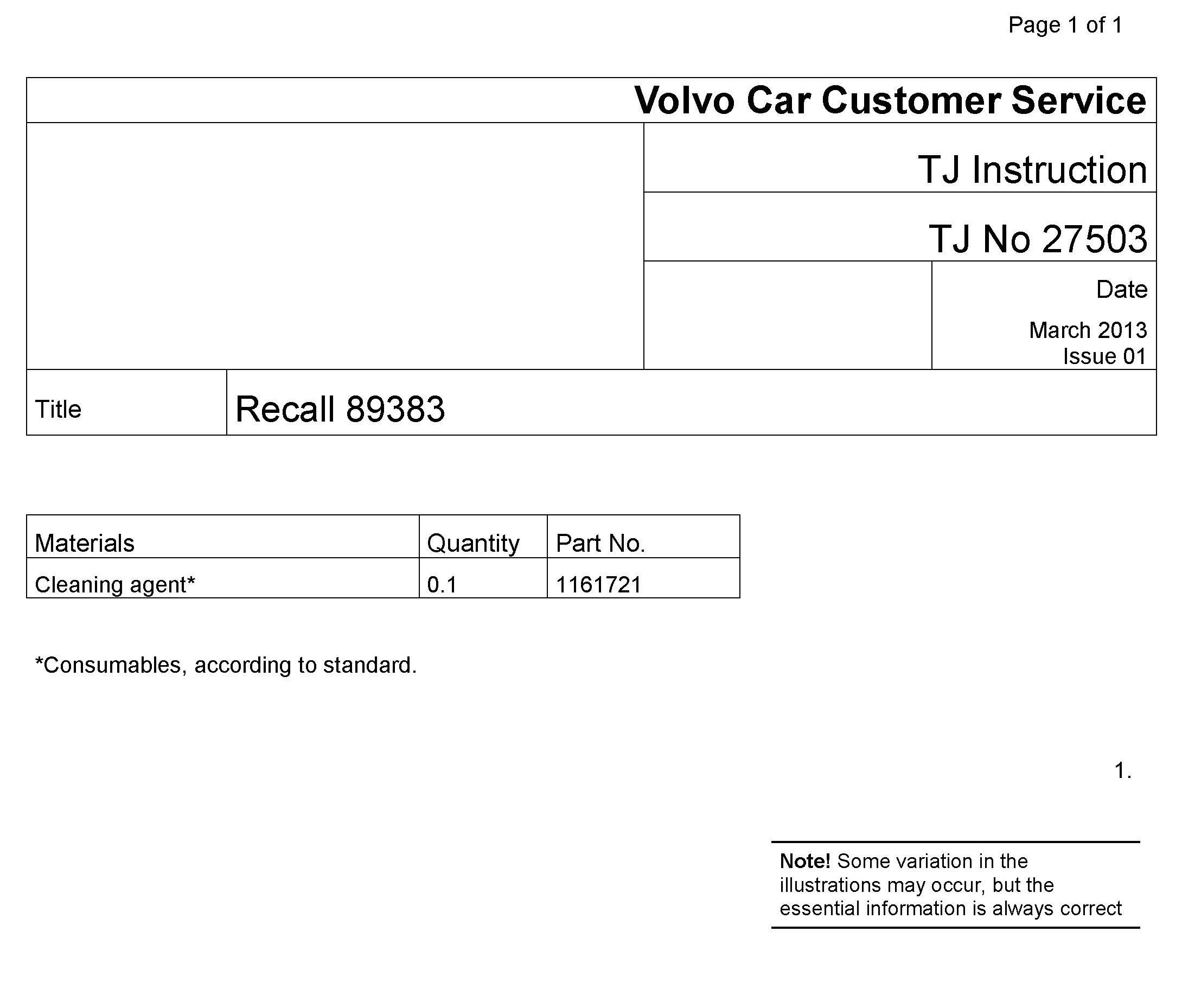

To view TJ attachments. This TJ has 2 attachments.
