Working With A Car Lift

This article uses a picture philosophy in the instructions for mechanical work methods. The instructions focus on the pictures and include text only if it is impossible to show the work method in the pictures. For further information, refer to: Description and Operation

Working With A Car Lift







Safety information

WARNING:
- When working with objects on car lifts there is always a risk of a movement in the centre of gravity and the lifted object becoming unstable.

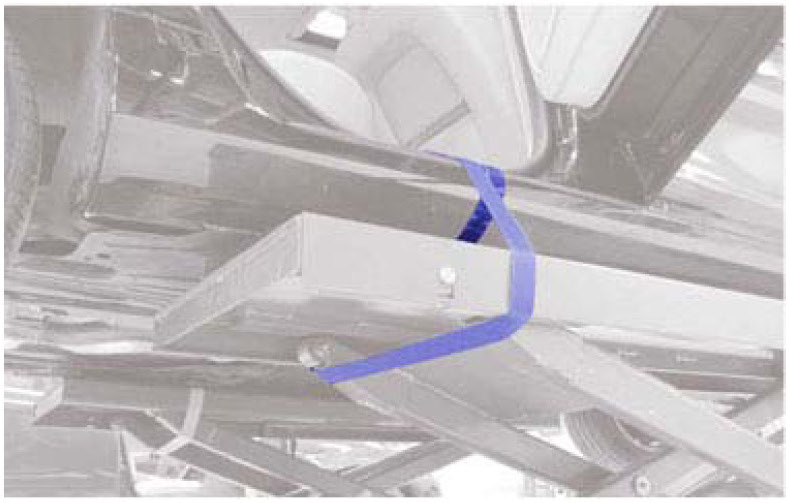

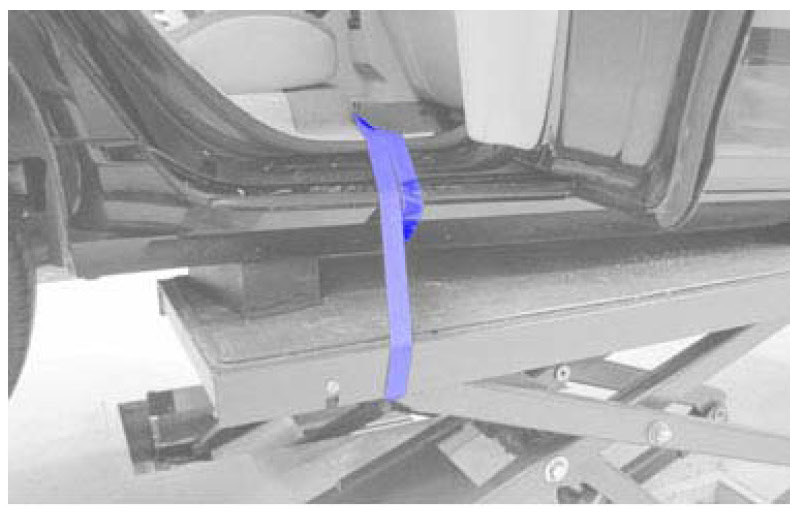

- When dismantling components weighing approximately 100 kg at the rear of the vehicle it must be secured with straps/tensioner bands that run through the rear door openings (alternatively through the front door openings on 2 door cars) and under the rear lifting arms/lifting table.

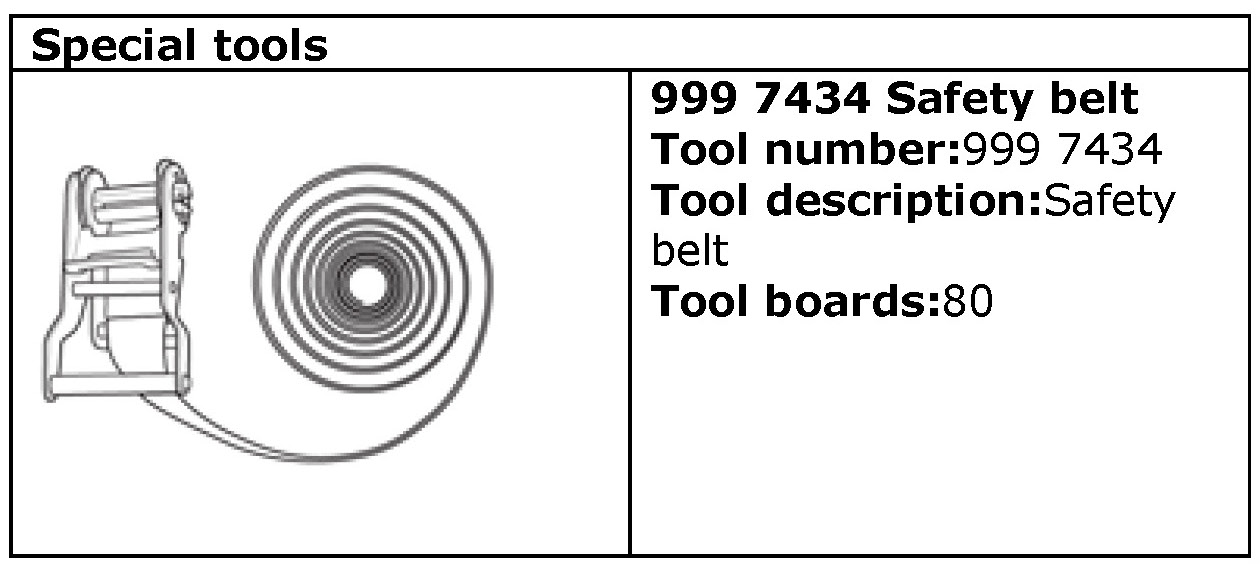

Special Tool: 999 7434










WARNING: Always follow the manufacturer's instructions for the correct servicing unit operating procedure.
