TITLE:
Headlamp, Leak Test

CAR MARKET:
United States

ISSUING DEPARTMENT:
Technical Service

REF NO:
TJ 17076

ISSUE DATE:

YEAR
2012

MONTH
10

DAY
11

PARTNER:
3 US 7510 Volvo Cars North America

FUNC GROUP:
3521

FUNC DESC:
Headlamp, complete

"Fixed Right - First Time"





Attachment

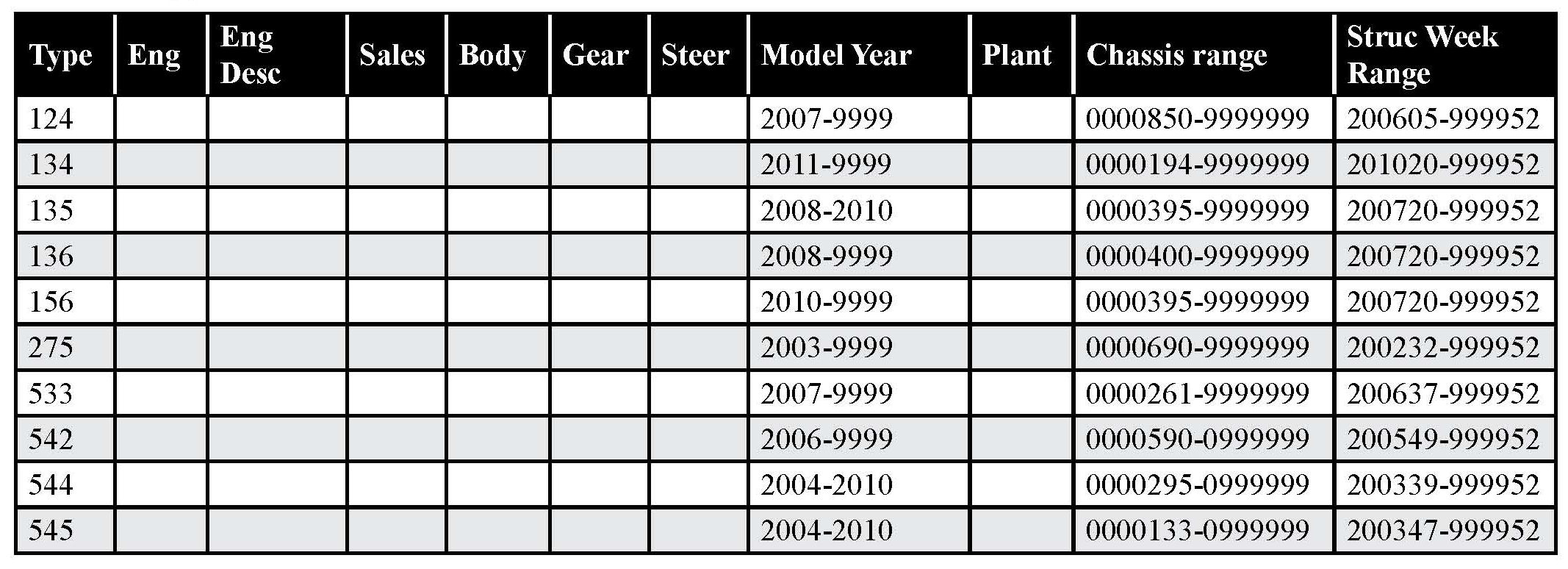

Vehicle Type

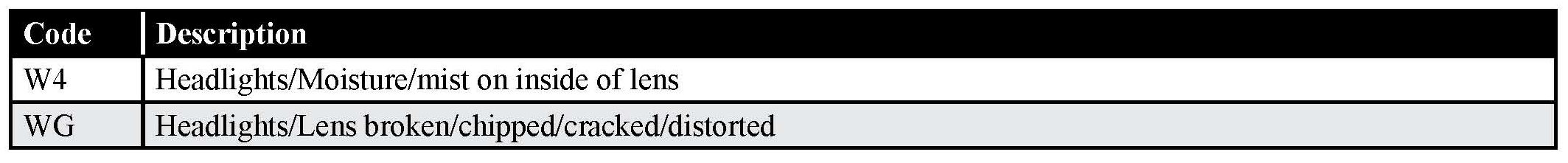

CSC Customer Symptom Codes

Technical Journal 17076

DTC Diagnostic Trouble Codes

Text

CSC = Customer Symptom Code

DTC = Diagnostic Trouble Code

Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.

DESCRIPTION:
The headlamp assembly may have condensation caused by moisture inside of lens. Some condensation is normal and not considered a defect.

Automotive lamps are designed as an open system and atmospheric humidity can enter the lamp and also exit. The moisture disappears over a time period through the air vents while driving with low beam.
Due to the heat of the lamp the moisture will clear in the light relevant areas.

Moisture in the headlamp assembly, that doesn't disappear, may be caused by water ingress due to cracks in the lens, housing or a defective sealing.
Note: Normal condensation can NOT be avoided by installing a new lamp. There is no damage of the lamp due to normal condensation.

SERVICE:
Perform a visual check of the headlamp assembly to evaluate if the condensation is normal or not:
Check the housing, lens and ventilation holes for damage. If damage is found replace the headlamp.

To clear normal condensation from the headlamp:
Remove the service covers on the headlamp housing and switch the headlamp low beam on for 30 minutes. Secure battery charging either by having the engine running or by connecting a battery charger.

OR

If a road test is possible: Switch the headlamp low beam on and road test the vehicle for 10 minutes.

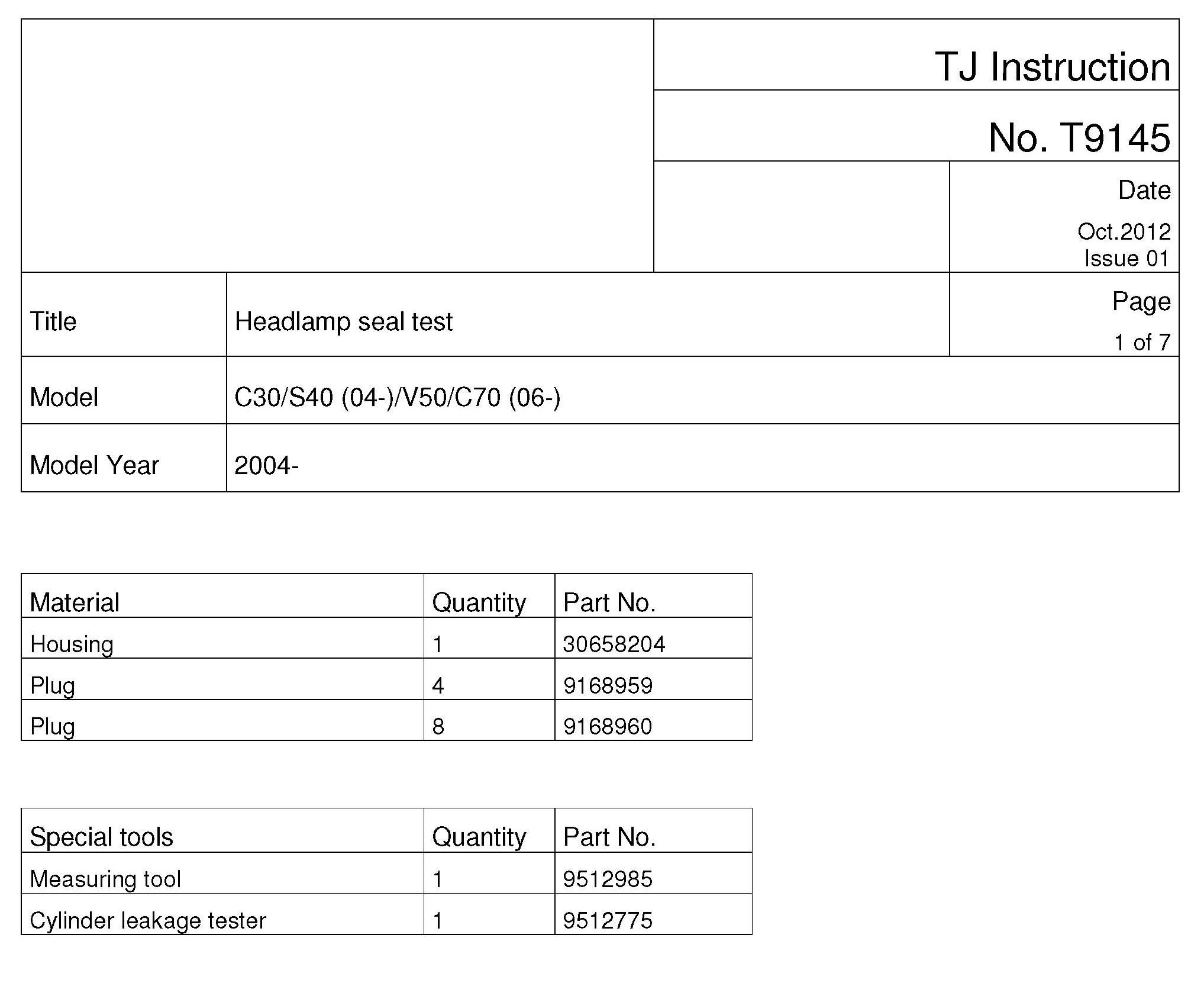

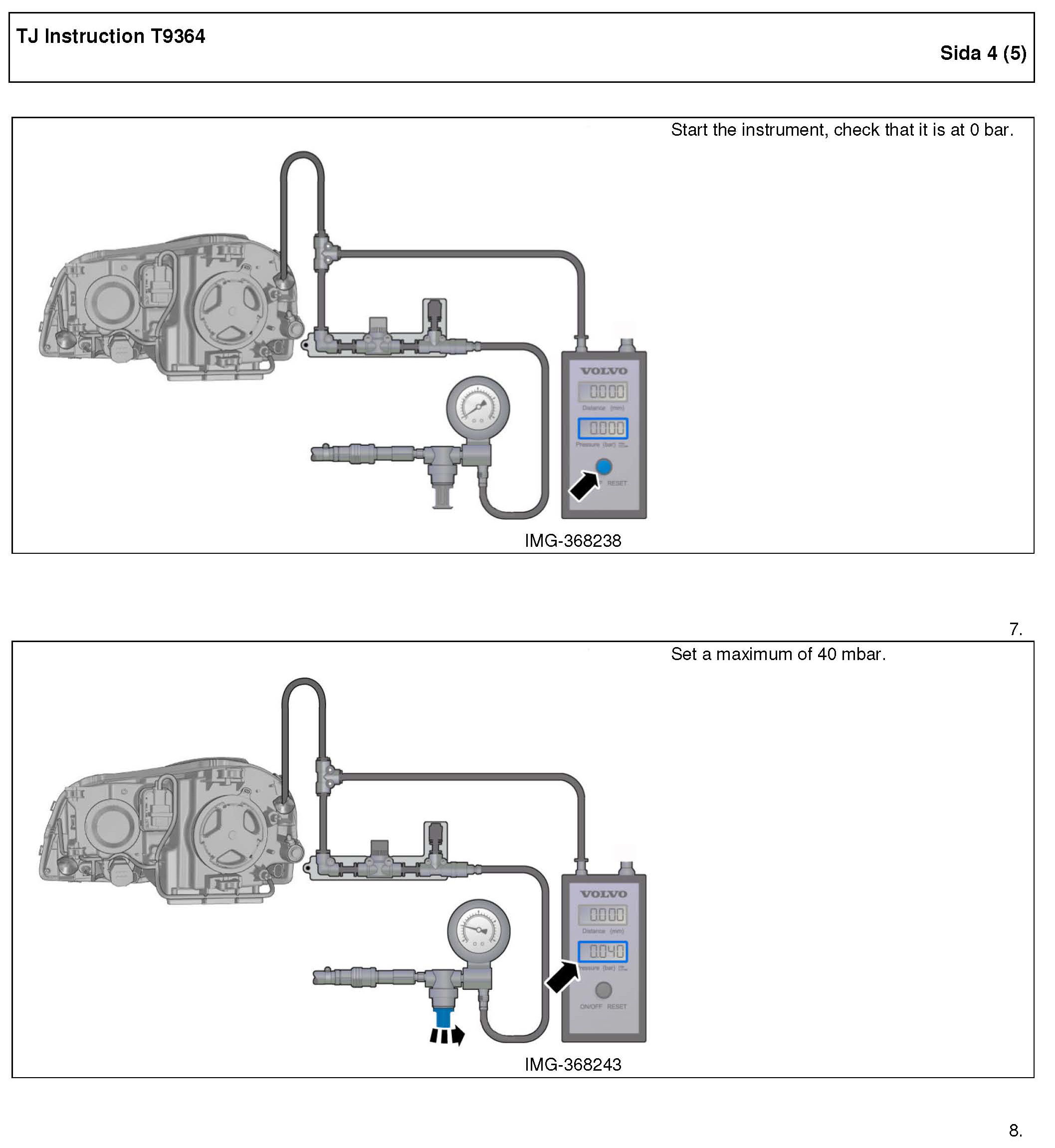

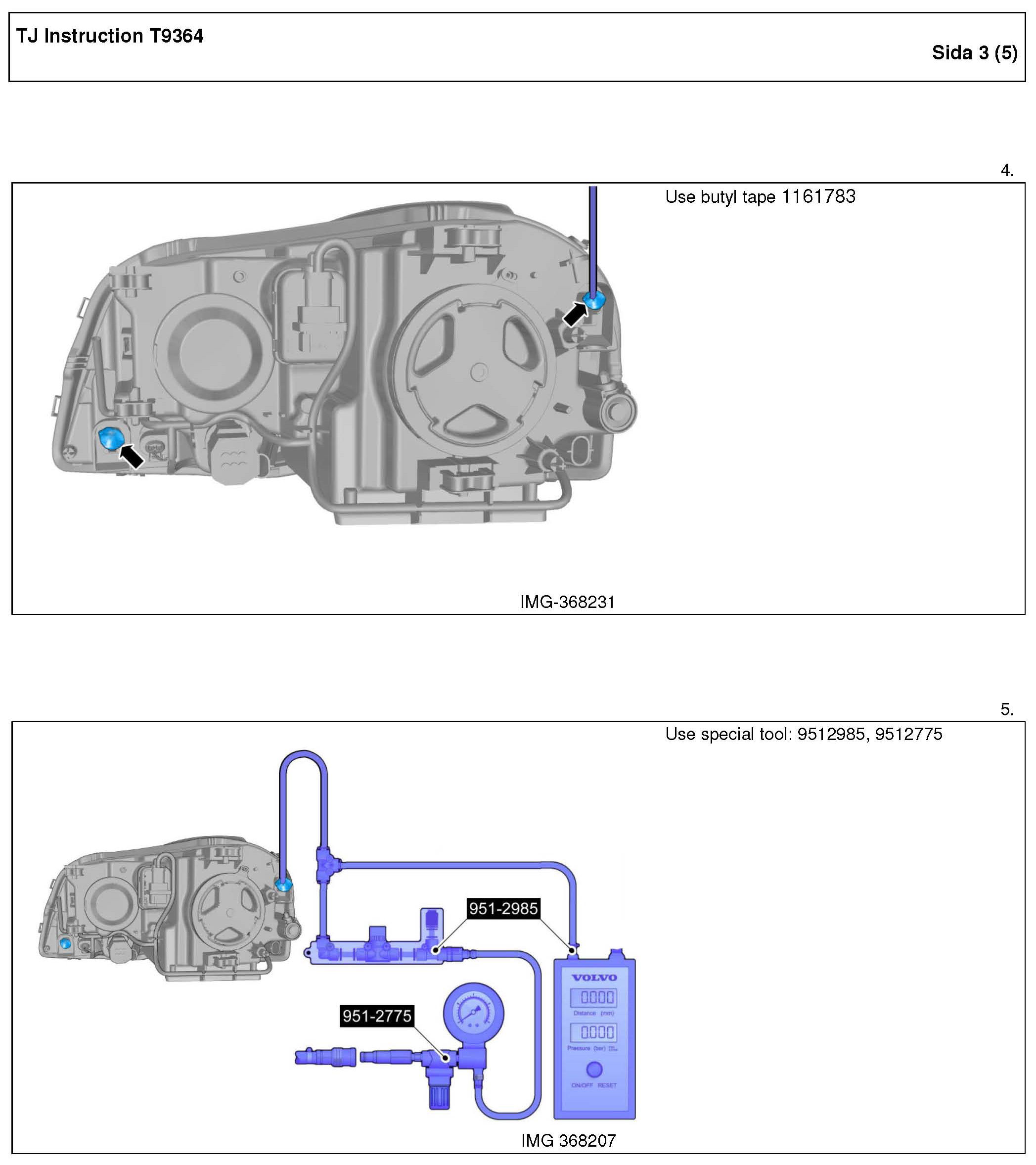

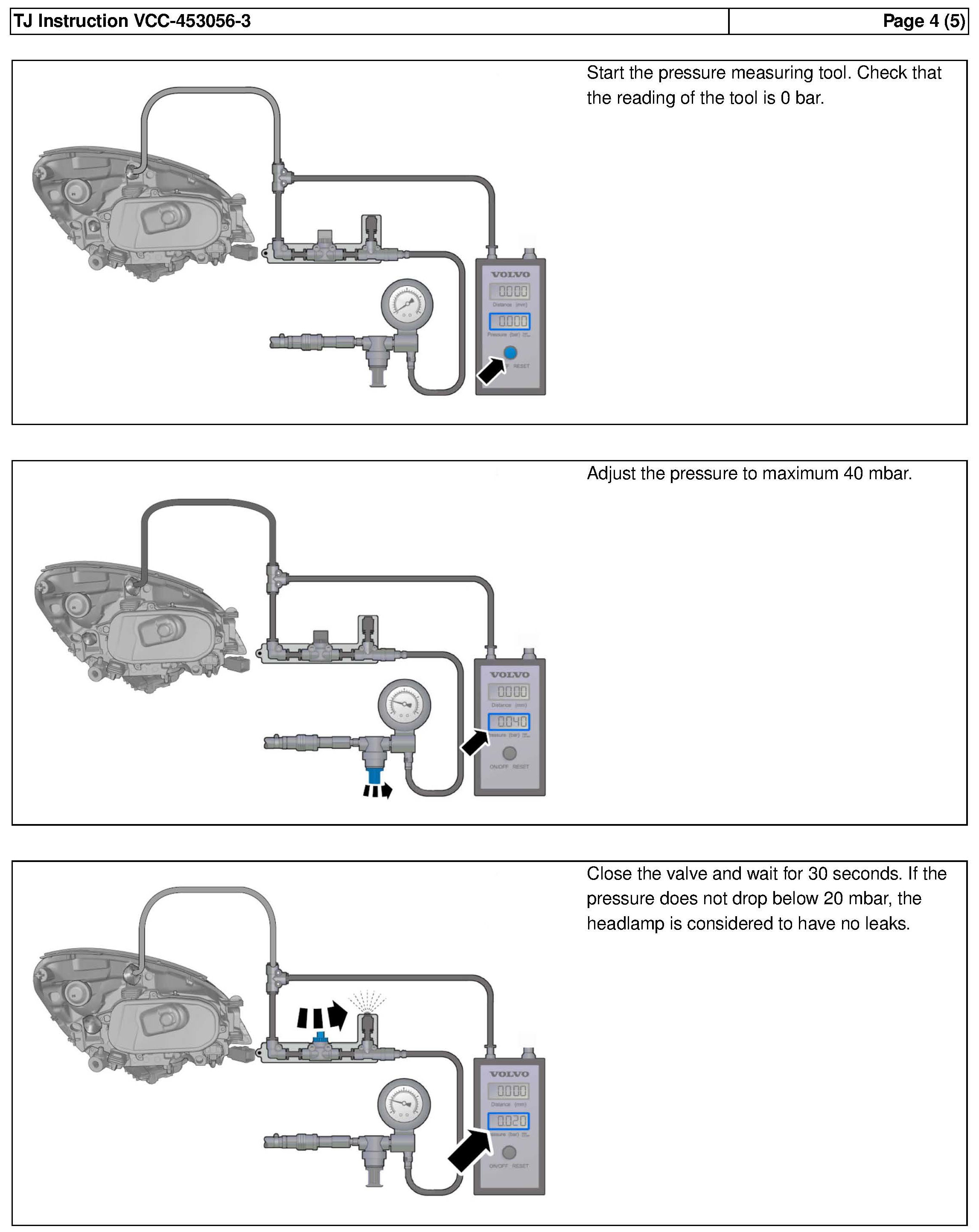

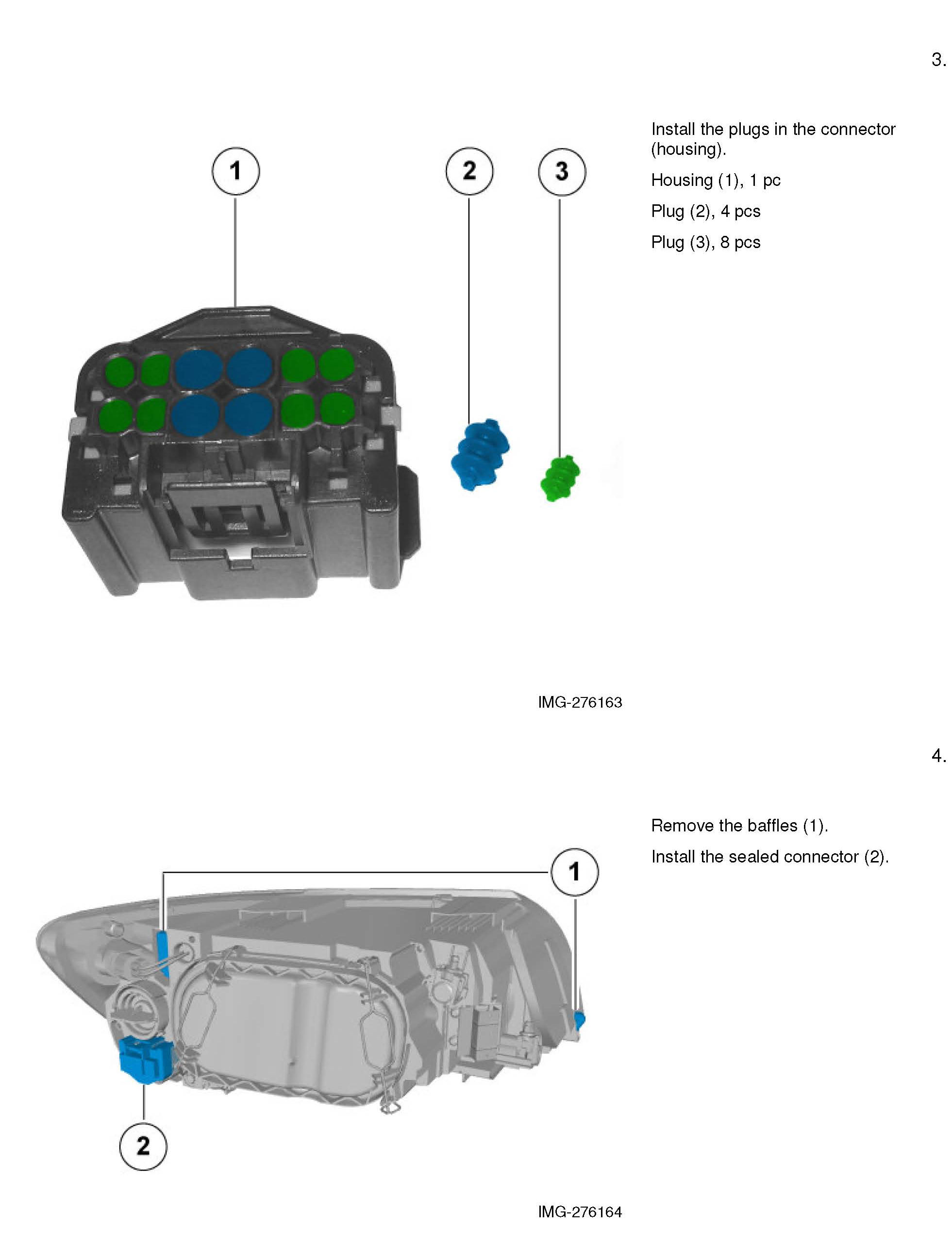

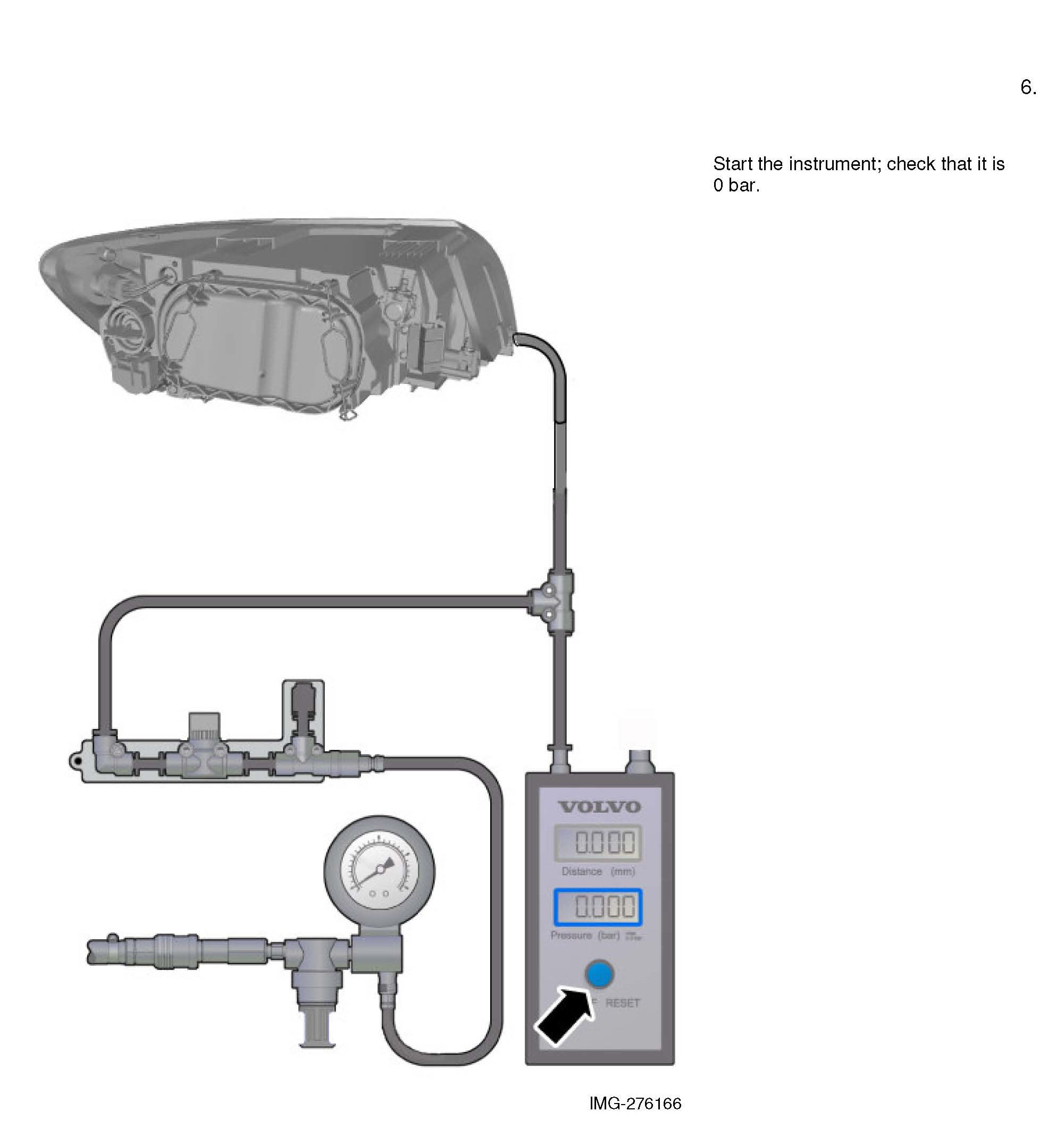

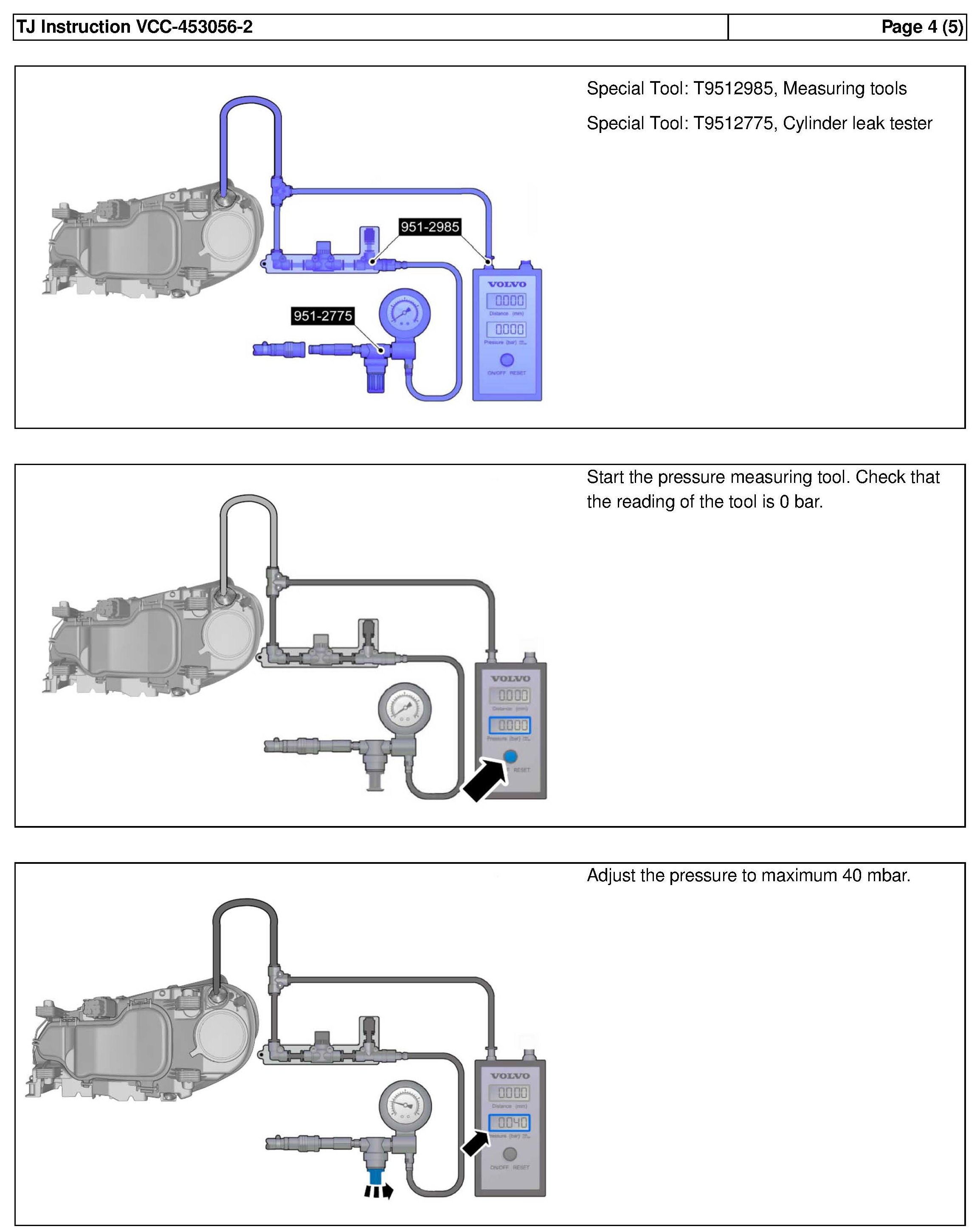

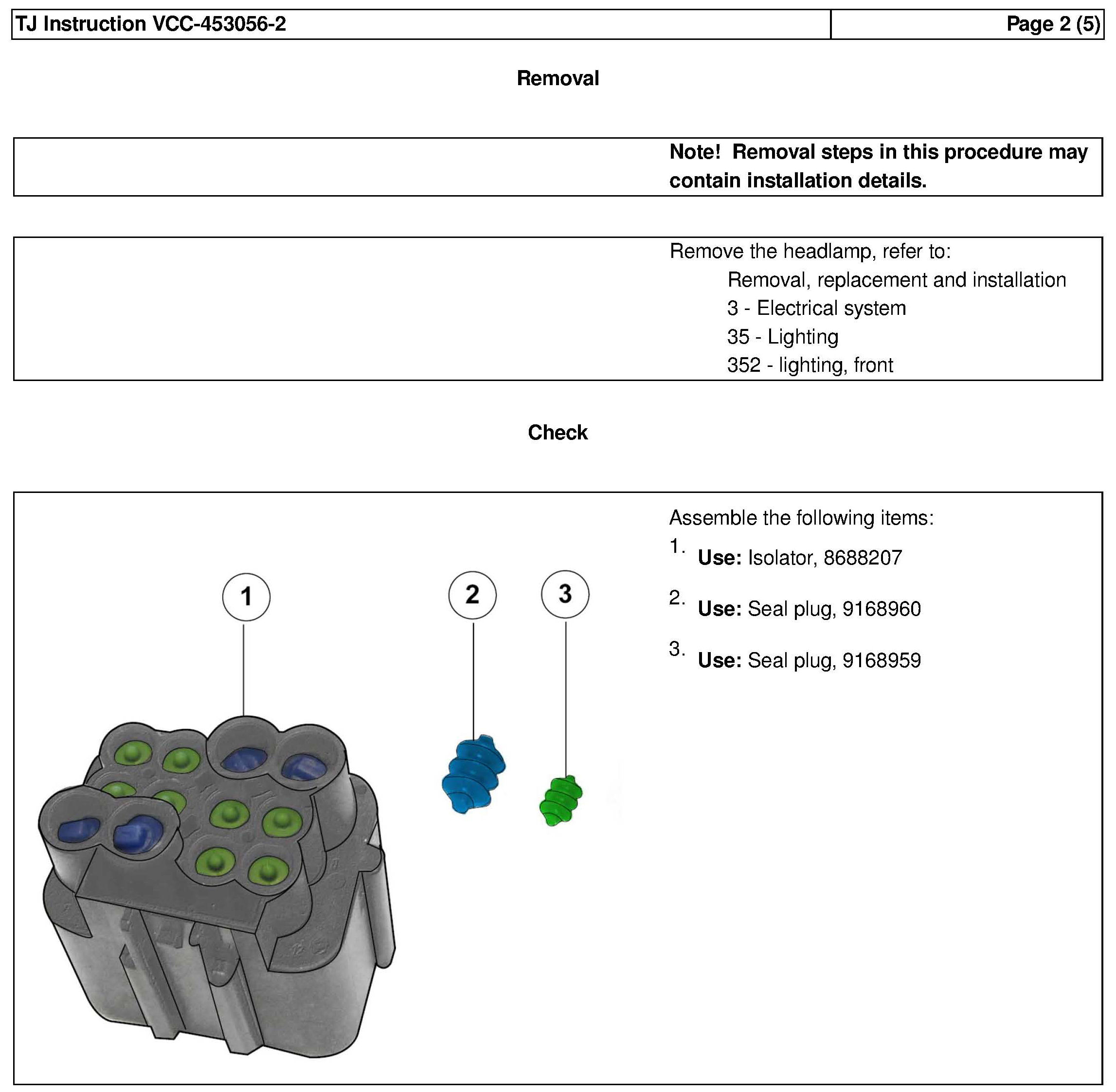

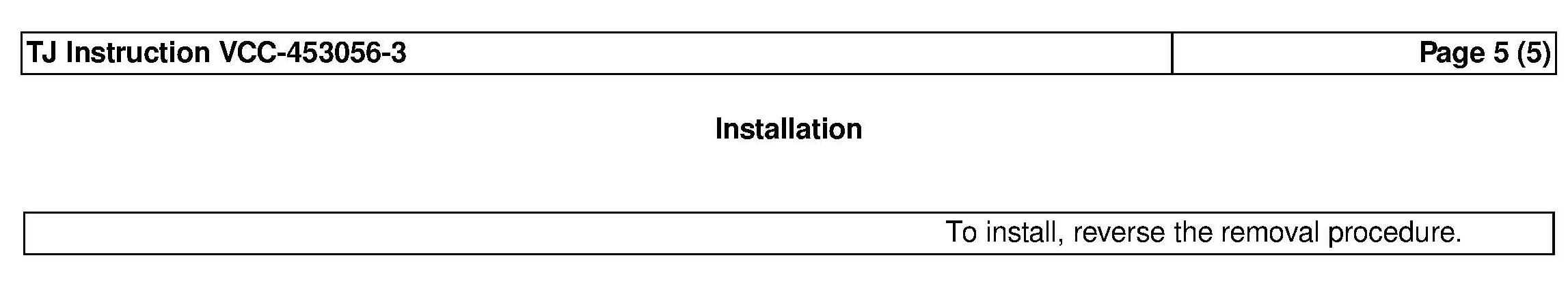

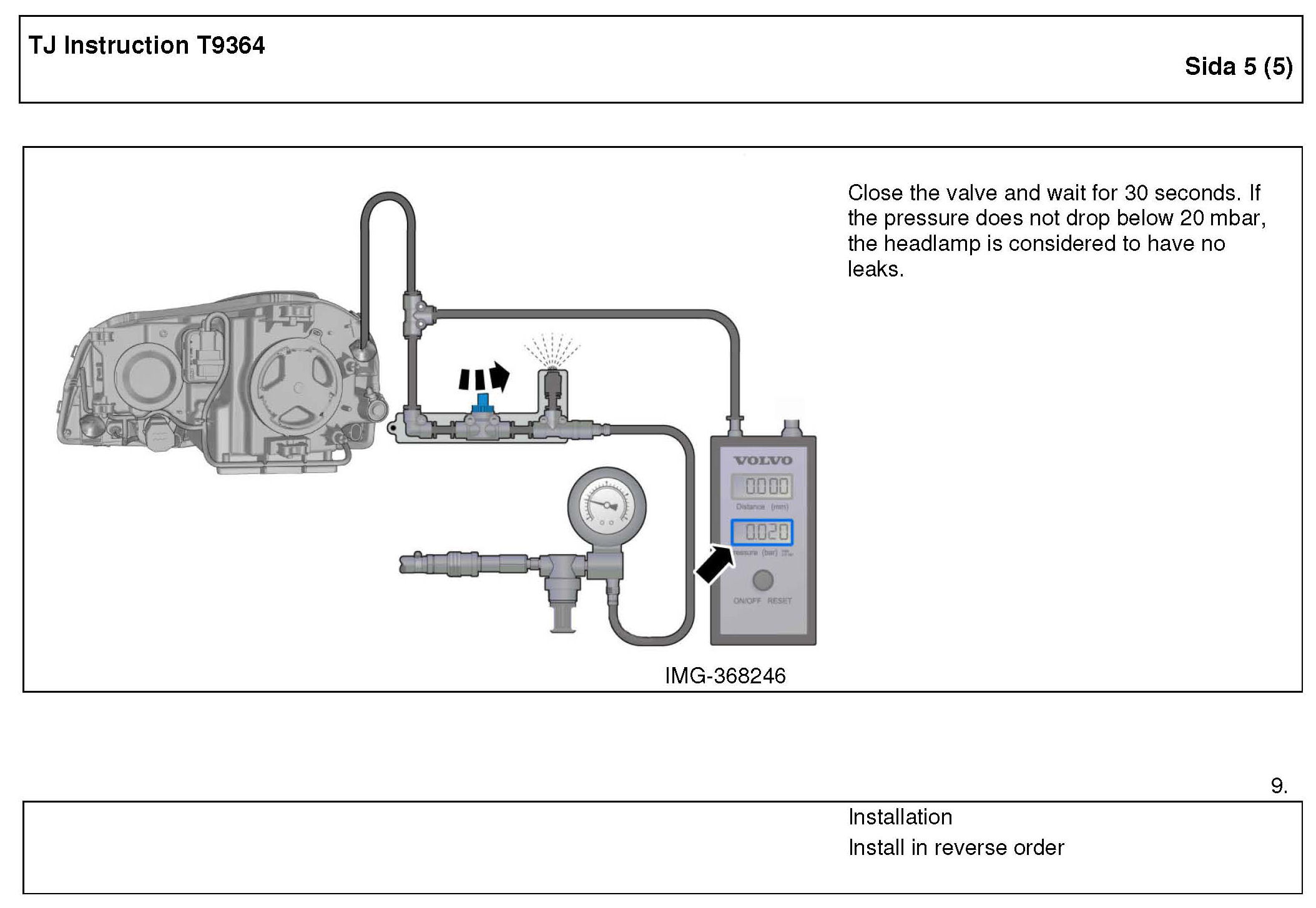

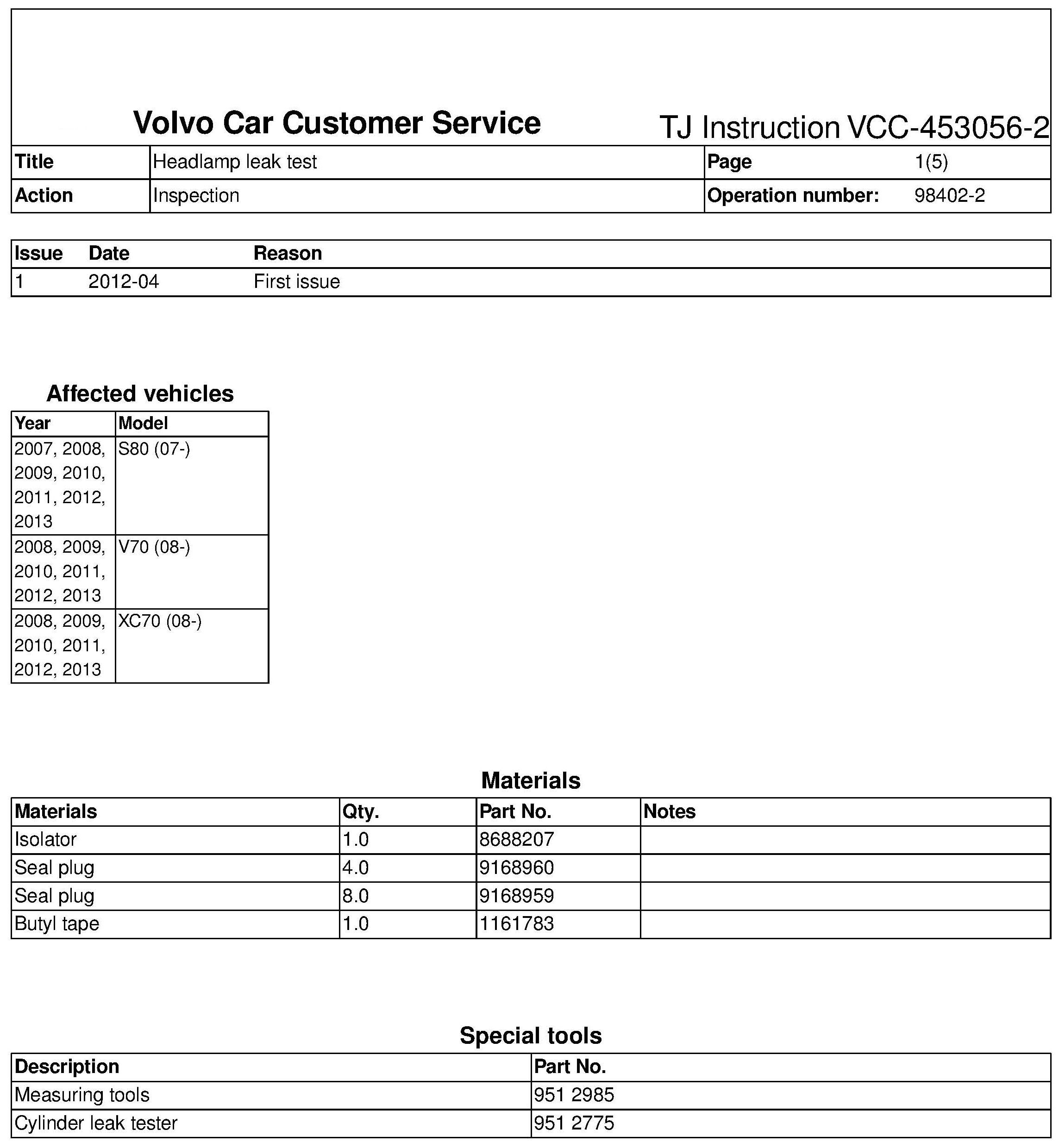

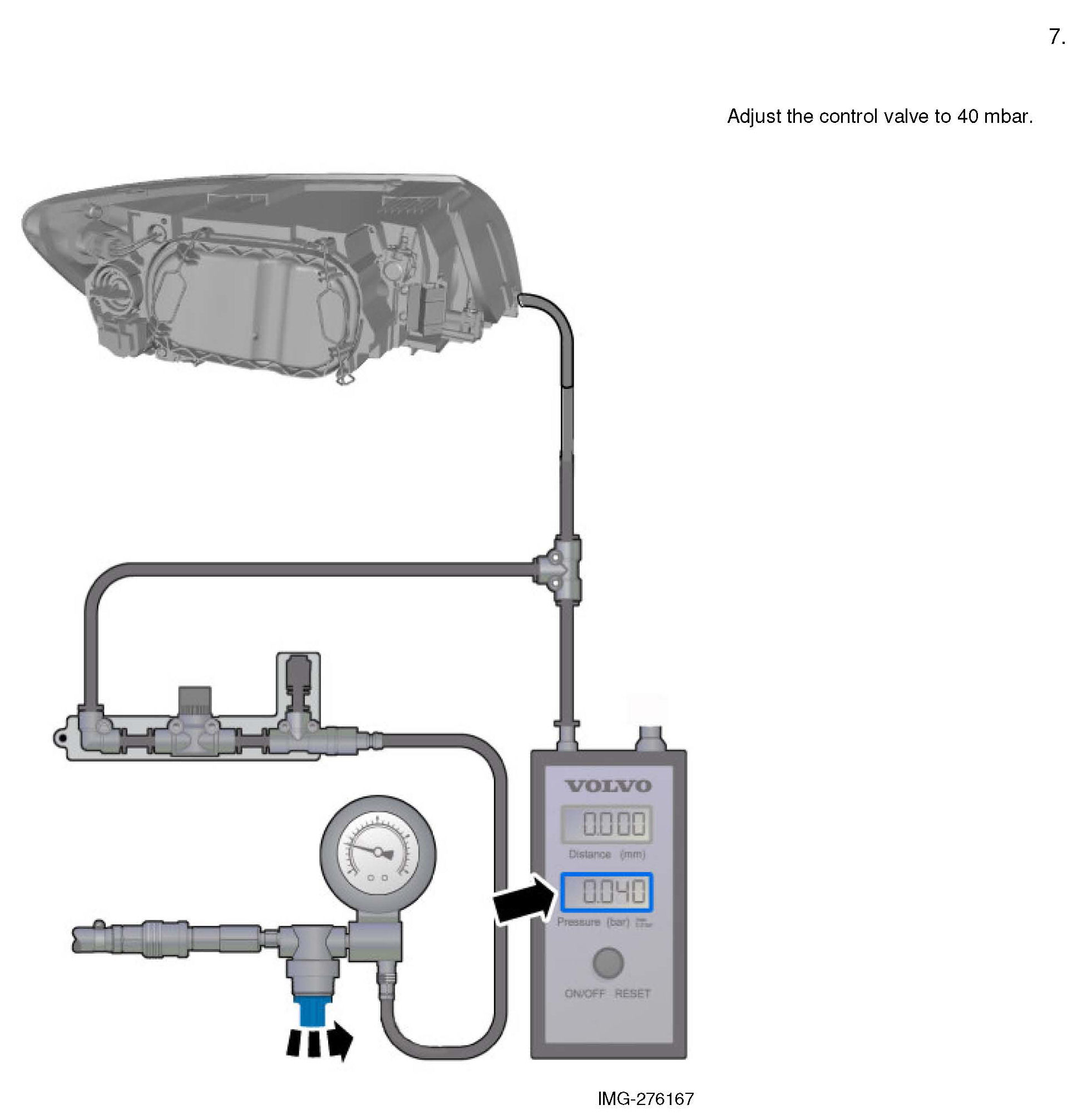

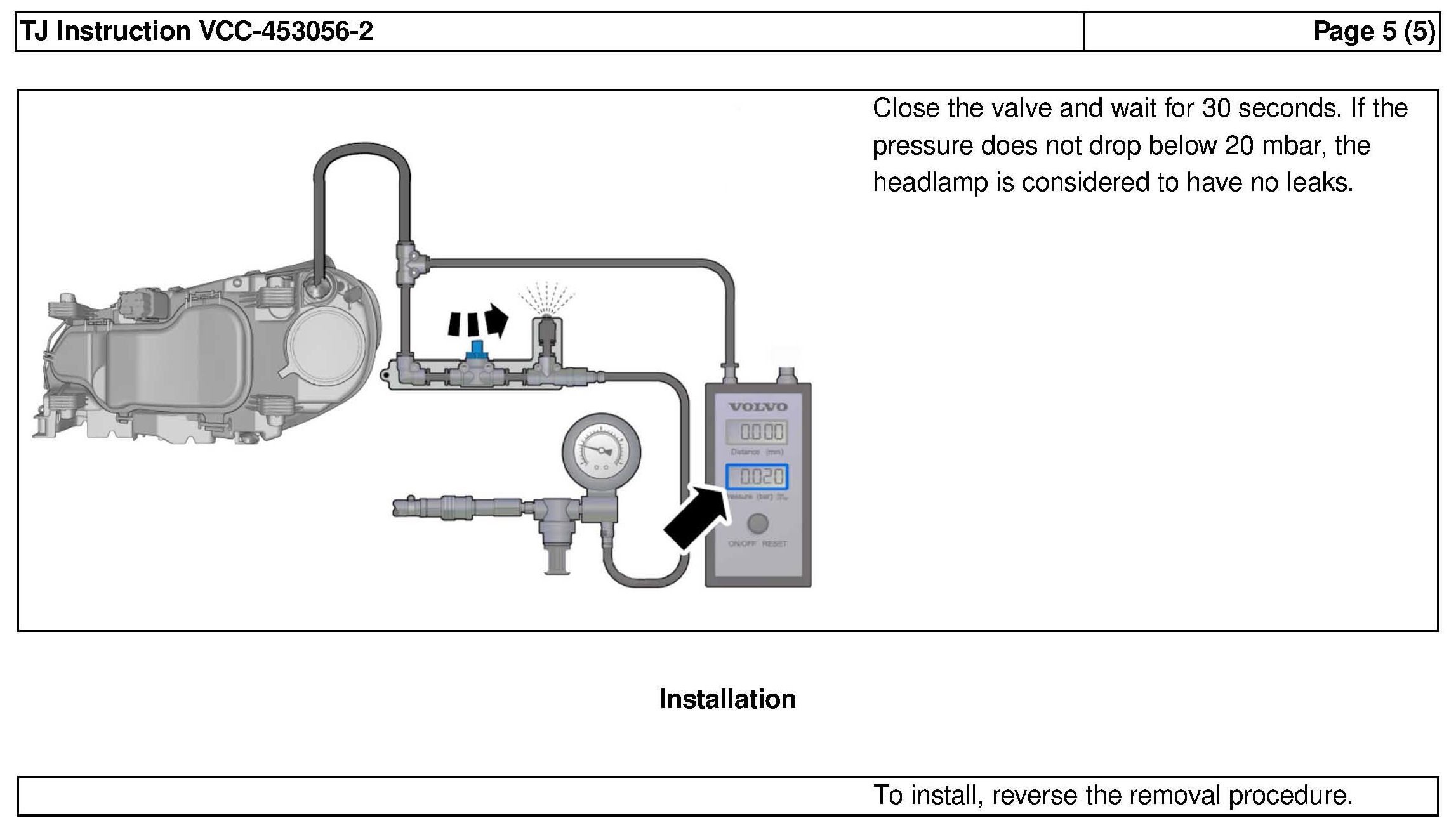

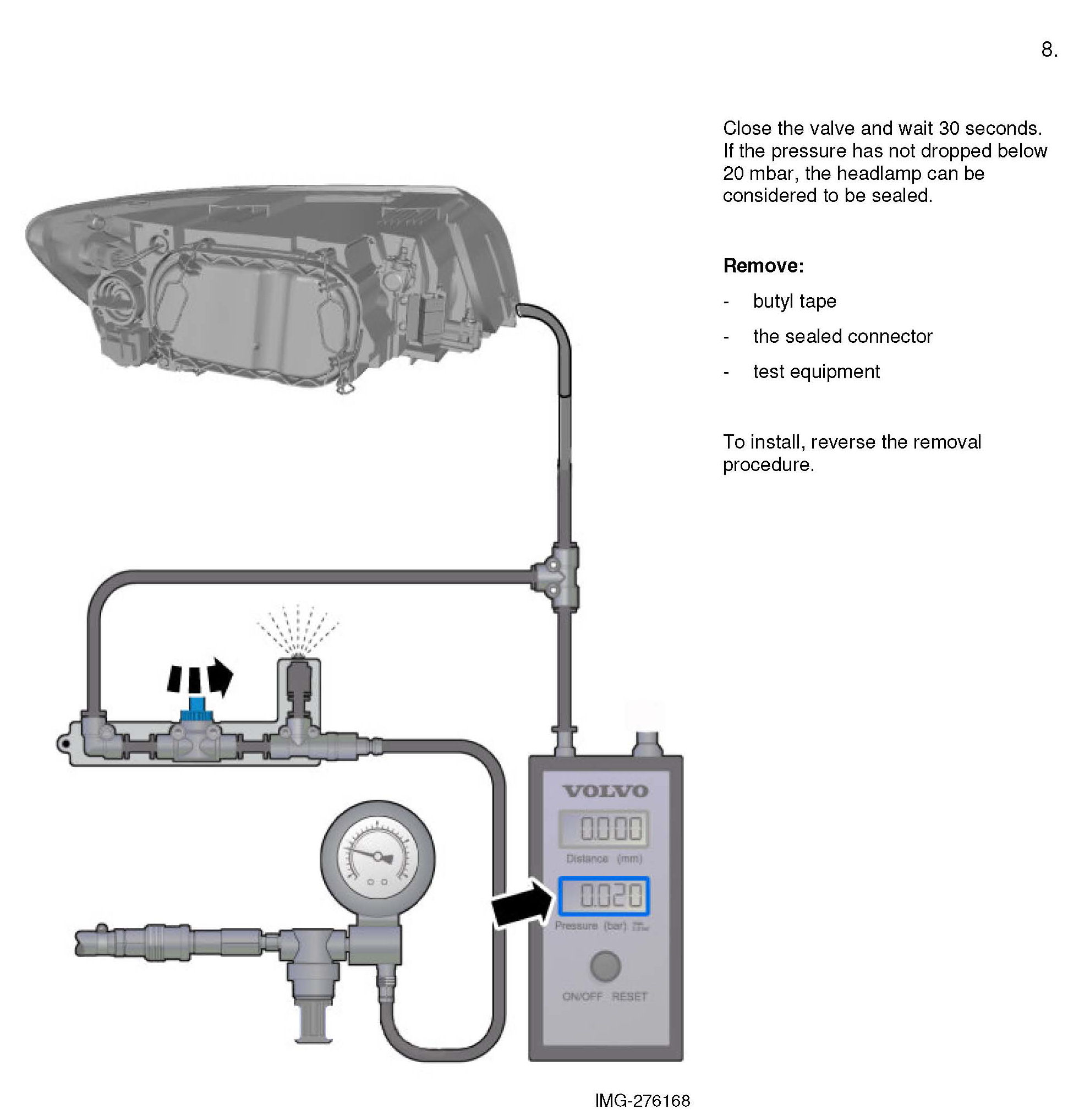

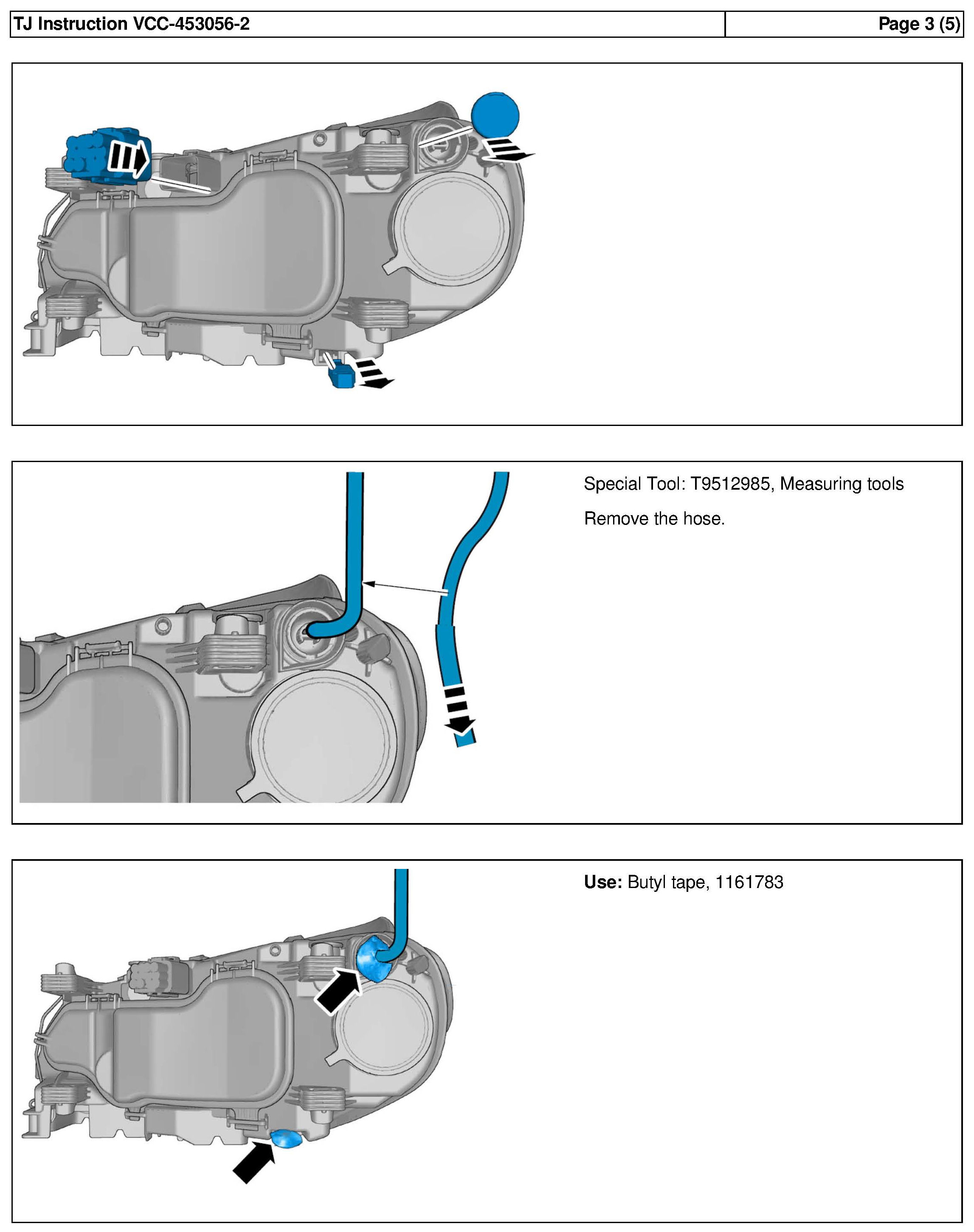

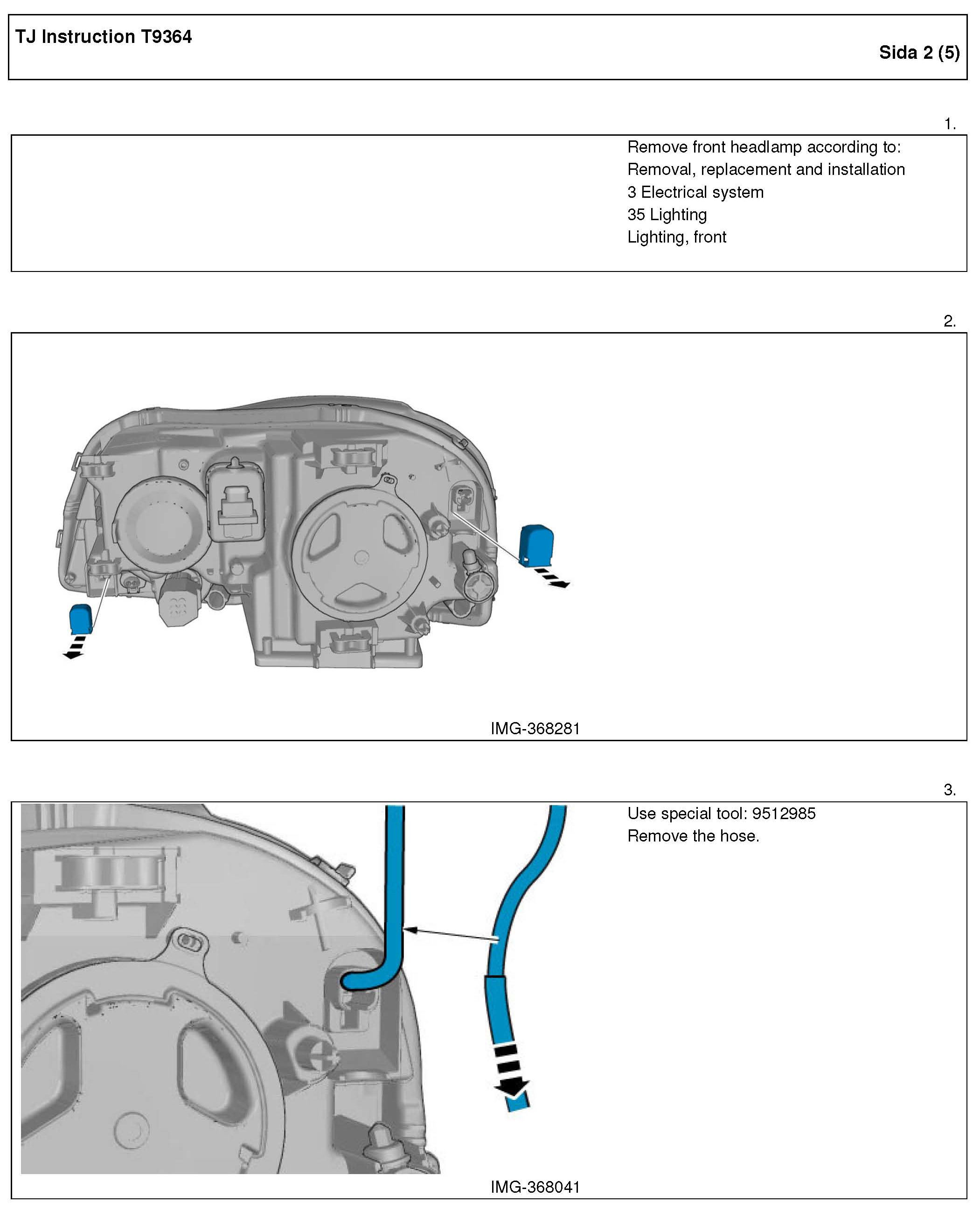

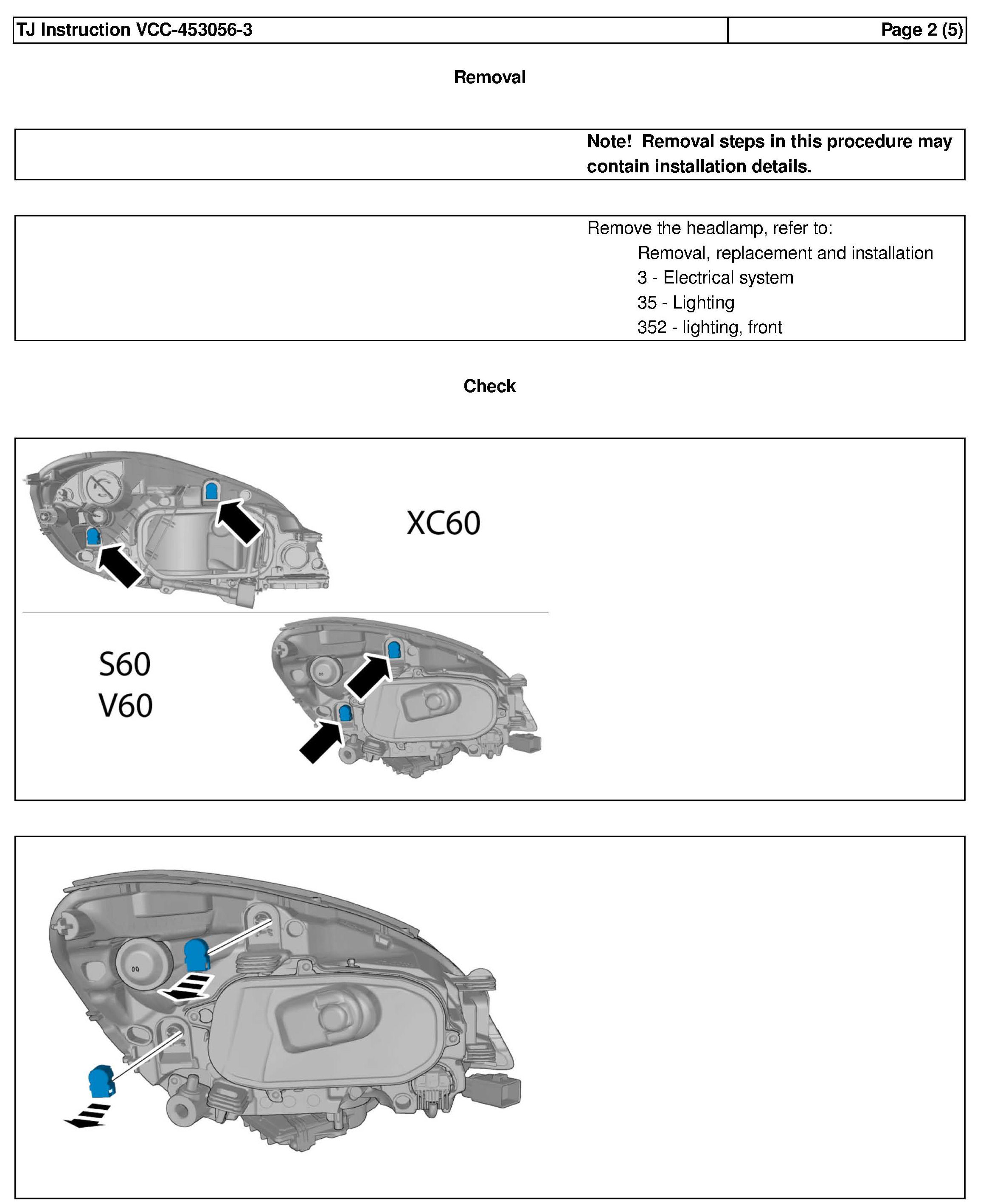

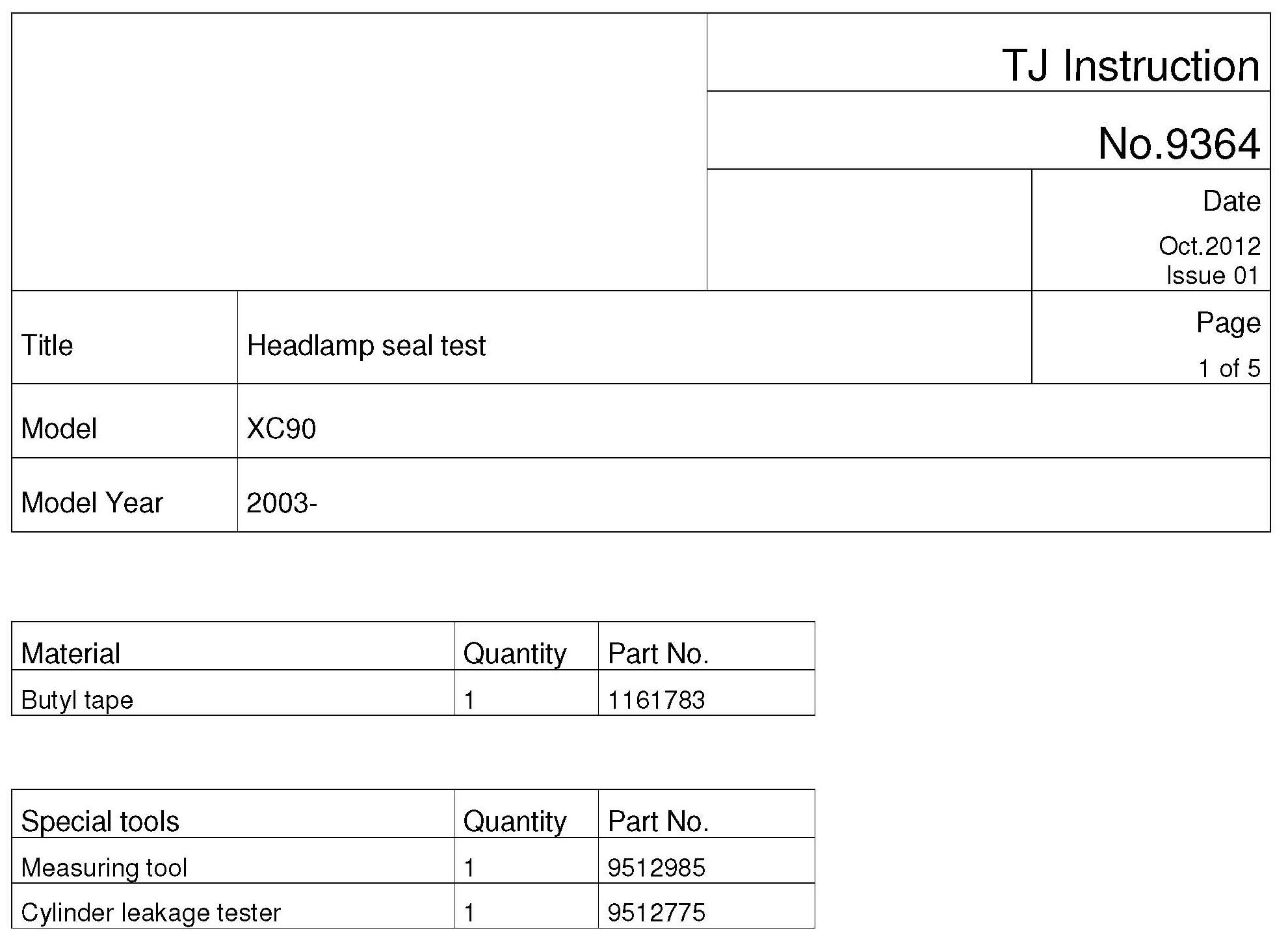

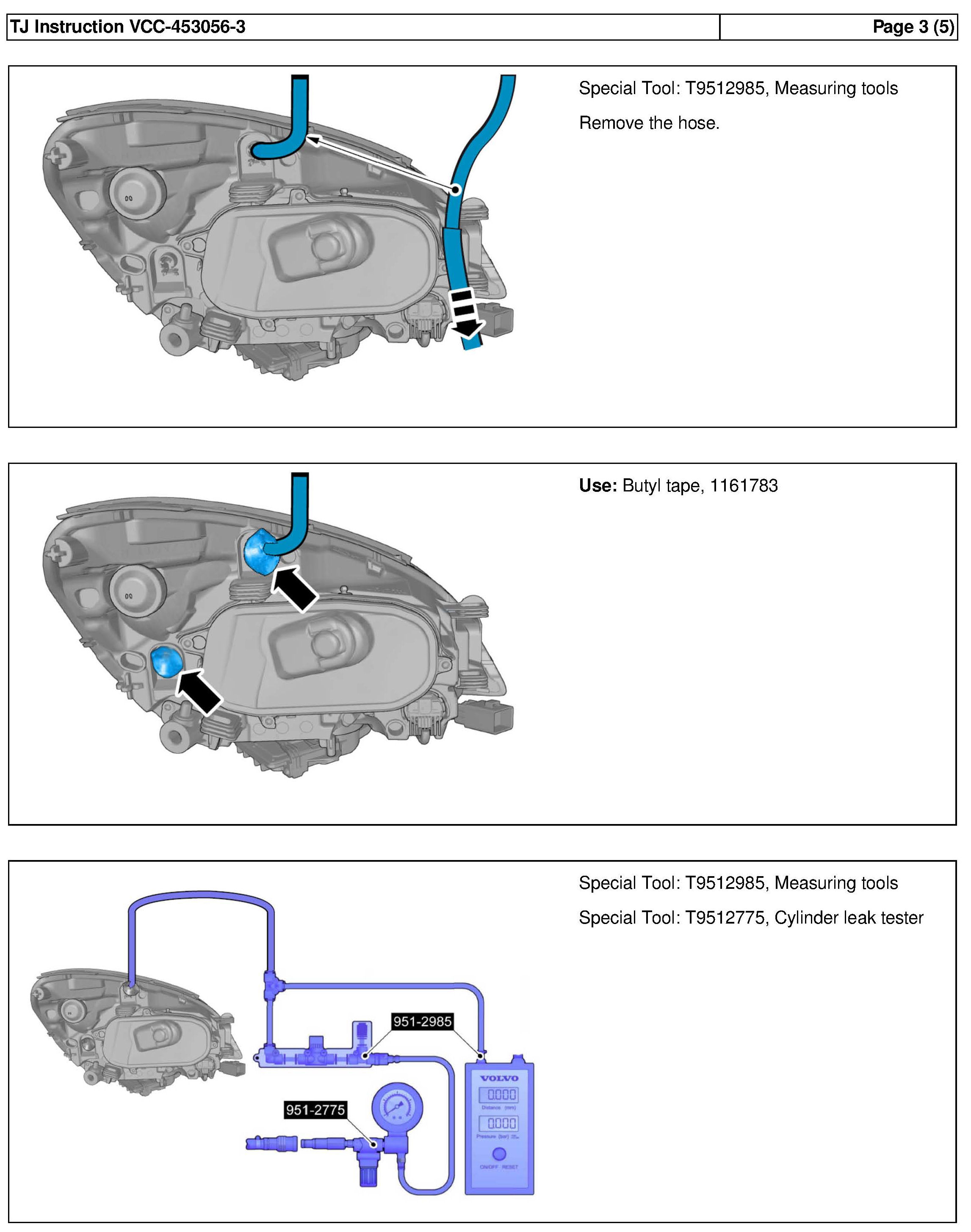

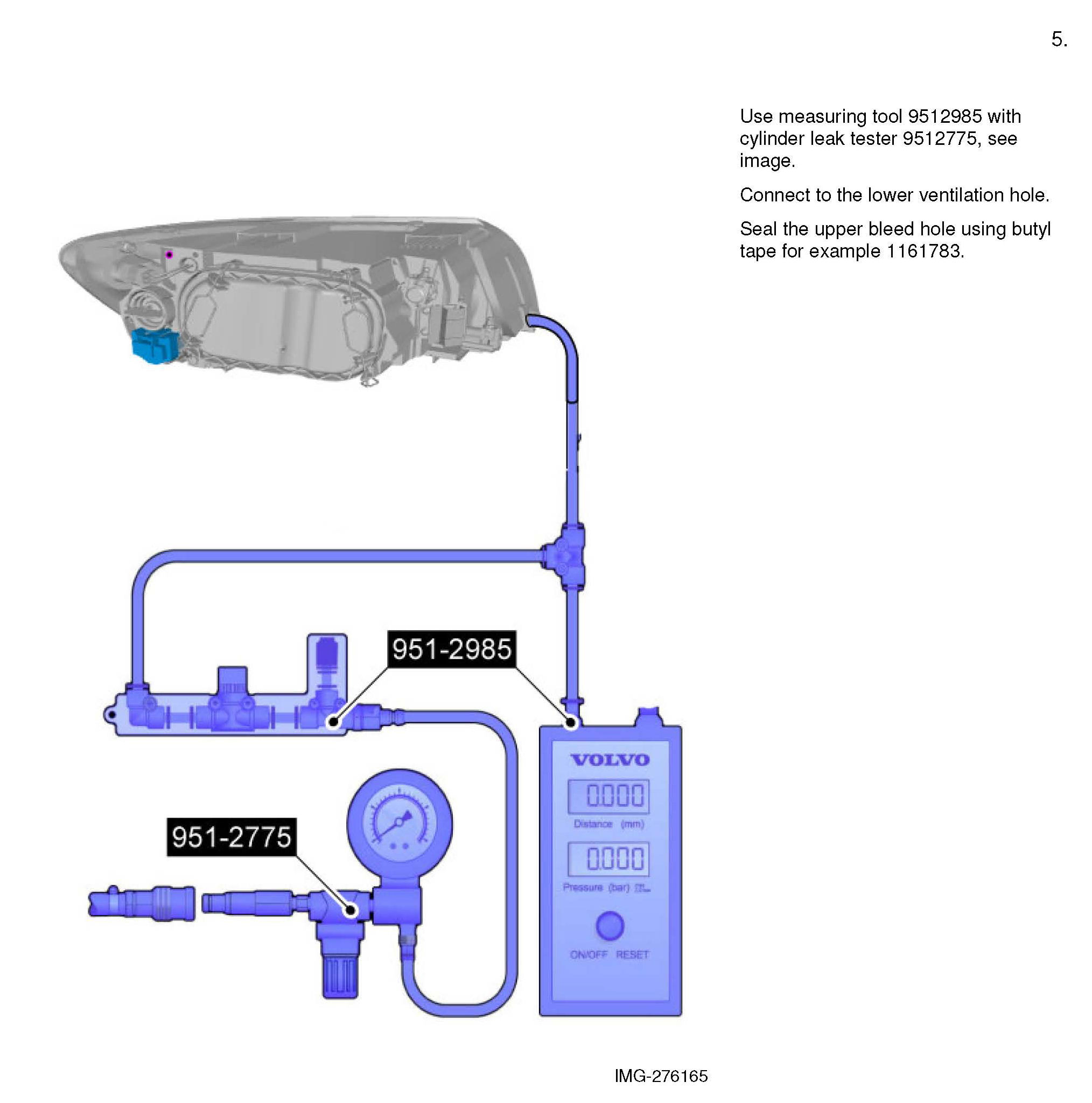

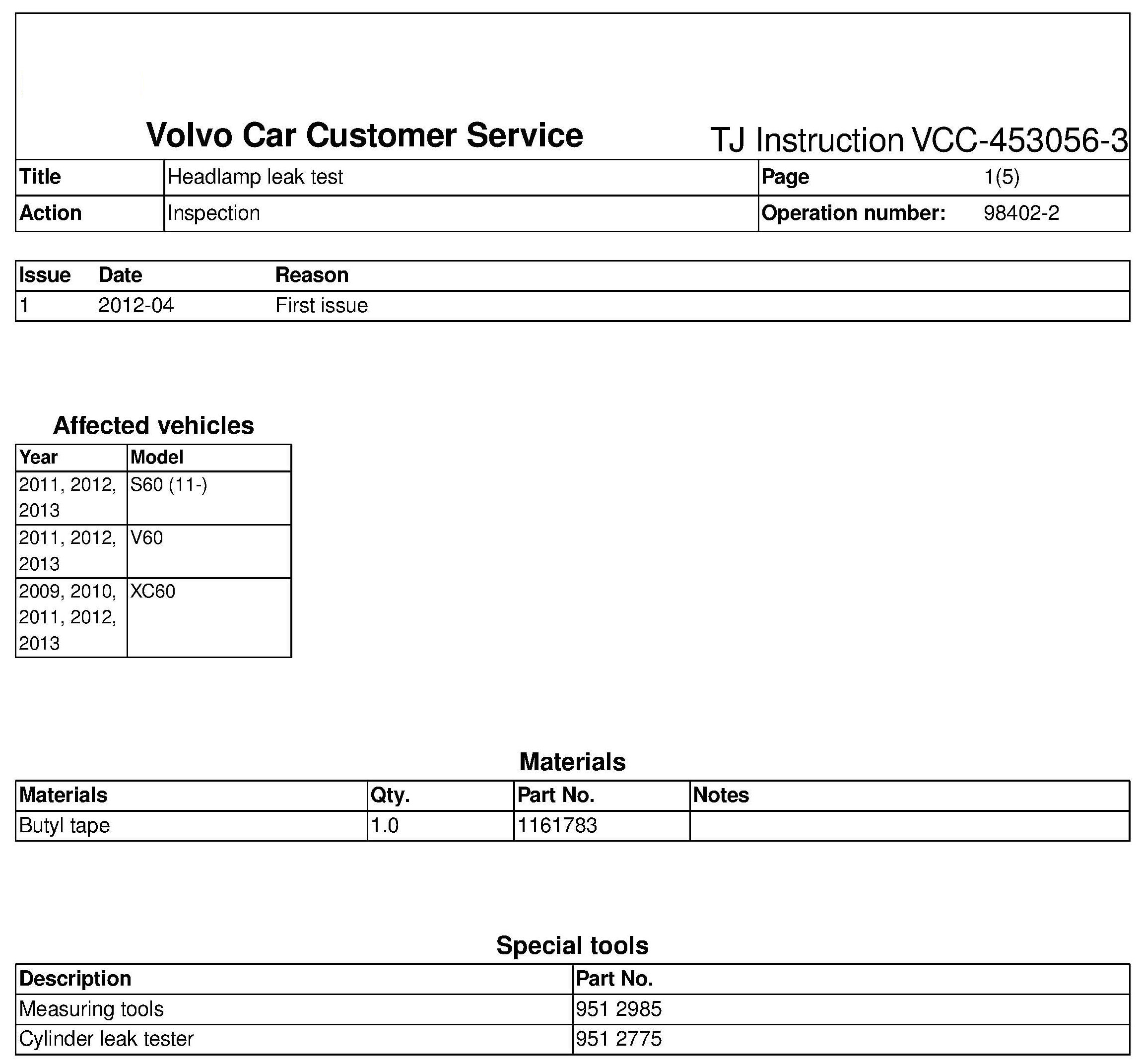

If the condensation does not clear, perform the headlamp leak test according to attached instructions.
Inspect the headlamp for damages after removal.

If a leakage is found: Replace the headlamp assembly according to VIDA.

VSTG OPERATION NUMBER:
Operation number *35203-2* - **Headlamp replace** - "See VSTG"
*98402-2* - **Headlamp leak test** - "0.4 hrs"

- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01
- Labor times are valid at the time of release and are subject to change.

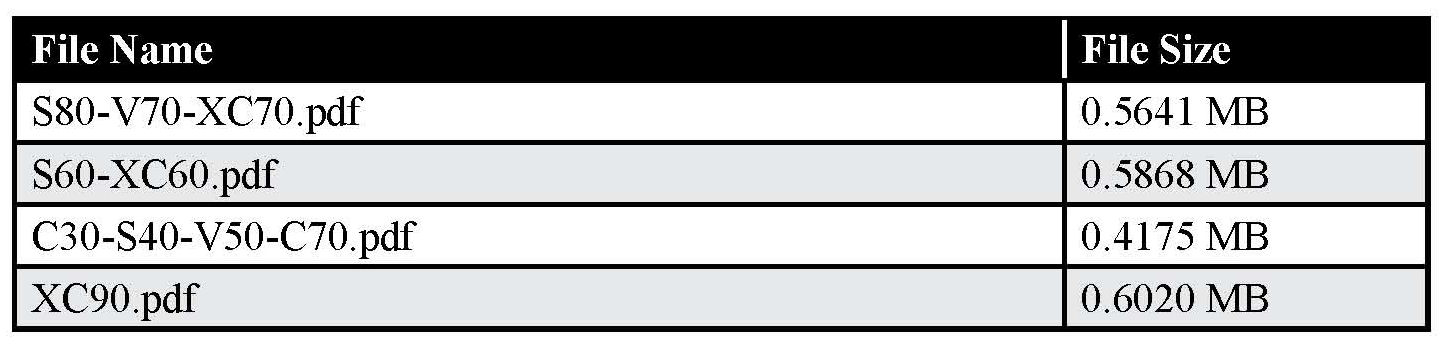

Continue to view Technical Journal attachments
