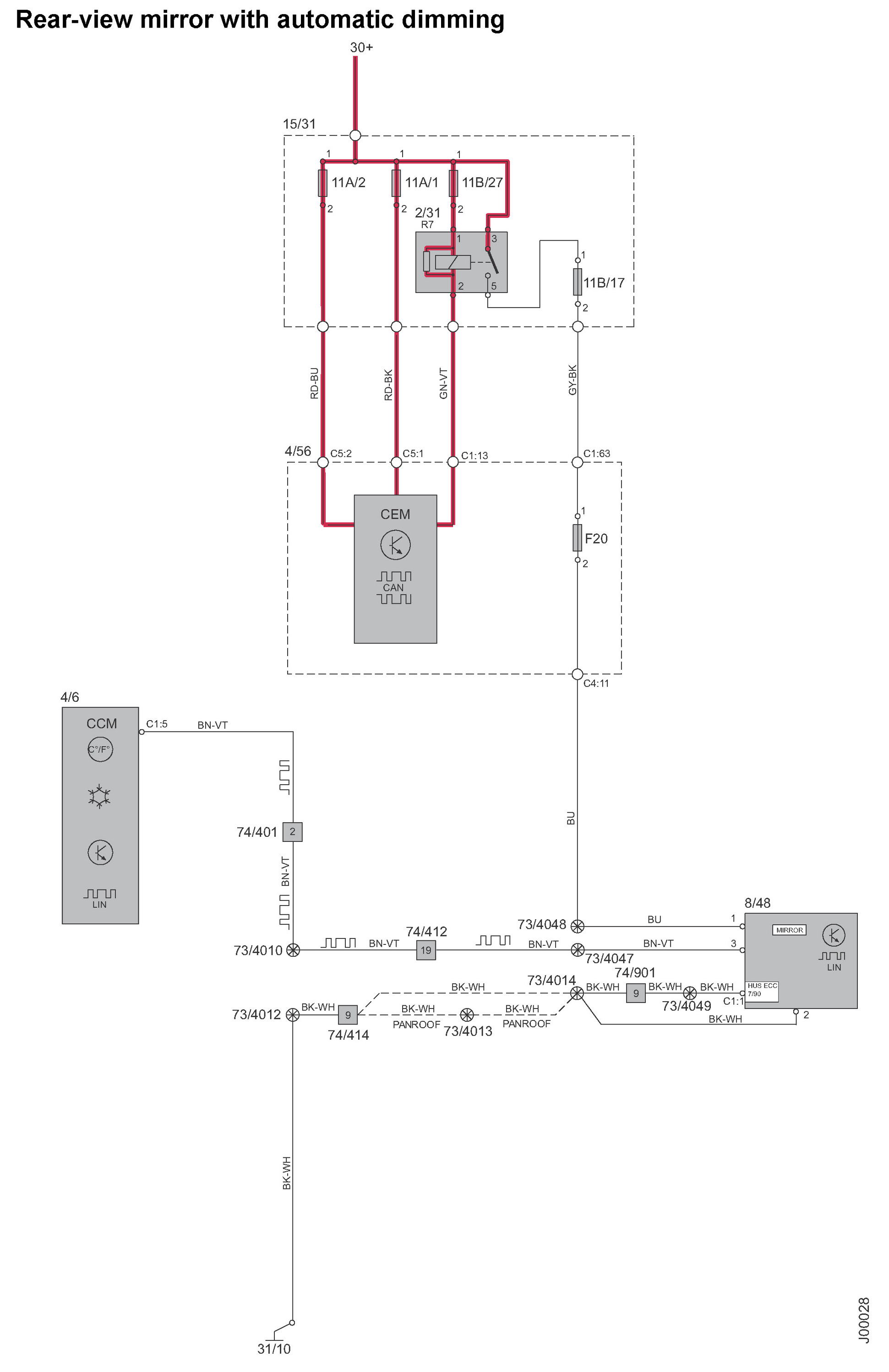

Rear-View Mirror With Automatic Dimming



Rear-View Mirror With Automatic Dimming







Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
