Body - Outer Door Handle May Not Return To Original Position

Technical Journal

TITLE:
Adjustment to door handles

CAR MARKET:
United States and Canada

ISSUING DEPARTMENT:
Technical Service

REF NO:
TJ 25129

ISSUE DATE:

YEAR
2013

MONTH
01

DAY
18

PARTNER:
3 US 7510 Volvo Cars North America

FUNC DESC:
Lock, handle

FUNC GROUP:
8340

"Fixed Right - First Time"

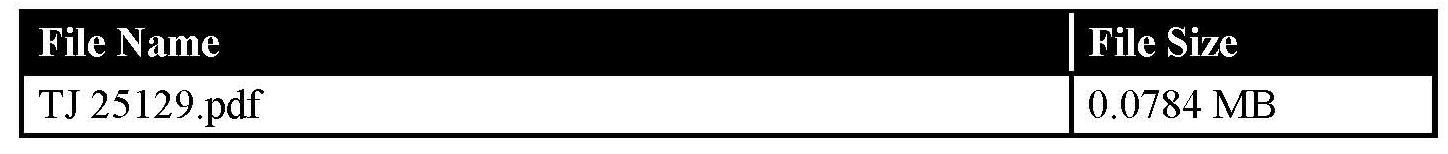

Attachment

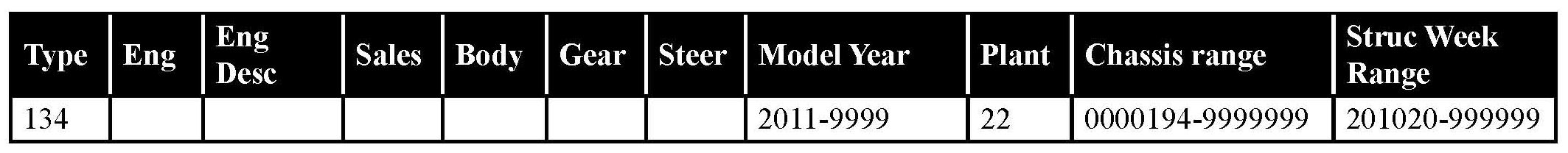

Vehicle Type

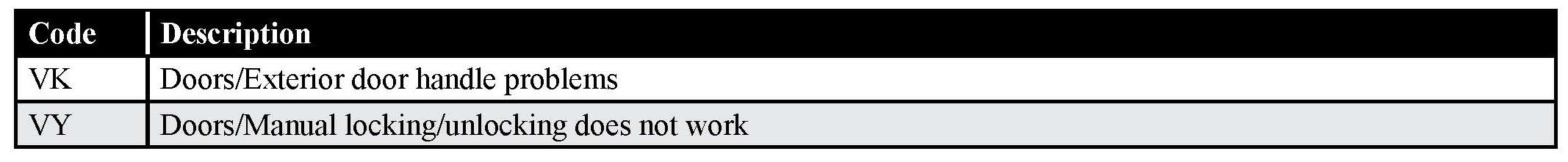

CSC Customer Symptom Codes

DTC Diagnostic Trouble Codes

Text

CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code

Note! If using a printed copy of this Technical Journal, first check for the latest online version.

DESCRIPTION:
Depending on humidity and low temperature, there is a possibility that the outer door handle does not return fully in its original position after operation.

This does not affect the locking/unlocking!!

SERVICE:
In case of customer complaints, perform adjustment according to attachment.

VSTG OPERATION NUMBER:
Operation number *98354* - **Side door handle adjustment (FOR ALL 4 DOORS!!).** - "0.9 hrs".

- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01
- Labor times are valid at the time of release and are subject to change.

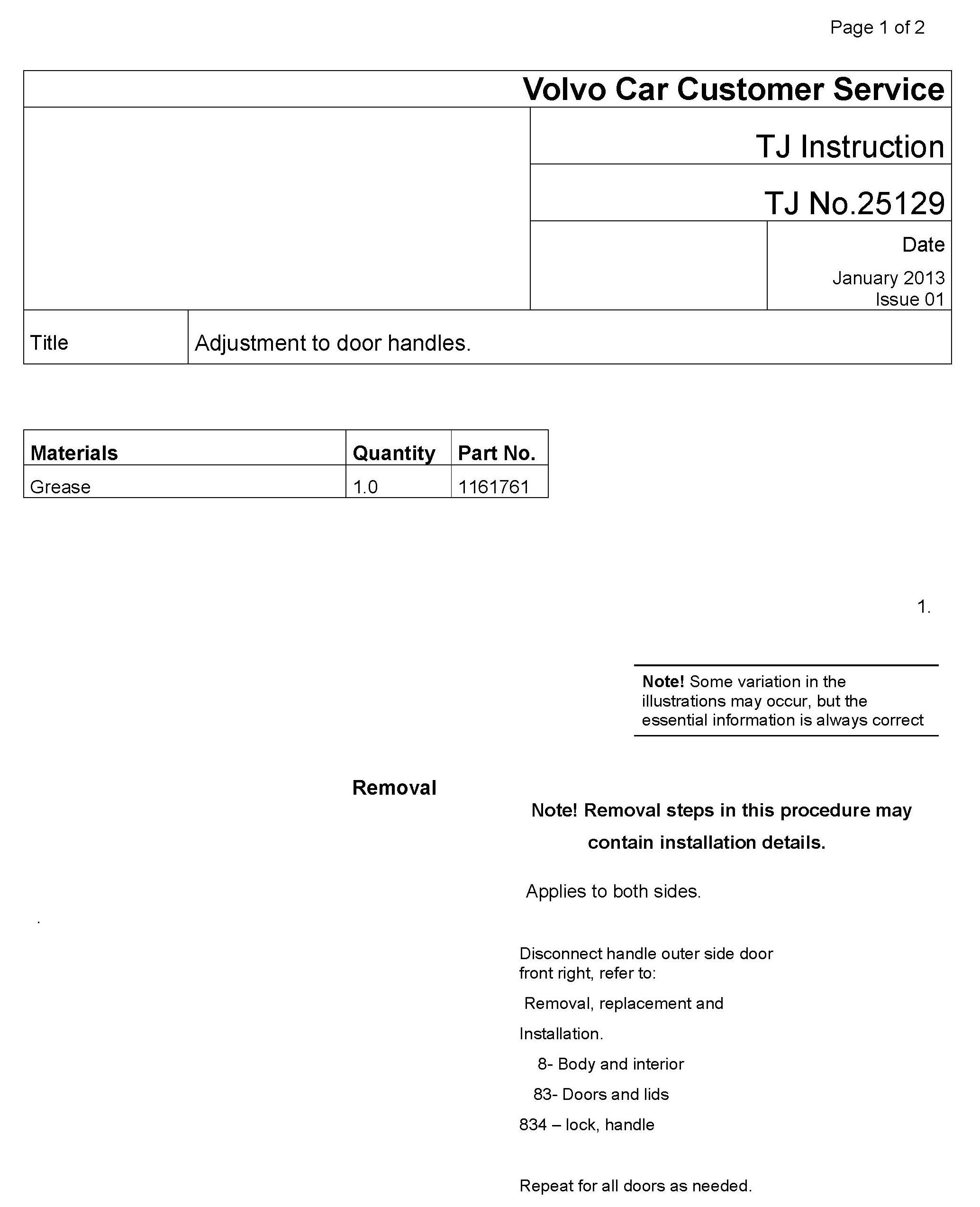

To view TJ attachment
