Entertainment System - Difficult To Open Rear Seat DVD Player

Technical Journal

TITLE:
RSE Opening Mechanism - Modification

CAR MARKET:
United States

ISSUING DEPARTMENT:
Technical Service

REF NO:
TJ 25377

ISSUE DATE:

YEAR
2012

MONTH
09

DAY
18

PARTNER:
3 US 7510 Volvo Cars North America

FUNC DESC:
8826

FUNC GROUP:
Head restraint

"Fixed Right - First Time"

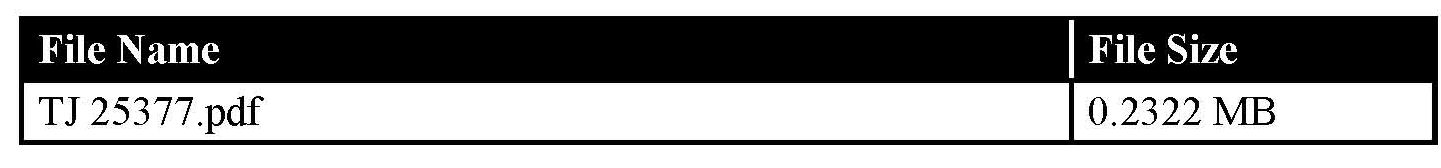

Attachment

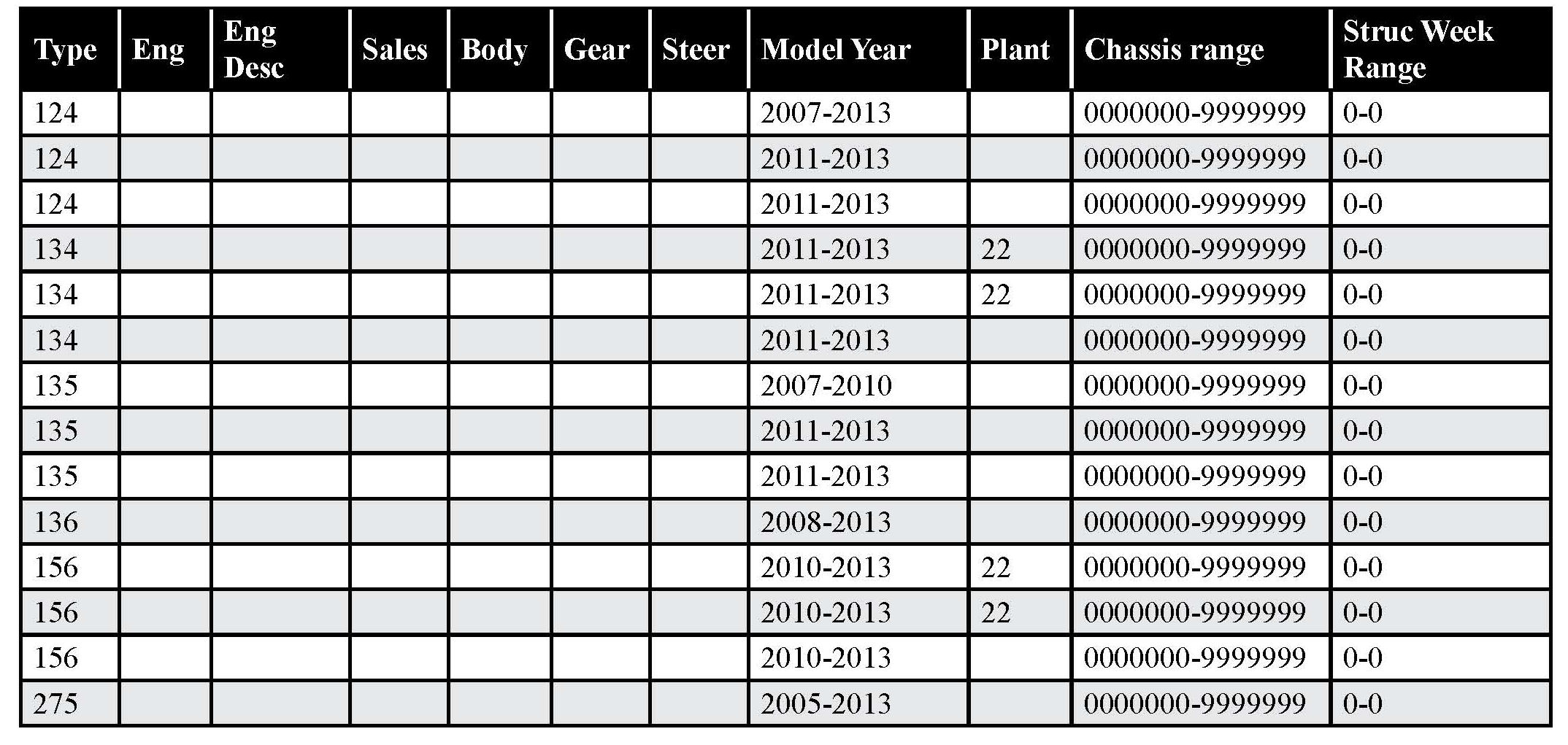

Vehicle Type

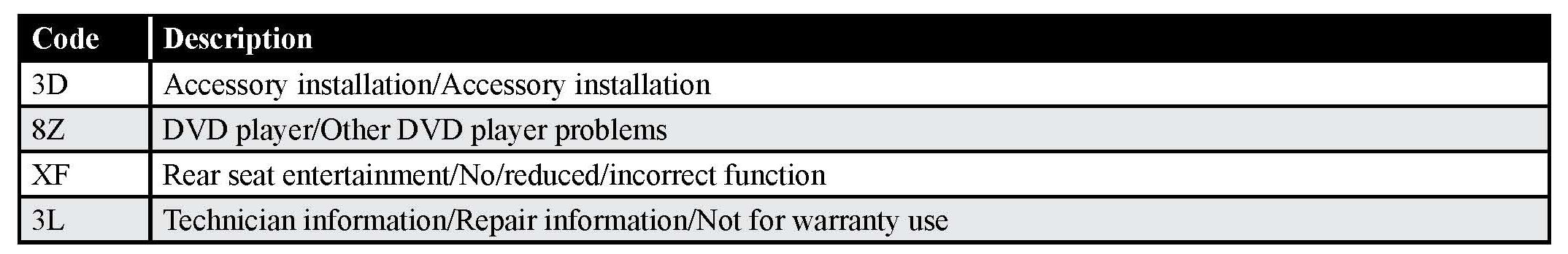

CSC Customer Symptom Codes

Text

CSC = Customer Symptom Code

DTC = Diagnostic Trouble Code

RSE = Rear Seat Entertainment

Note! If using a printed copy of this Technical Journal, first check for the latest online version.

DESCRIPTION: Modification of the lid for the rear DVD player (RSE) due to problems with extreme opening force.

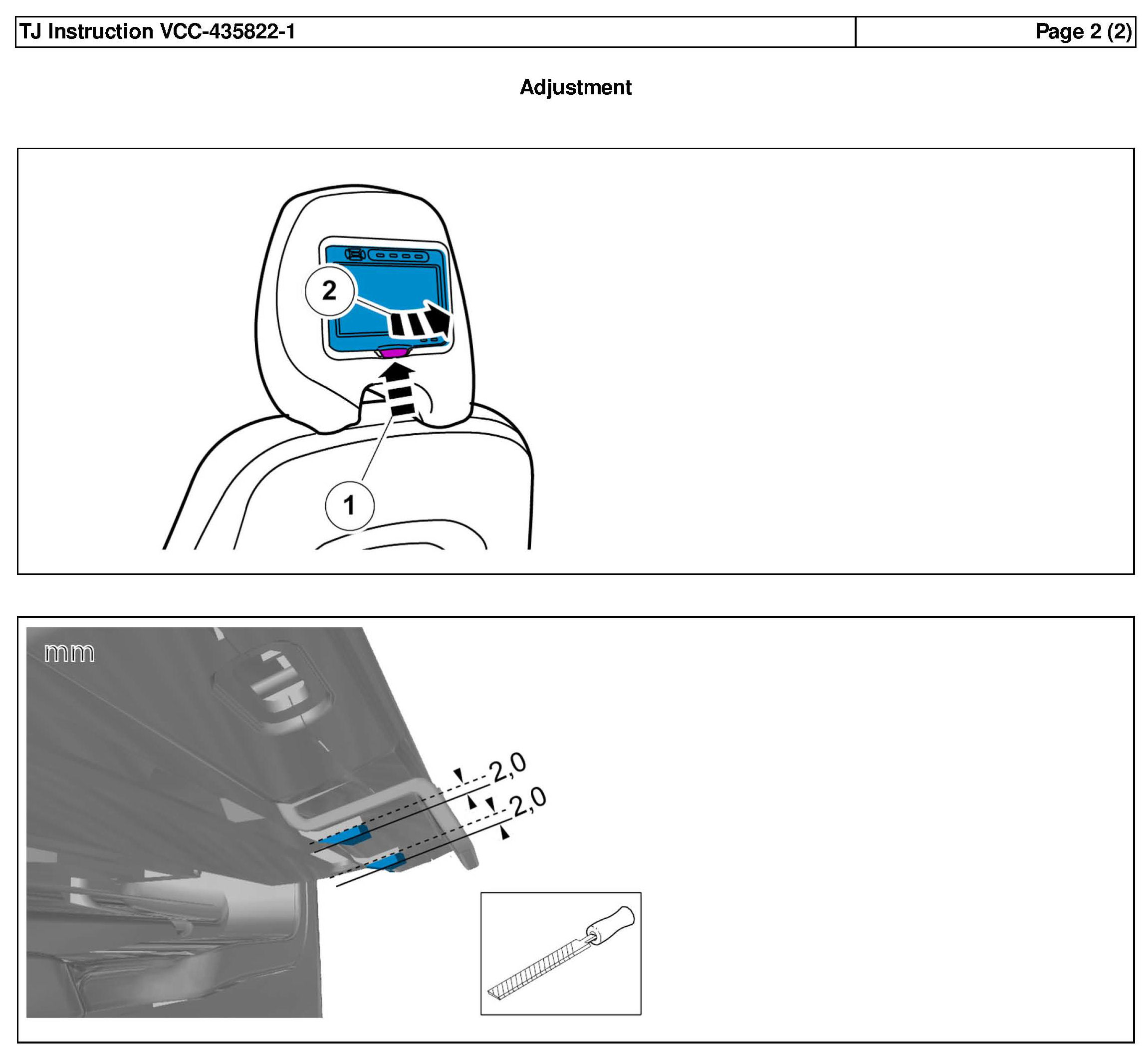

SERVICE: Modify rear DVD player (RSE), according to attached instruction.

VOLVO STANDARD TIMES GUIDE (VSTG) INFO:
Operation number *99400-2* - **General check/adjust ** - "0.1 hrs"
-Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01

-Labor times are valid at the time of release and are subject to change.








To view TJ attachment continue:
