Firewall: Service and Repair

This article uses a picture philosophy in the instructions for mechanical work methods. The instructions focus on the pictures and include text only if it is impossible to show the work method in the pictures. For further information, refer to: Description and Operation

Secondary Bulkhead Panel RH

Operation Number:
81145-2

Removal

NOTE: Removal steps in this procedure may contain installation details.

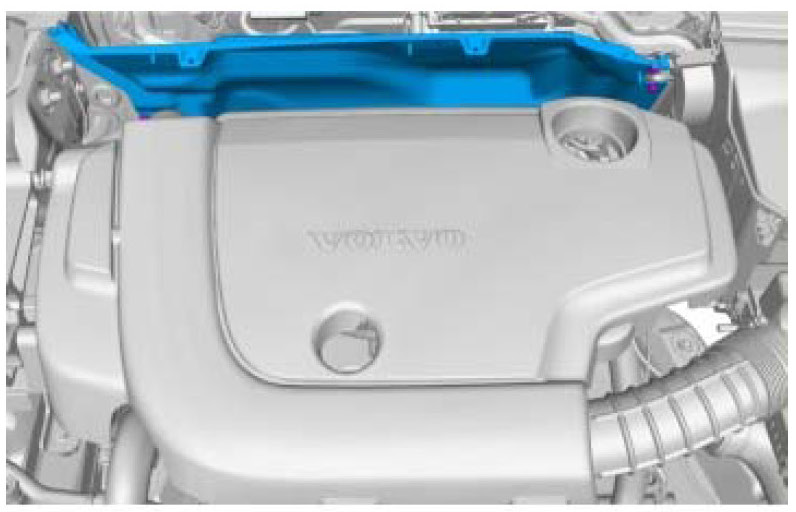

Remove the plenum cover

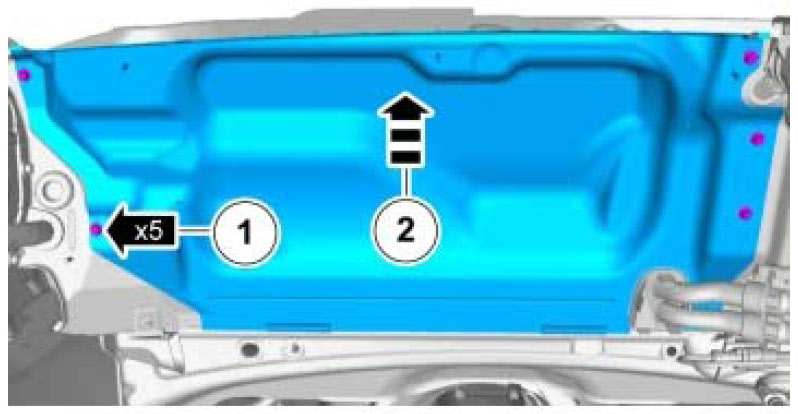

Torque: M6, 10 Nm







Installation

To install, reverse the removal procedure.
