Front Bumper Reinforcement: Service and Repair

This article uses a picture philosophy in the instructions for mechanical work methods. The instructions focus on the pictures and include text only if it is impossible to show the work method in the pictures. For further information, refer to: Description and Operation

Crossmember Bumper Front

Operation Number:
86110-3

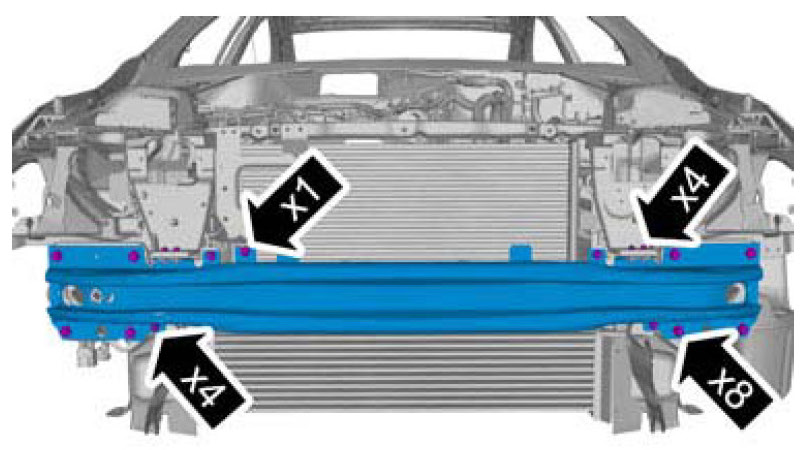

Removal and Installation

Remove casing bumper front







1. Torque: M6, 10 Nm
2. Torque: M10, 50 Nm
