Home >> Volvo >> 2013 >> C70 T5 L5-2.5L Turbo VIN 67 B5254T7 >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Diagrams >> Electrical Diagrams >> Accessory Electronic Module (AEM) - II

Accessory Electronic Module (AEM) - II

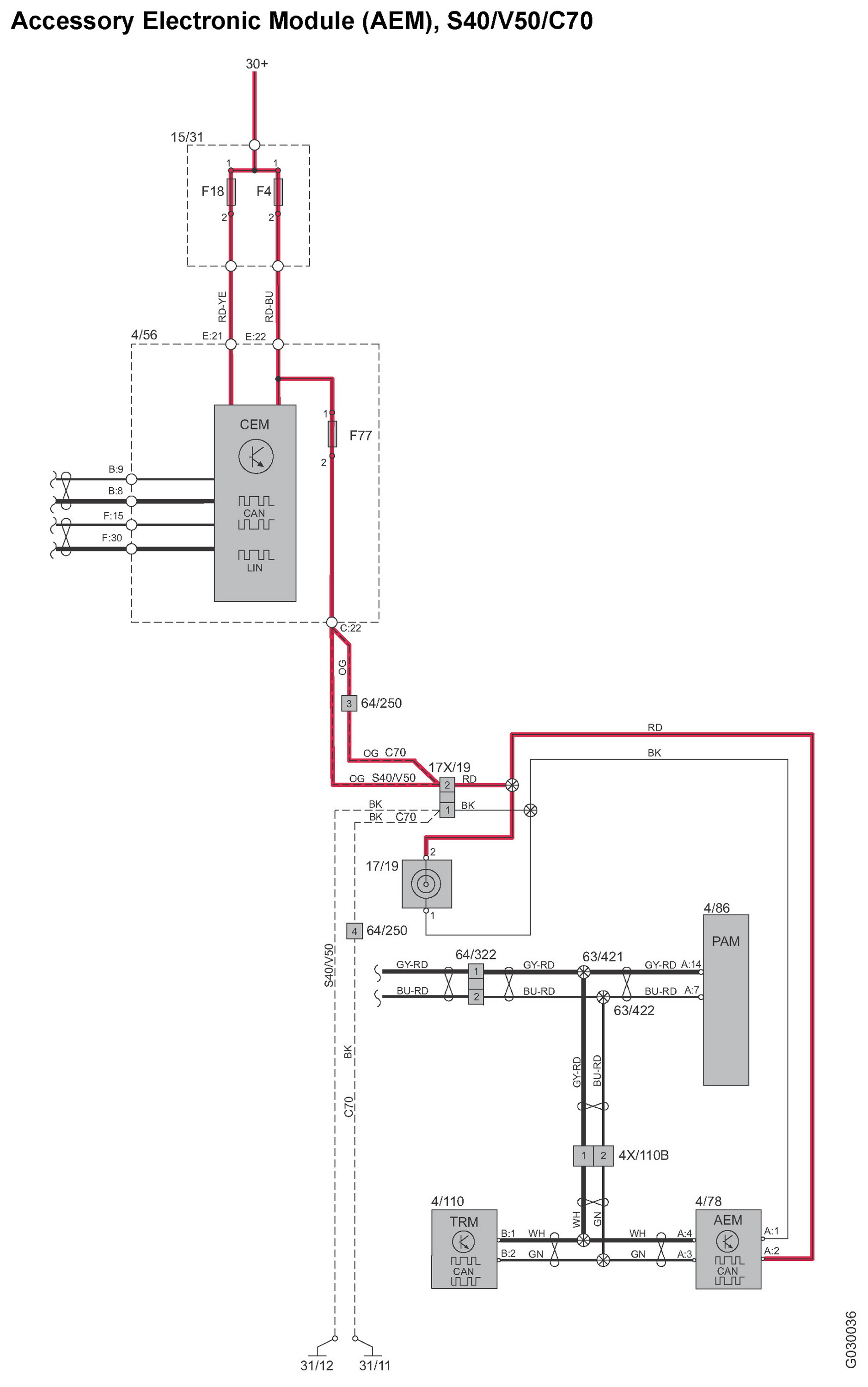

Accessory Electronic Module (AEM), S40/V50/C70







Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
