Home >> Volvo >> 2013 >> C30 R Design L5-2.5L Turbo VIN 67 B5254T7 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessories and Optional Equipment >> Cellular Phone >> Bluetooth Handsfree With AEM, Internal Amplifier

Bluetooth Handsfree With AEM, Internal Amplifier

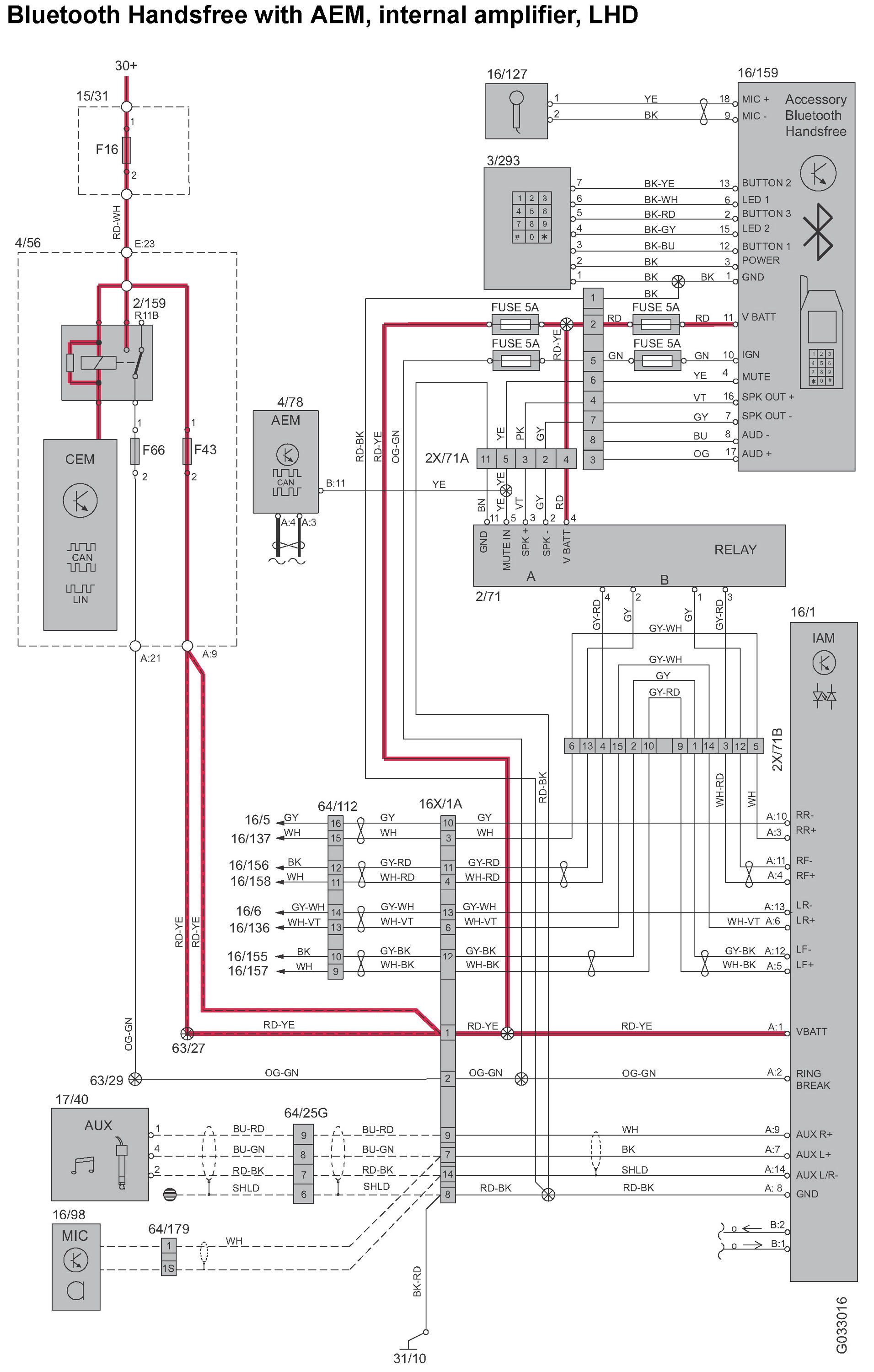

Bluetooth Handsfree With AEM, Internal Amplifier, LHD







Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
