Home >> Volvo >> 2013 >> C30 R Design L5-2.5L Turbo VIN 67 B5254T7 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 64/48

64/48

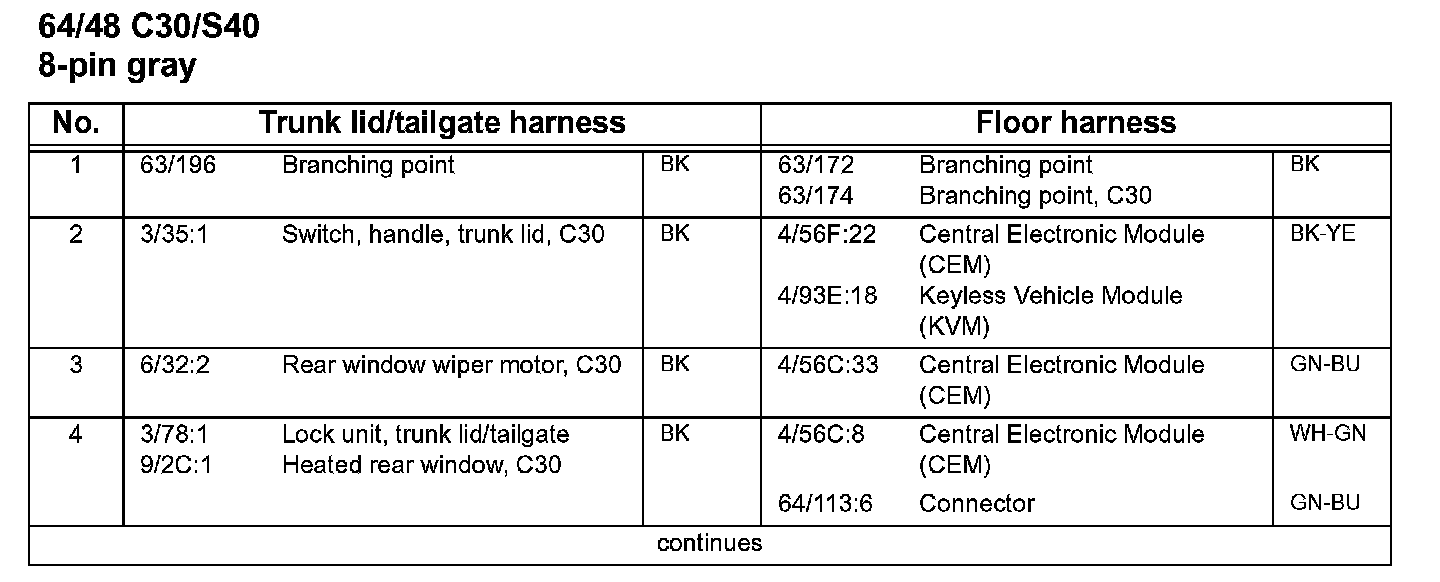

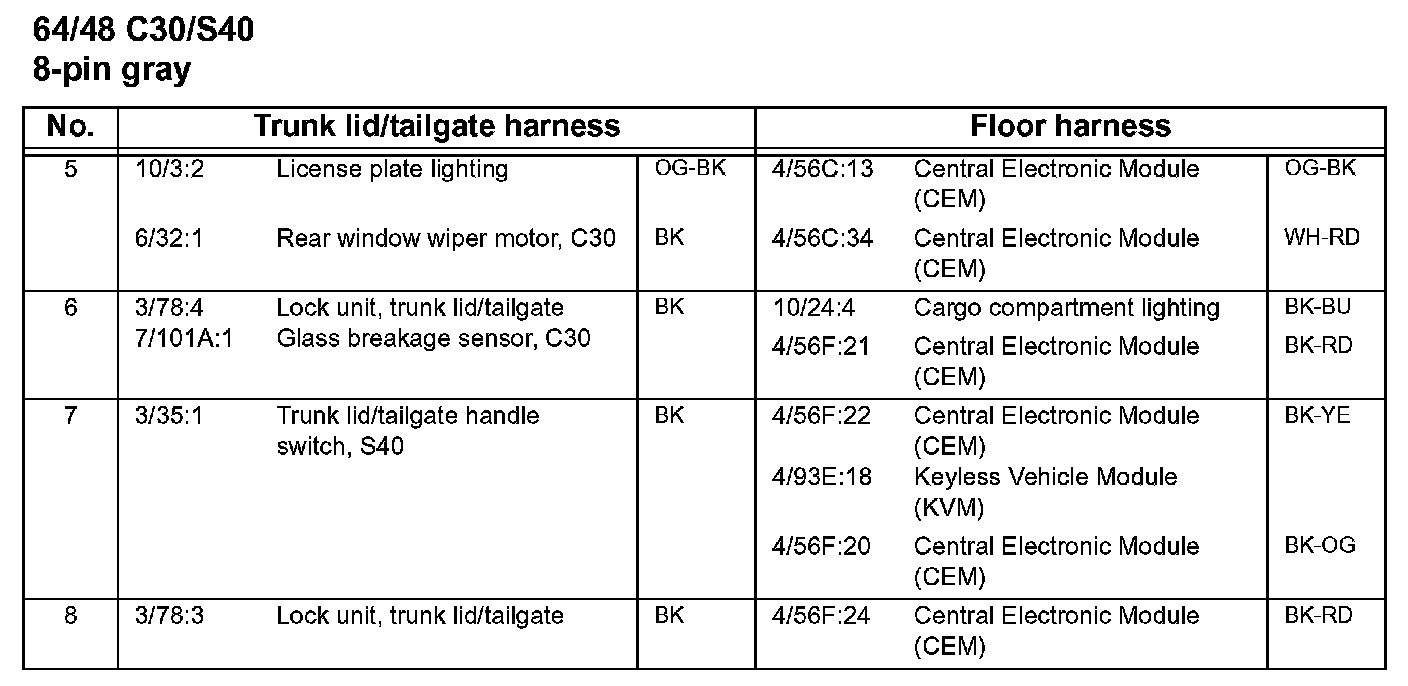

64/48 C30/S40
