Volvo
>>
2013
>>
C30 R Design L5-2.5L Turbo VIN 67 B5254T7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
64/41

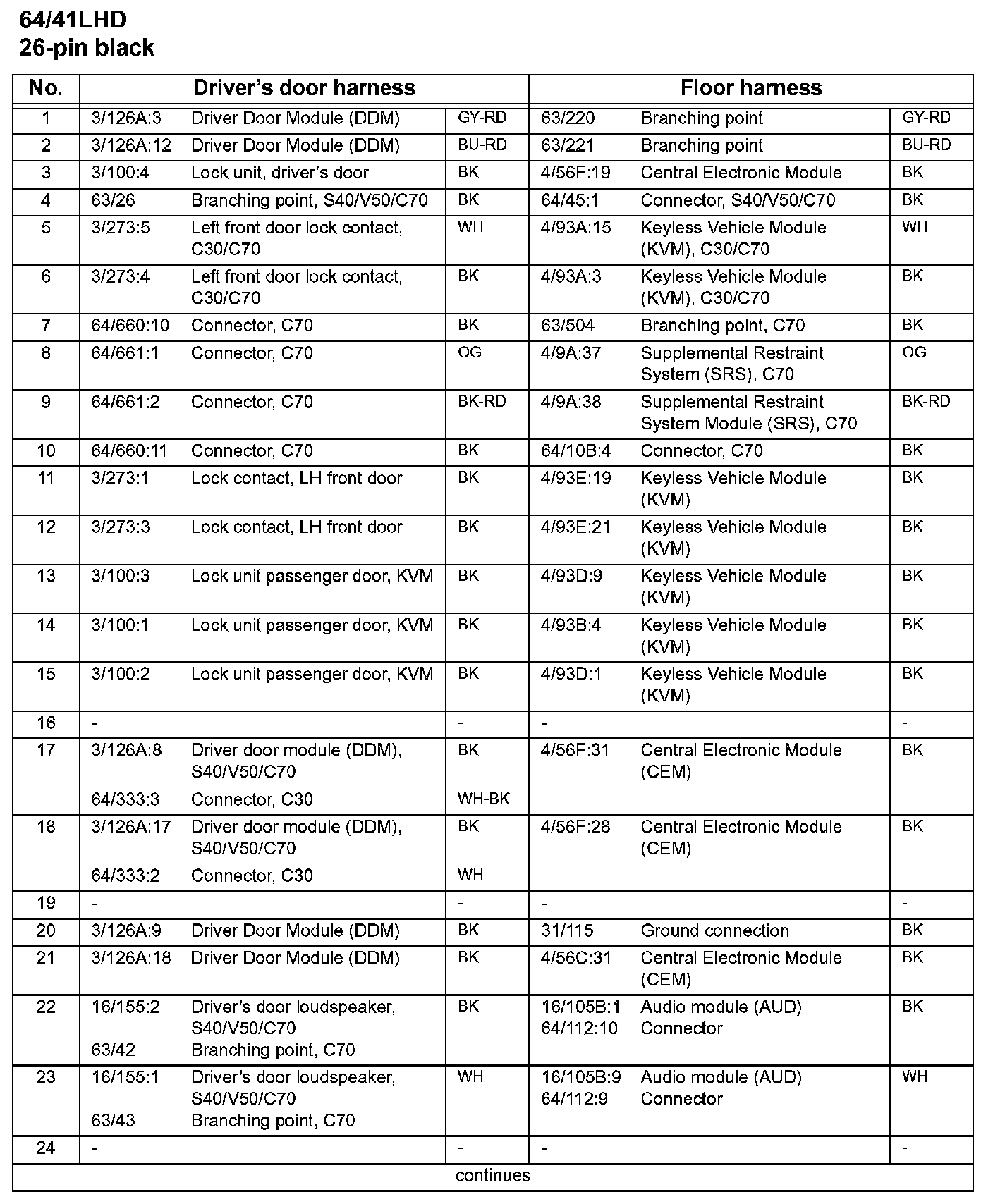

64/41

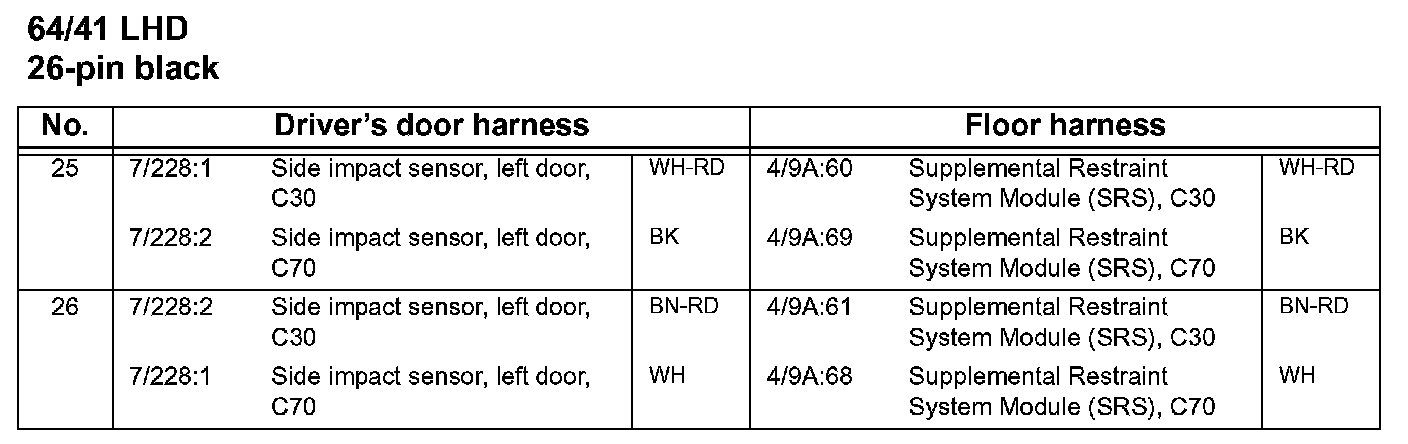

64/41 LHD
