Home >> Volvo >> 2013 >> C30 R Design L5-2.5L Turbo VIN 67 B5254T7 >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Diagrams >> Electrical Diagrams

Electrical Diagrams

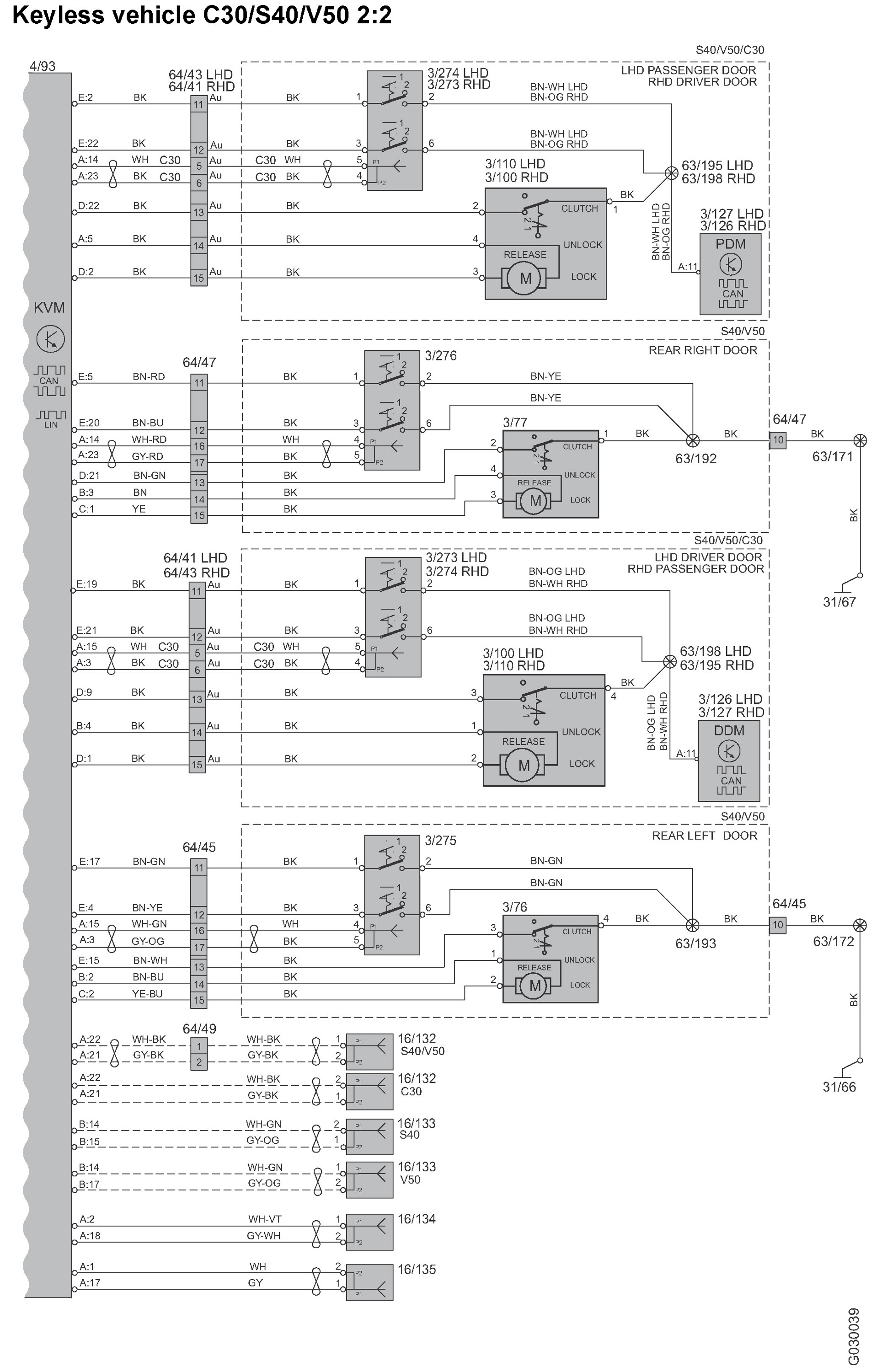

Keyless Vehicle C30/S40/V50










Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
