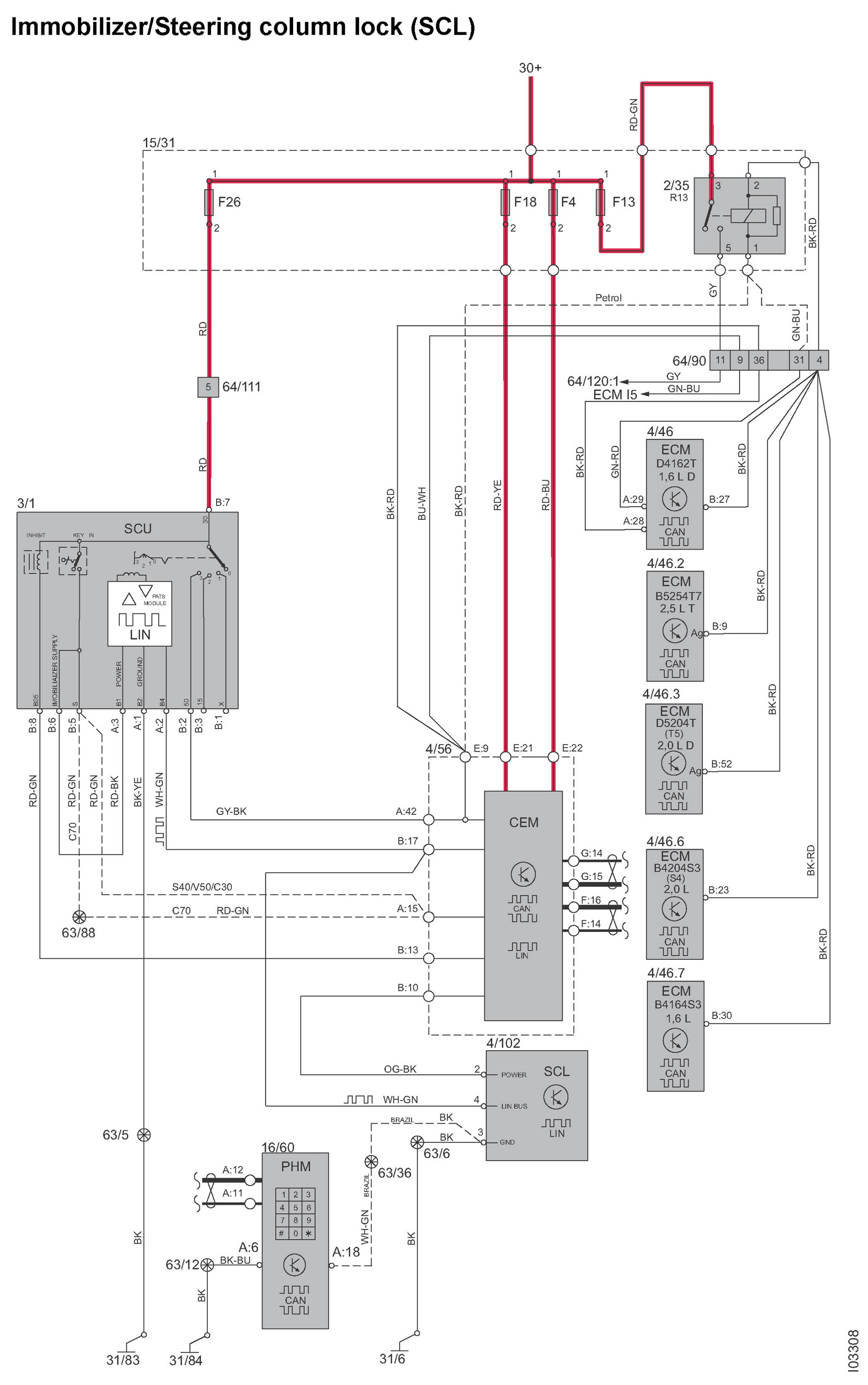

Immobilizer/Steering Column Lock (SCL)



Immobilizer/Steering Column Lock (SCL)







Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
