Transmission Input Speed Sensor, Input Shaft, Transaxle (TSS)

Transmission input speed sensor, input shaft, transaxle (TSS)

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

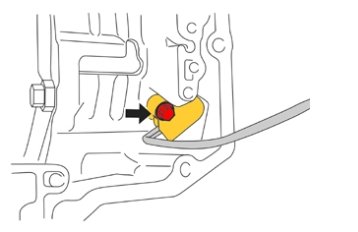

Removal

Remove the control system. Refer to: Control systems, B6324S5, TF-80SC AWD, B6324S5, TF-80SC Control Systems.

Installation





Tightening torque: M6.

Install the control system. Refer to: Control systems, B6324S5, TF-80SC AWD, B6324S5, TF-80SC Control Systems.
