Bevel Gear, Replacing

Operation number: 43330-2

Bevel gear

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.






Note! Note the position of the component before removal.

999 5743 Counterhold 999 5743 Counterhold

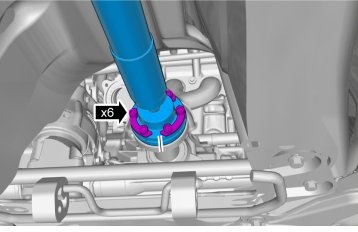

Tightening torque: Propeller shaft (CV joint, 6 screws) Refer to: Tightening torque Tightening Torque





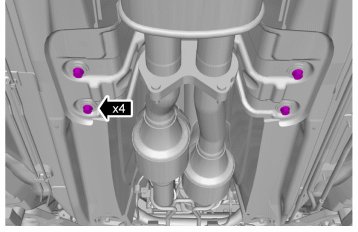

Tightening torque: M8 Refer to: Tightening torque Tightening Torque

Remove the starter motor. Refer to: Starter motor, B6324S5 Service and Repair

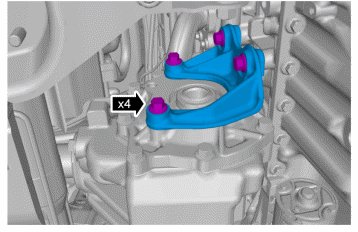

Tightening torque: Bevel gear bracket. Refer to: Tightening torque Tightening Torque

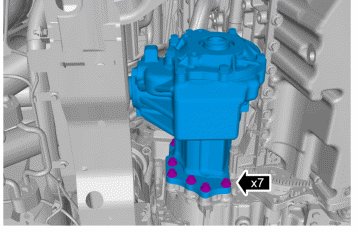

Tightening torque: Bevel gear. Refer to: Tightening torque Tightening Torque.

Installation

To install, reverse the removal procedure
